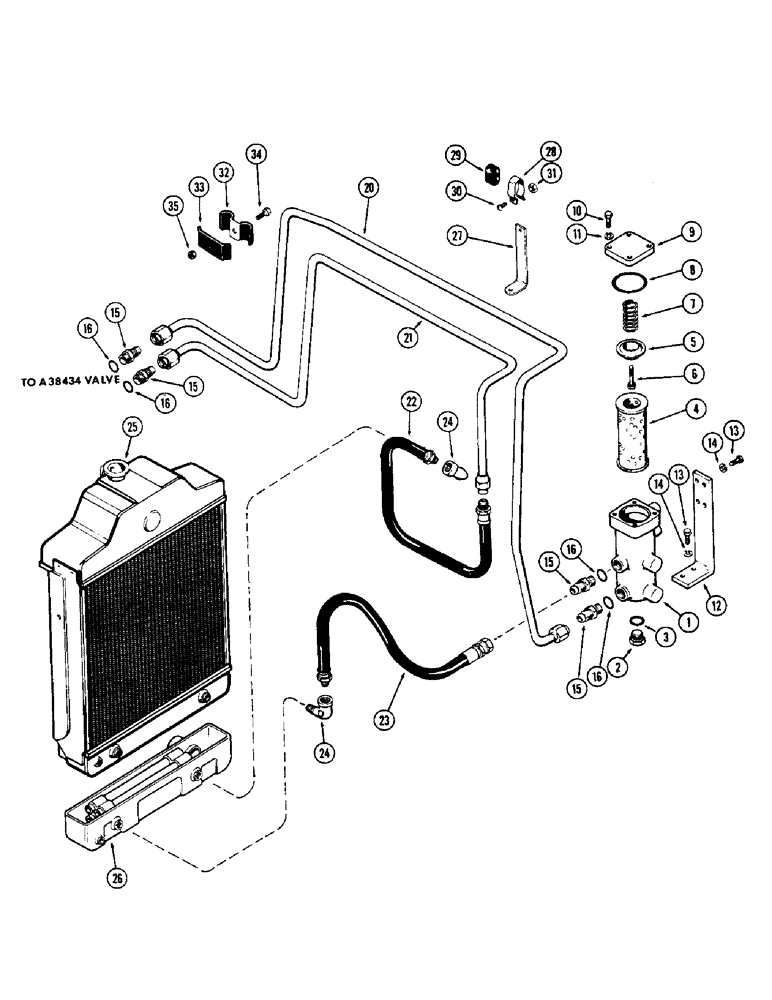

Запчасти Case 580B (188) - OIL FILTER AND COOLER, POWER SHUTTLE (06) - POWER TRAIN

1

A38416

HOUSING

- oil filter

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Assy, Housing, Incl. Ref. 3 Hex Hd, 7/8"-14 ORB

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

4

A51463

FILTER

ELEMENT - oil filter (25 Micron) (1st used tractor serial no. 8709200)

1шт.

4

A39578

HYDRAULIC OIL FILTER

ELEMENT - oil filter (10 Micron) (Used prior to tractor serial no. 8709200) (Order A51463)

1шт.

5

A36523

CAP

- element retainer

1шт.

6

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

7

A29993

VALVE SPRING

SPRING - retainer, element

1шт.

8

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - 2-3/8 x 2-5/8 x 1/8"

1шт.

9

G1248

COVER

CAP - 3/8 x 1" N.C. hex., cap

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cap Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

12

A38223

BRACKET

- filter housing support

1шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

15

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - for 5/8" tube, Inlcudes: Ref. 16

4шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

20

A38658

TUBE

- input (A38434 valve to oil filter)

1шт.

21

A38659

TUBE

- return (Oil cooler to A38434 valve)

1шт.

22

A37586

HOSE,12.70 mm ID x 485.60 mm

RADIATOR HOSE, , to Return Tube 12.70 mm ID x 485.60 mm

1шт.

23

A38417

HOSE

- filter to cooler, 17-13/32" long

1шт.

24

221-1413

ELBOW,90 Degree, 3/8"-18, NPT

- street, 3/8" P.T., 90 degrees (Not required)

2шт.

25

A39345

RADIATOR

ASSY., Inlcudes: Ref. 26

1шт.

26

G45484

RESERVOIR

TANK - oil cooler (Repairs only)

1шт.

27

A37587

BRACKET

- tube clamp (w/gas engine) (5-3/4" high)

1шт.

27

A37588

BRACKET

- tube clamp (w/diesel engine) (5-9/64" high)

1шт.

28

A37590

CLAMP

- tube

2шт.

29

G46835

GROMMET

- rubber, tube clamp

3шт.

30

174-203

SCREW,Phil Rnd Hd, #10 - 32 x 3/4"

- #10-32 x 3/4" rd. hd. Phillips

2шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. Keps, brass

2шт.

32

A38391

CLAMP

- tubes

1шт.

33

A38392

STRAP

- tubes

1шт.

34

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

35

131-2

NUT,1/4"-20, GB

NUT - 1/4" N.C. elastic stop

1шт.
