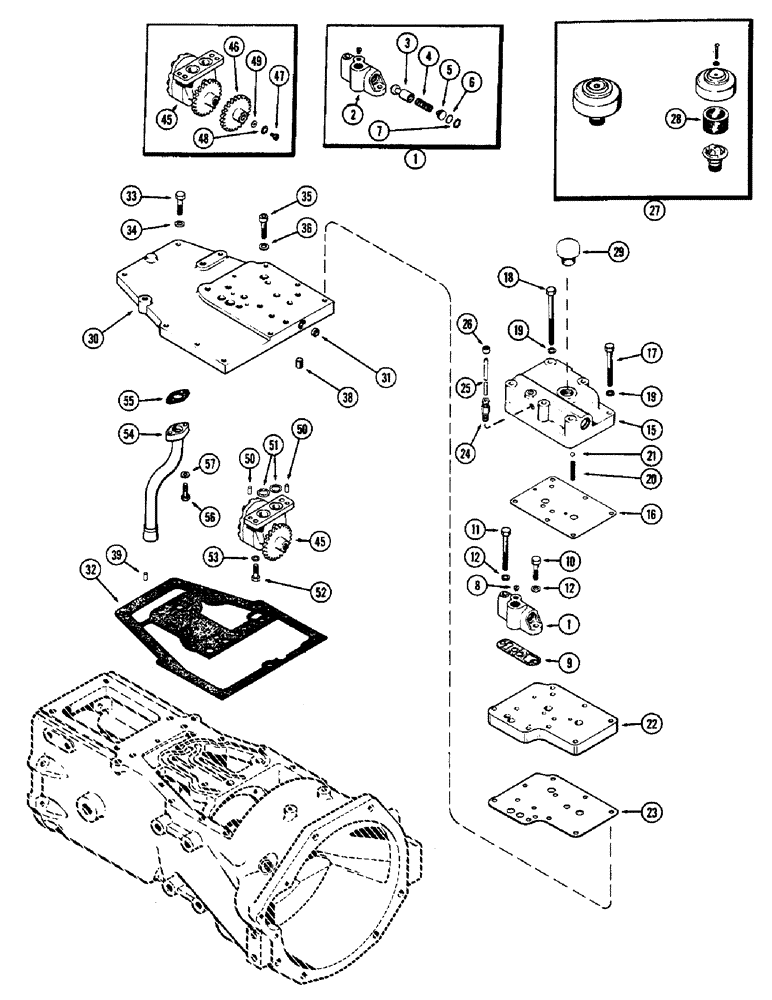

Запчасти Case 580B (186) - PUMP AND VALVE ADAPTER (06) - POWER TRAIN

1

A36898

VALVE

ASSY. - regulator, Inlcudes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order ref. 1)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - (Order ref. 1)

1шт.

4

A30106

VALVE SPRING

SPRING - valve spool

1шт.

5

G16779

CAP

PLUG - end

1шт.

6

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - 9/16 x 3/4 x 3/32"

1шт.

7

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , end plug 0.75", Int, #75

1шт.

8

221-1840

PLUG

- 1/8" P.T. sckt. hd.

1шт.

9

G46824

GASKET

- regulator valve

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex.

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

1шт.

12

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

15

A38434

VALVE

ASSY. - control (See Figure 192)

1шт.

16

A38030

GASKET,0.79mm Thk

- control valve

1шт.

17

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex.

1шт.

18

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- 3/8 x 4-1/4" N.C. hex.

3шт.

18

13-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

2шт.

19

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

6шт.

20

A38489

SPRING

- detent, valve spool

1шт.

21

211-11

BALL,3/8" Dia

- detent, valve spool (.) 3/8" Dia

1шт.

22

A38028

PLATE

- oil distribution

1шт.

23

A38029

GASKET,0.79mm Thk

- distribution plate

1шт.

24

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR - tube to valve

1шт.

25

G46292

TUBE,0.125" OD x 28" L

- oil pressure, valve to gauge

1шт.

26

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

COUPLING - pressure tube to gauge

1шт.

27

A9238

BREATHER

ASSY. - (w/service element) (Order A75179), Inlcudes: Ref. 28

1шт.

28

A10059

FILTER, ELEMENT

ELEMENT - filter

1шт.

29

A75179

BREATHER

ASSY. - oil (w/nylon washable filter)

1шт.

30

A38386

HOUSING

- adapter, valve & pump (w/o hydraulics)

1шт.

31

41-1013

PLUG,Cup, 13/16"

- 53/64" cup type

2шт.

32

A37517

GASKET,0.79mm Thk

- adapter housing

1шт.

33

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex.

6шт.

33

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

1шт.

34

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

7шт.

35

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - 3/8 x 1-3/4" N.C. sckt. hd.

1шт.

36

195-401

SEALING WASHER,3/8"

WASHER - sealing, 3/8"

2шт.

38

A29426

AXLE PIN

PIN - dowel, front, 3/8 x 3/4"

1шт.

39

G10711

PIN

- dowel, rear, 1/2 x 3/4"

1шт.

45

A37570

PUMP

ASSY. - drive (See Figure 190)

1шт.

46

G16798

GEAR

- pump drive (Replaced G16913)

1шт.

47

165-101

HEX SOC SCREW,Prev Torque, 1/4" - 28 x 3/8"

SCREW - 1/4 x 3/8" N.C. hex. sckt. hd., locking

1шт.

48

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, 0.625", Int, #62

1шт.

49

G49045

WASHER

- retainer, drive gear

1шт.

50

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, pump mtg. 5/16 x 9/16"

2шт.

51

A7075

GASKET

GASKET -, Serial Range: pump-adapter

2шт.

52

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

53

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

54

A38034

TUBE

- suction, oil

1шт.

55

A38212

GASKET

- tube

1шт.

56

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

2шт.

57

92-5

LOCK WASHER,5/16"

2шт.
