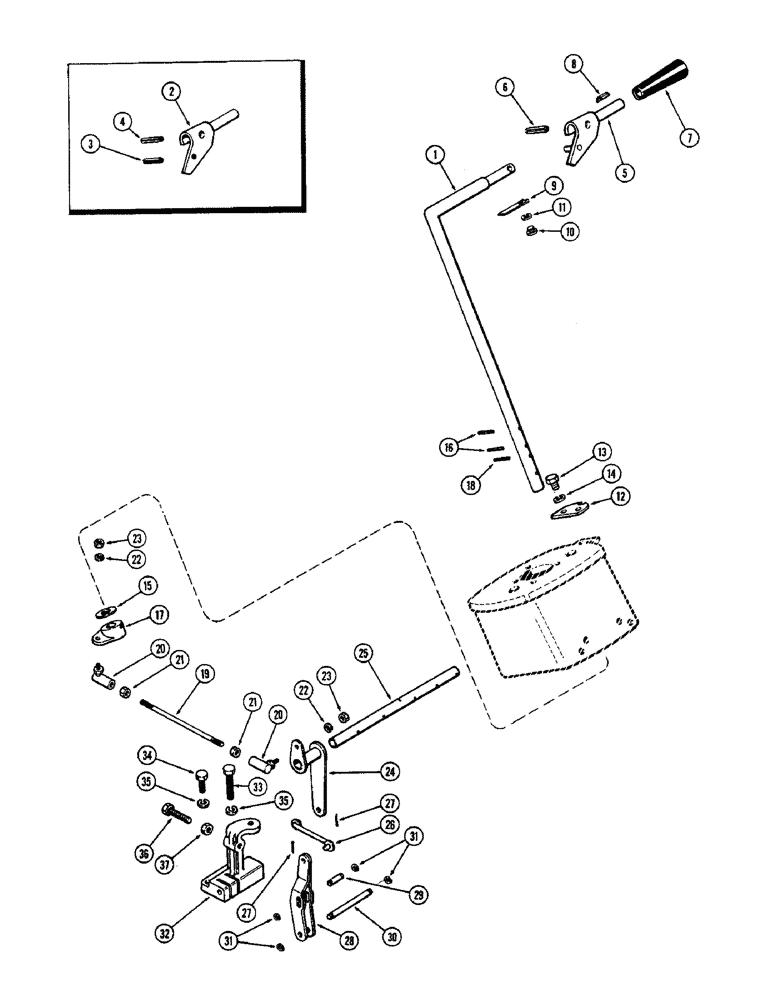

Запчасти Case 580B (184) - SHUTTLE LINKAGE, POWER SHUTTLE (06) - POWER TRAIN

1

A39326

LEVER

- shuttle shift

1шт.

2

A38293

HANDLE

- lever lock (Used prior to trac. SN. 8711102)

1шт.

3

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Used prior to tractor S/N 8711102) 1/8" x 3/4", Slotted

1шт.

4

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, , Used prior to tractor S/N 8711102 1/4" x 1", Slotted

1шт.

5

A51625

HANDLE

- lever lock (1st used trac. SN. 8711102)

1шт.

6

138-2053

PIN,1/4" x 1 1/4", Coiled

(1st used tractor S/N 8711102) 1/4" x 1 1/4", Coiled

1шт.

7

A37247

KNOB

- handle

1шт.

8

A51528

OIL SEAL

RING - retainer, knob

1шт.

9

A38296

SPRING

- leaf, shuttle lock

1шт.

10

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- #8 x 1/4" N.C. sltd. pan hd.

1шт.

11

195-8

WASHER

- 11/64 x 13/32 x 1/16"

1шт.

12

A135382

PLATE ASSY.

PLATE - shuttle lock (Replaces A38298)

1шт.

13

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

195-41

WASHER,5/8"

1шт.

16

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

2шт.

17

A37630

LEVER

- lower

1шт.

18

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

19

A35642

ROD

- handle lever to cross shaft

1шт.

20

A10329

BALL JOINT,1/4" - 28 x 1"

- rod

2шт.

21

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.C. hex

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

25-114

NUT,1/4"-28, G5

- 1/4" N.C. hex.

2шт.

24

A37631

LEVER

- cross shaft

1шт.

25

A37264

SHAFT

- cross, throttle & shuttle linkage

1шт.

25

A185091

SHAFT

- cross, throttle & shuttle linkage

1шт.

26

G30260

LINK

- cross shaft to spool lever

1шт.

27

132-24

COTTER PIN,3/32" x 1/2"

PIN - cotter, 3/32 x 1"

2шт.

28

A37634

LEVER

- pivot, valve spool control

1шт.

29

A37637

PIN,9.53mm OD x 24.38mm L

- center pivot, 1" long

1шт.

30

G16825

PIN

- lower pivot, 3-9/16" long

1шт.

31

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot pin #37, Ext

4шт.

32

A37638

SUPPORT

- control lever

1шт.

33

13-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

36

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

1шт.

37

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.
