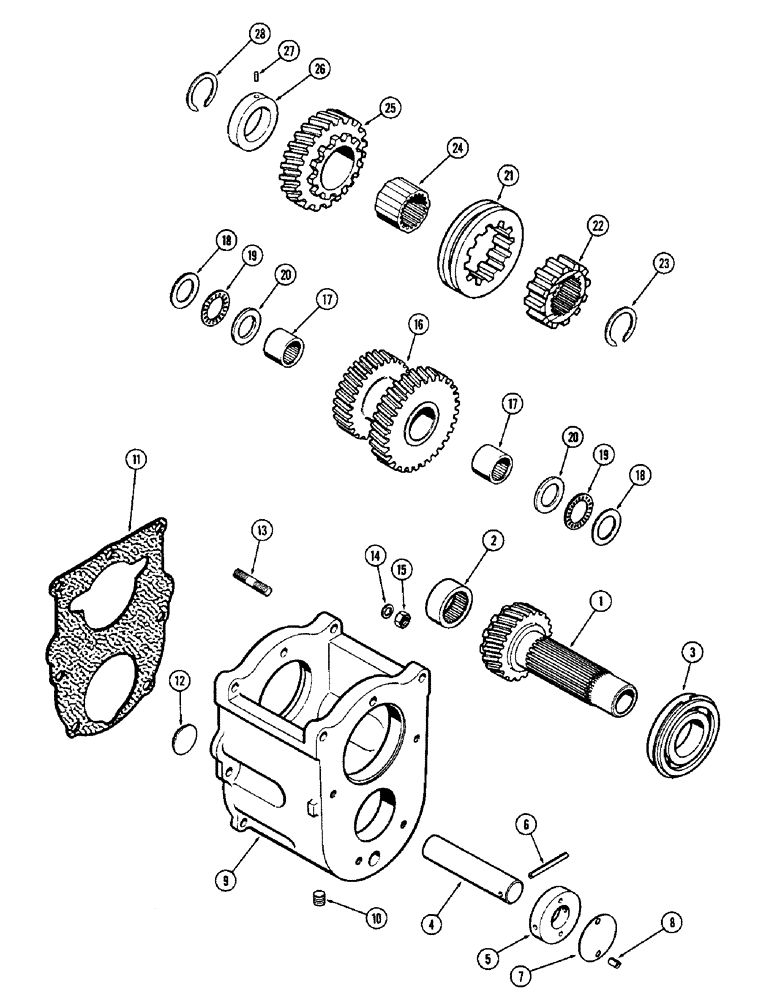

Запчасти Case 580B (182) - DUAL RANGE GEAR BOX, MECHANICAL SHUTTLE (06) - POWER TRAIN

1

G16623

GEAR

- input (25 teeth)

1шт.

2

G10419

NEEDLE BEARING

BEARING - needle, input gear

1шт.

3

G13606

BALL BEARING

BEARING - ball, input gear

1шт.

4

G16606

SHAFT

COUNTERSHAFT

1шт.

5

G16607

COLLAR

- countershaft

1шт.

6

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

7

G16608

SHIM,.005" Thk

Countershaft .005" Thk

1шт.

8

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN - roll, 5/16 x 3/8"

2шт.

9

G1254

HOUSING - gear

1шт.

10

221-1849

PLUG

- 1/8" P.T. hex. sckt. hd.

1шт.

11

G46841

GASKET

- housing to trans. case

1шт.

12

41-20

PLUG,Exp, 1 1/4"

- rear, 1-1/2" dia. (Replaced A30084)

1шт.

13

G10710

STUD

- 3/8" N.F. x 1-3/4"

7шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

7шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

7шт.

16

G16611

GEAR

- cluster (34 teeth and 27 teeth)

1шт.

17

F51079

NEEDLE BEARING

BEARING - needle, cluster gear (Replaced F62094)

2шт.

18

G46081

BEARING WASHER

WASHER - thrust, outer, 1/32"

2шт.

19

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Cluster gear

2шт.

20

G46082

WASHER

- thrust, inner, 1/8"

2шт.

21

A38153

COLLAR

- shift

1шт.

22

G16621

CARRIER

- shift collar (12 teeth)

1шт.

23

A27565

RING

- snap, shift collar (.076")

1шт.

23

A27566

RING

- snap, shift collar (.080")

1шт.

23

A27567

RING

- snap, shift collar (.083")

1шт.

23

G46097

RING

- snap, shift collar (.087")

1шт.

23

A27568

RING

- snap, shift collar (.091")

1шт.

24

G16619

SLEEVE

- output gear

1шт.

25

G16620

GEAR

- output (32 teeth)

1шт.

26

G13458

COLLAR

- thrust, output gear, Inlcudes: Ref. 27

1шт.

27

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN - roll, 5/16 x 3/8"

1шт.

28

A26946

RING

- snap, thrust collar

1шт.
