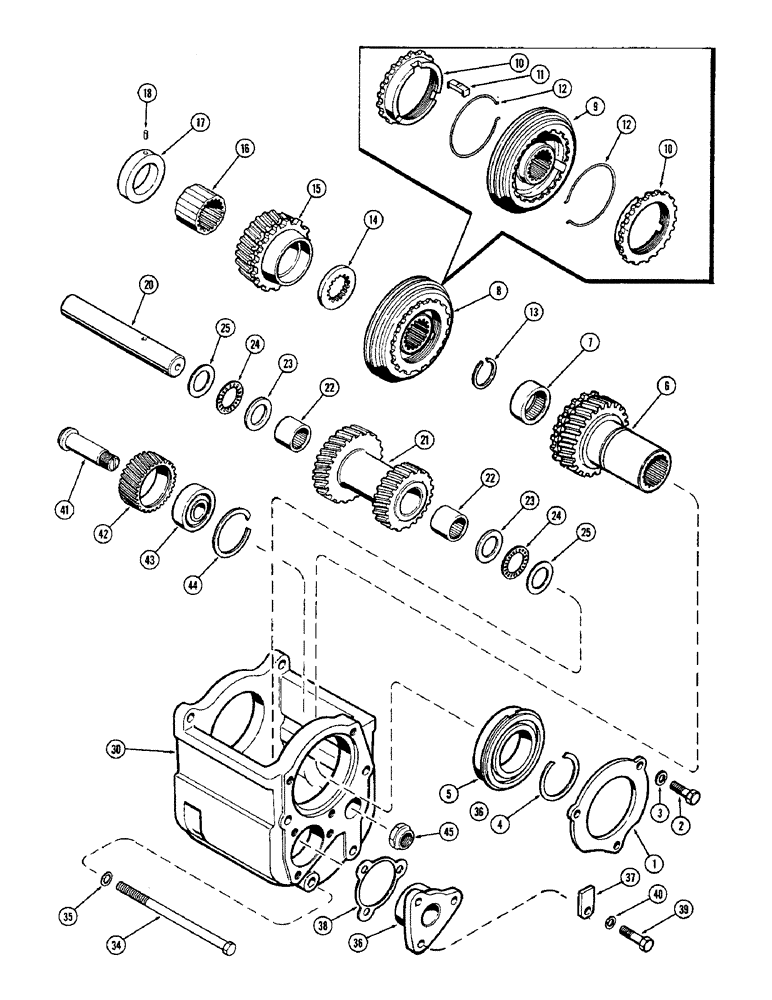

Запчасти Case 580B (180) - SHUTTLE GEAR BOX, MECHANICAL SHUTTLE (06) - POWER TRAIN

1

G16627

RETAINER

- bearing, input gear

1шт.

2

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

4

A27209

RING

- snap, input gear bearing

1шт.

5

A31209

BALL BEARING,49.99mm ID x 89.98mm OD x 20mm W

BEARING - ball, input gear (Replaces G13607)

1шт.

6

A37617

GEAR

- input

1шт.

7

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - needle, input gear

1шт.

8

A51874

SYNCHRONIZER

ASSY. - shuttle shift (Replaces G45049), Inlcudes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

HUB & SLEEVE ASSY. - (Order ref. 8)

1шт.

10

G46077

RING

- blocking

2шт.

11

G46078

PLATE

- shifter

3шт.

12

A40766

SPRING

2шт.

13

A27565

RING

- snap, synchronizer (.076")

1шт.

13

A27566

RING

- snap, synchronizer (.080")

1шт.

13

A27567

RING

- snap, synchronizer (.083")

1шт.

13

G46097

RING

- snap, synchronizer (.087")

1шт.

13

A27568

RING

- snap, synchronizer (.091")

1шт.

14

G16625

COLLAR

- thrust, output gear

1шт.

15

G16624

GEAR

- output (27 teeth)

1шт.

16

G16619

SLEEVE

- output gear

1шт.

17

G13459

COLLAR

ASSY. - thrust, output gear, Inlcudes: Ref. 18

1шт.

18

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, 5/64" x 3/8", Slotted

1шт.

20

G16617

SHAFT

COUNTERSHAFT - cluster gear

1шт.

21

G16615

GEAR

- cluster (25 teeth and 30 teeth)

1шт.

22

G10420

NEEDLE BEARING

BEARING - needle, cluster gear

2шт.

23

G46082

WASHER

- thrust, inner (1/8")

2шт.

24

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Cluster gear

2шт.

25

G46081

BEARING WASHER

WASHER - thrust, outer (1/32")

2шт.

30

G1205

HOUSING

- shuttle gear

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8 x 1-3/4" N.F. hex., shuttle hsg. to range hsg.

3шт.

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

34

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

Shuttle housing to range housing Hex, 3/8"-16 x 6 1/2", G5

4шт.

35

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

36

G1206

RING

BUSHING - front, countershaft

1шт.

37

G16618

LATCH

LOCK - countershaft

1шт.

38

G16616

SHIM,.005" Thk

Cluster gear .005" Thk

1шт.

39

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

39

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

40

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

41

G16613

STUD

- reverse idler gear

1шт.

42

G16612

GEAR

- reverse idler (24 teeth)

1шт.

43

G13608

BALL BEARING

BEARING - idler gear

1шт.

44

A27150

RING

- snap, bearing

1шт.

45

G16614

NUT

- idler gear stud

1шт.
