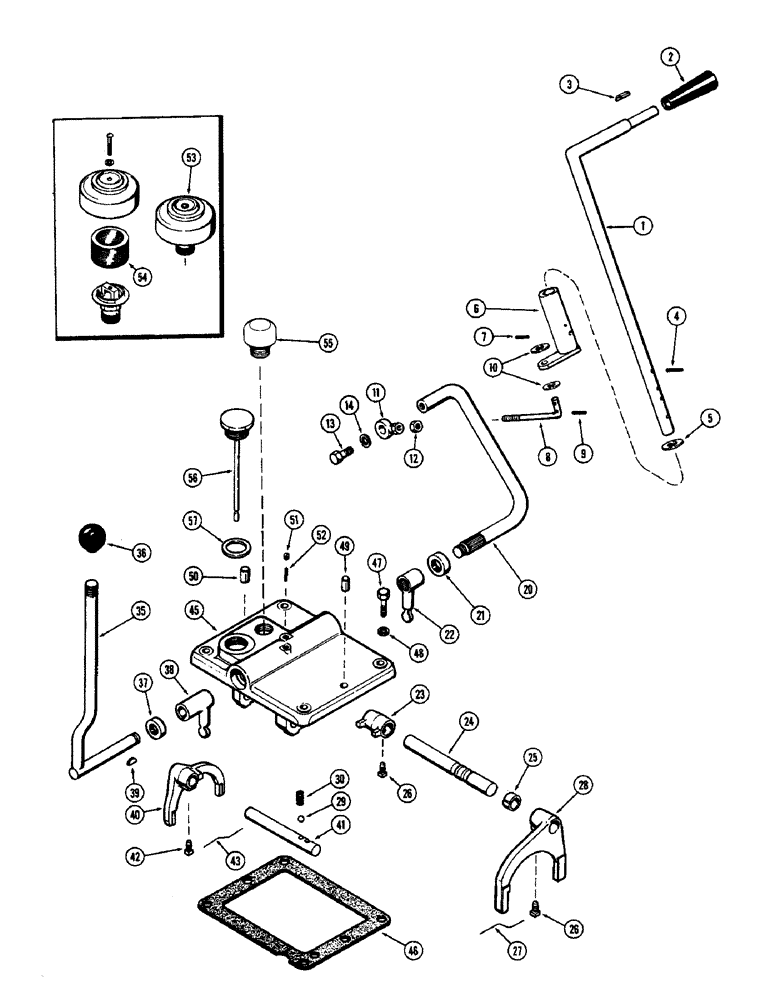

Запчасти Case 580B (178) - SHUTTLE CONTROL COVER, MECHANICAL SHUTTLE (06) - POWER TRAIN

1

A39325

LEVER

- shuttle control

1шт.

2

A37247

KNOB

- lever

1шт.

3

A51528

OIL SEAL

RING - retainer, hand lever knob

1шт.

4

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

5

195-41

WASHER,5/8"

1шт.

6

A37242

LEVER

- lower

1шт.

7

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

8

A38435

ROD

- linkage

1шт.

9

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, 3/32" x 1", Slotted

2шт.

10

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

11

A32398

BALL JOINT

END - ball joint

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

20

A37419

LEVER

- shift control

1шт.

21

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil, 3/4 x 1-1/4 x 3/8"

1шт.

22

G15659

LEVER

- shift fork, shuttle

1шт.

23

G16638

LUG

- shuttle shift rail

1шт.

24

G30264

KIT

- rail, shuttle shift, Inlcudes: Ref. 25

1шт.

25

A38203

SPACER

- shift rail, 1/2" long

1шт.

26

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, Serial Range: lug-rail

1шт.

27

A29966

ELECTRICAL WIRE

WIRE - screw locking, #18 gauge x 7" long

1шт.

28

G16633

FORK

- shuttle shift

1шт.

29

211-11

BALL,3/8" Dia

- detent, shift rail (.) 3/8" Dia

2шт.

30

G47039

SPRING

- detent ball

2шт.

35

A39330

LEVER

- range shift

1шт.

36

A23885

KNOB

- range lever

1шт.

37

A26778

SEAL

- oil, 5/8 x 1-1/8 x 3/8"

1шт.

38

G15657

LEVER

- range shift fork

1шт.

39

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

40

G16632

FORK

- range shift

1шт.

41

A37985

RAIL

- range shift

1шт.

42

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock

1шт.

43

A29966

ELECTRICAL WIRE

WIRE - screw locking, #18 gauge x 7" long

1шт.

45

A37984

COVER

- shift control

1шт.

46

G46842

GASKET

- cover

1шт.

47

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - 3/8 x 1" N.C. 12 pt. Ferry cap

1шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

48

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

49

A29426

AXLE PIN

PIN - dowel, 3/8 x 3/4", front

1шт.

50

G10711

PIN

- dowel, 1/2 x 3/4", rear

1шт.

51

221-1850

PLUG,Hex Soc, 1/16"-27

- 1/16" roll thrd., sckt. hd.

2шт.

52

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

53

A9238

BREATHER

ASSY. - (w/service filter) (Order A75179), Inlcudes: Ref. 54

1шт.

54

A10059

FILTER, ELEMENT

ELEMENT - filter

1шт.

55

A75179

BREATHER

ASSY. - oil (w/nylon washable element)

1шт.

56

A38311

DIPSTICK

- oil level

1шт.

57

A38660

GASKET

- dipstick

1шт.
