(175A) - A41356 CLUTCH PACK, POWER SHUTTLE, ROCKFORD

Запчасти Case 580B (175A) - A41356 CLUTCH PACK, POWER SHUTTLE, ROCKFORD (06) - POWER TRAIN

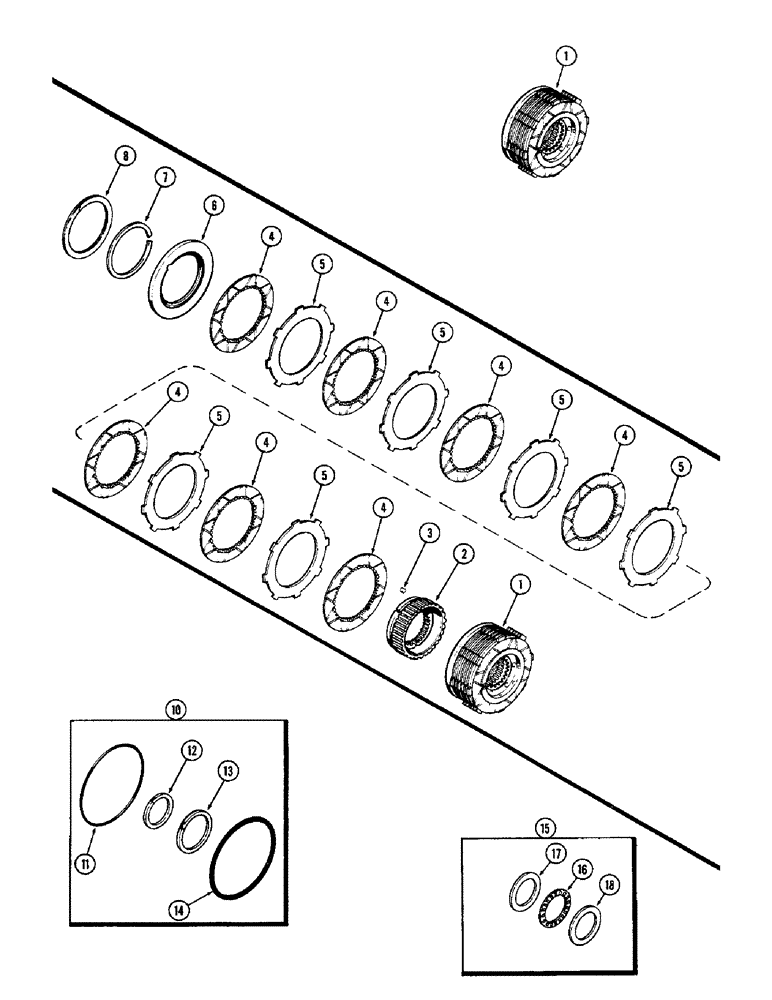

Схема запчастей Case 580B - (175A) - A41356 CLUTCH PACK, POWER SHUTTLE, ROCKFORD (06) - POWER TRAIN
6
5
4
5
5
1
4
16
12
4
13
8
14
5
4
5
2
7
4
10
11
18
15
4
3
1
4
5
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A41356

HUB

CLUTCH PACK - forward & reverse, Inlcudes: Ref. 2 - 8

2шт.

2

A40994

HUB

ASSY. - clutch

1шт.

A40994 hub - This part includes the springs.

1шт.

3

A41008

AXLE PIN

dowel, clutch plate

2шт.

4

A41355

CLUTCH PLATE,92.91mm ID x 133.35mm OD x 1.6mm Thk

PLATE - clutch internal spline

7шт.

5

A41005

CLUTCH PLATE,99.06mm ID x 142.75mm OD x 1.57mm Thk

clutch, external spline

6шт.

6

A41006

PLATE ASSY.

backing, clutch pack

1шт.

7

A41007

RING, SNAP

external, back plate

1шт.

8

A41009

SNAP RING,#412, 4.284, Int, Spiral

nternal, clutch hub

1шт.

10

A41000

GASKET KIT

clutch seal, Inlcudes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

"O" RING - separator seal, 5-3/4" I.D.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - seal, 2-3/8" closed dia. (Hook type), Inlcudes: Ref. 13

2шт.

13

NSS

NOT SOLD SEPARAT

RING - seal, 3" closed dia. (Hook type)

2шт.

14

NSS

NOT SOLD SEPARAT

RING - seal, 5-3/8" I.D. (Lathe cut)

1шт.

15

A41002

THRUST BEARING

Inlcudes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - thrust

3шт.

17

NSS

NOT SOLD SEPARAT

WASHER - thrust bearing (1/16" wide)

4шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust bearing (1/8" wide)

2шт.
