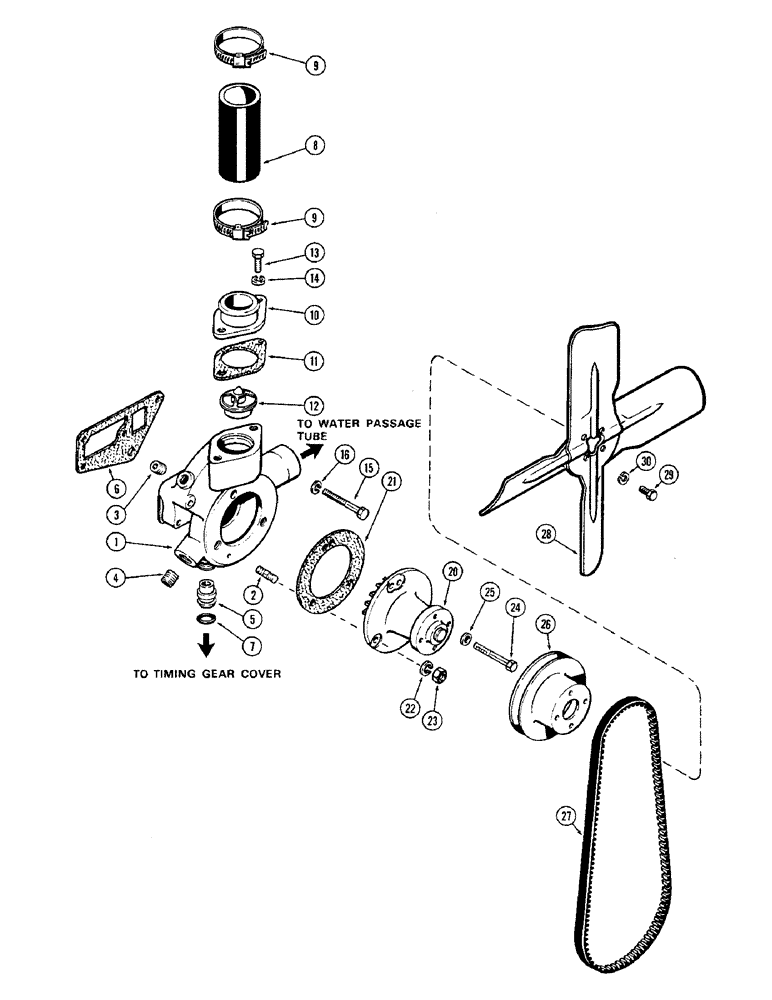

Запчасти Case 580B (013A) - WATER PUMP & FAN, (188) DIESEL ENGINE, 1ST USED ENG. SER. NO 2728315 (02) - ENGINE

1

A144054

BODY

BODY ASSY. - water pump (Replaces A39912 & A51735), Inlcudes: Ref. 2 - 5

1шт.

2

A29433

STUD

STUD - 3/8" N.C. x 1"

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - pipe (3/8" hex. socket head)

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

PLUG - 1/2" P.T. hex. sckt. hd.

1шт.

5

A142823

FITTING

FITTING - water pump body inlet

1шт.

6

A38084

GASKET,1.27mm Thk

GASKET - pump body to cylinder head

1шт.

7

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O"RING - (3/4 x 1 x 1/8") Water pump body to cover

1шт.

8

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper, Outlet to Radiator

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

10

G2144

FITTING

OUTLET - thermostat housing & water

1шт.

11

G46907

GASKET

GASKET - water outlet to pump body

1шт.

12

A57641

THERMOSTAT

THERMOSTAT - 180 degrees

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

15

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - (3/8 x 2-3/4" N.C. hex.)

2шт.

15

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

BOLT - (3/8 x 1-7/8" N.C. hex.)

1шт.

16

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

20

A146584

PUMP, WATER

PUMP ASSY. - water, Inlcudes: Ref. 21

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assy

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

2шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

1шт.

25

A7085

WASHER

WASHER - copper (25/64 x 9/16 x 1/32")

1шт.

26

G11339

PULLEY

PULLEY - fan

1шт.

27

A38824

BELT

Fan and Alternator Drive, Use with Prestolite Alternator

1шт.

27

A139089

BELT

Drive, Used with Delco Alternator, First Used Tractor Serial No. 8785551

1шт.

A139089 belt - Description should read "1st used on tractor SN 8755551".

1шт.

28

G45243

FAN

FAN - radiator

1шт.

29

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT - 5/16 x 1/2" N.C. hex.

4шт.

30

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.
