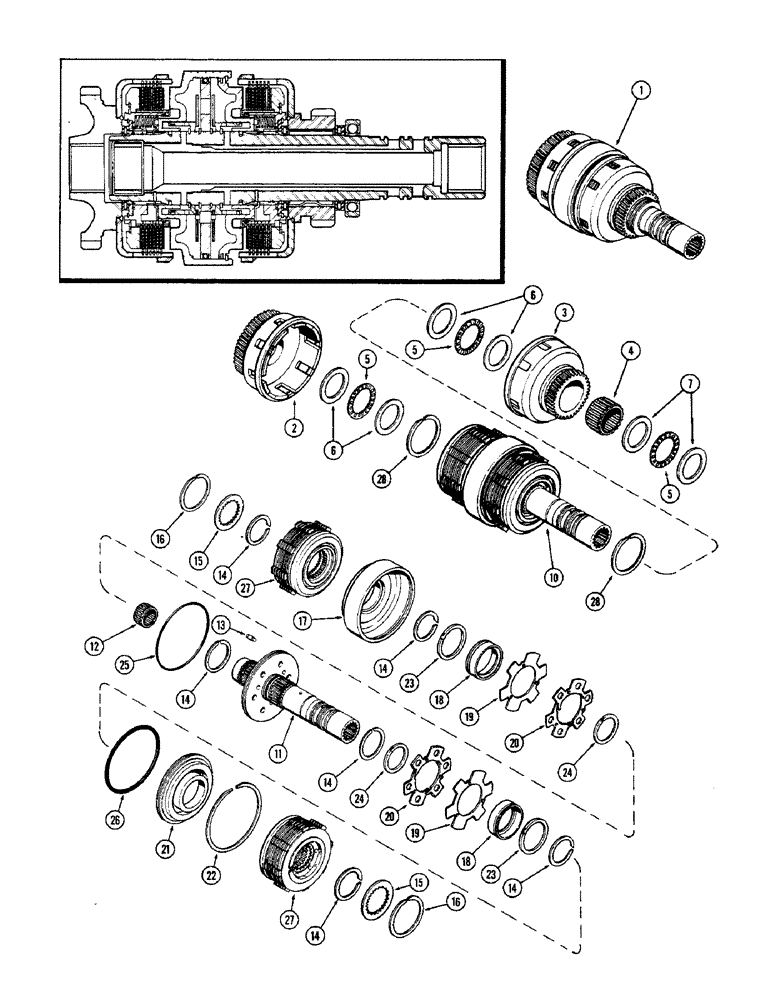

Запчасти Case 580B (174) - A38133 CLUTCH, POWER SHUTTLE, ROCKFORD, HOLLOW SHAFT - USED W/PTO (06) - POWER TRAIN

1

A38133

CLUTCH

ASSY. - (Rockford #4-900-062-14694), Inlcudes: Ref. 2 - 28

1шт.

2

A41013

GEAR WHEEL

GEAR - rear, forward

1шт.

3

A41022

BEARING

GEAR - front, reverse

1шт.

4

A41020

ROLLER CAGE BEARING,53.98mm ID x 63.5mm OD x 38.1mm W

BEARING - front gear

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING - thrust (Order A41002 Figure 175A)

3шт.

6

NSS

NOT SOLD SEPARAT

WASHER - thrust, 1/16" wide (Order A41002 Figure 175A)

4шт.

7

NSS

NOT SOLD SEPARAT

WASHER - thrust, 1/8" wide (Order A41002 Figure 175A)

2шт.

10

A41358

CLUTCH ASSEMBLY

CLUTCH ASSY. - pack, w/shaft, Inlcudes: Ref. 11 - 28

1шт.

11

A40975

SHAFT

ASSY. - w/separator plate

1шт.

12

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING - rear gear

1шт.

13

A40981

AXLE PIN

PIN - dowel, separator

3шт.

14

A40980

RING

- snap, external

6шт.

15

A41011

SPACER

- clutch

2шт.

16

A41012

RING, SNAP

RING - snap, internal, clutch spacer

2шт.

17

A40991

HOUSING

- force piston

1шт.

18

A40984

PISTON

- accelerating

2шт.

19

A40983

DISC

- valve

2шт.

20

A40982

CLUTCH

DISC - reinforcing, valve disc

2шт.

21

A40988

PISTON

- force

1шт.

22

A40992

RING, SNAP

RING - snap, internal, piston housing

1шт.

23

NSS

NOT SOLD SEPARAT

RING - seal, (2-3/8" dia.) (Order A41000 Figure 175A)

1шт.

24

NSS

NOT SOLD SEPARAT

RING - seal (3" dia.) (Order A41000 Figure 175A)

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - separator plate (5-3/4" I.D.) (Order A41000 Figure 175A)

1шт.

26

NSS

NOT SOLD SEPARAT

RING - seal, housing (5-3/8" I.D.) (Order A41000 Figure 175A)

1шт.

27

A41356

HUB

CLUTCH PACK - forward & reverse (See Figure 175A)

2шт.

A41356 clutch pack - The springs are included w/ the hub (part nbr A40994 on Figure 175A).

1шт.

28

A40980

RING

- snap, external, clutch spacer

2шт.
