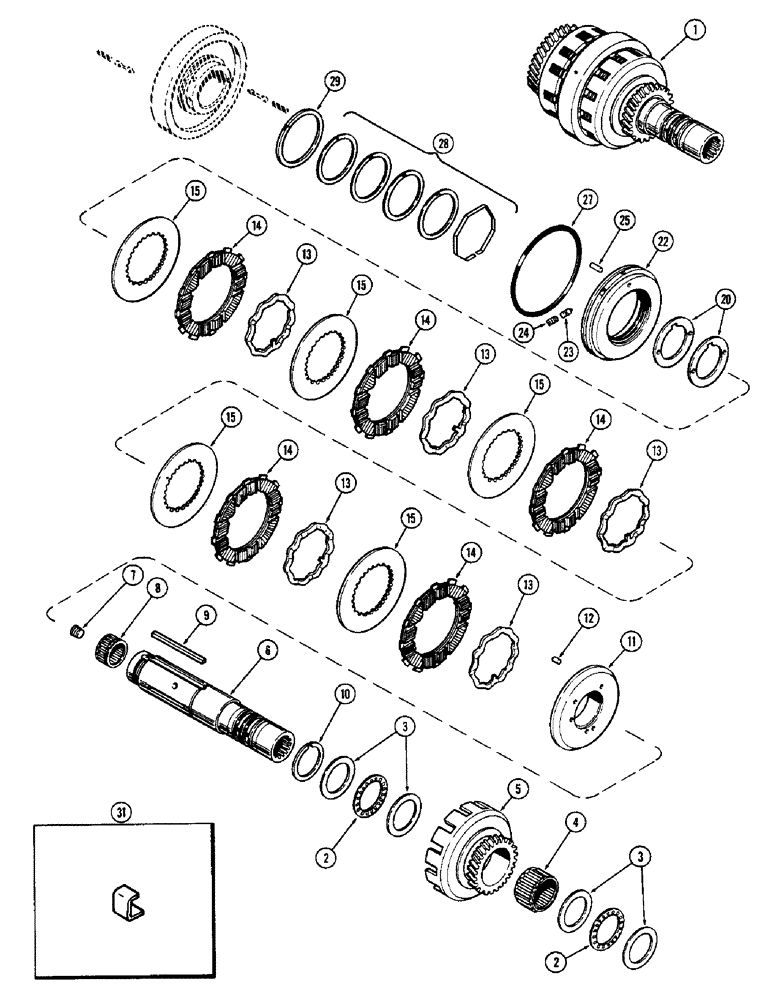

Запчасти Case 580B (173A) - A51166 CLUTCH, POWER SHUTTLE, REVERSE, TWIN DISC, (SOLID SHAFT USED W/O PTO) 1ST TRANS SN 2392563 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A51166
CLUTCH ASSY. - (Twin Disc #X9963C) (Order A38926 - see Figures 170 & 172)
1шт.
2
NSS
NOT SOLD SEPARAT
BEARING - needle, clutch reverse gear (Order A42870)
2шт.
3
A41021
THRUST WASHER
RACE - needle bearing, reverse clutch (See A42870)
4шт.
4
A41020
ROLLER CAGE BEARING,53.98mm ID x 63.5mm OD x 38.1mm W
BEARING - roller, clutch reverse gear (See A42870)
1шт.
5
A43510
GEAR
- spider, reverse clutch
1шт.
6
A44150
SHAFT
ASSY. - clutch quill (Solid)
1шт.
7
A44152
PLUG
- orifice, quill shaft
1шт.
8
A24621
NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W
BEARING - needle, clutch sliding gear shaft (See A42870)
1шт.
9
A43298
KEY
- clutch hubs to quill shaft
1шт.
10
A42849
RING, SNAP
RING - snap, quill shaft stop
1шт.
11
A42856
PLATE
BACKPLATE - clutch hub, reverse
1шт.
12
138-35
LOCK PIN,3/32" x 3/8", Slotted
PIN, 3/32" x 3/8", Slotted
4шт.
13
A42831
SPRING
- wave, clutch plate, reverse
5шт.
14
A42854
PLATE
- sintered, clutch driving, reverse
5шт.
15
A42855
PLATE
- steel, clutch driven, reverse
5шт.
20
A42838
SHIM,.005" Thk
Clutch .005" Thk
1шт.
20
A42839
SHIM,.007" Thk
Clutch .007" Thk
1шт.
20
A42840
SHIM,.010" Thk
Clutch .010" Thk
1шт.
A42872
KIT
- clutch piston w/valve
2шт.
22
A42860
PISTON
- forward & reverse clutch
1шт.
23
A42836
PISTON
- clutch dump valve
1шт.
24
A42847
SPRING
- clutch dump valve piston
1шт.
25
A42850
PIN
- clutch dump valve spring
1шт.
A42871
SEAL
KIT - seals & rings
1шт.
27
A42843
SEAL
RING - seal, clutch piston to carrier (Rubber)
2шт.
28
A42848
PISTON
RING - piston, clutch, Serial Range: carrier-piston
2шт.
29
A42899
RING
- piston, intermediate, Serial Range: piston-carrier
2шт.
A42870
BEARING ASSY
KIT - bearing (Includes items 1 thru 3 & 8 on this page & items 20 & 21 on Figure 173C)
1шт.
31
A43071
CLIP
- clutch pack clamp
4шт.
Выбрано товаров: 29
