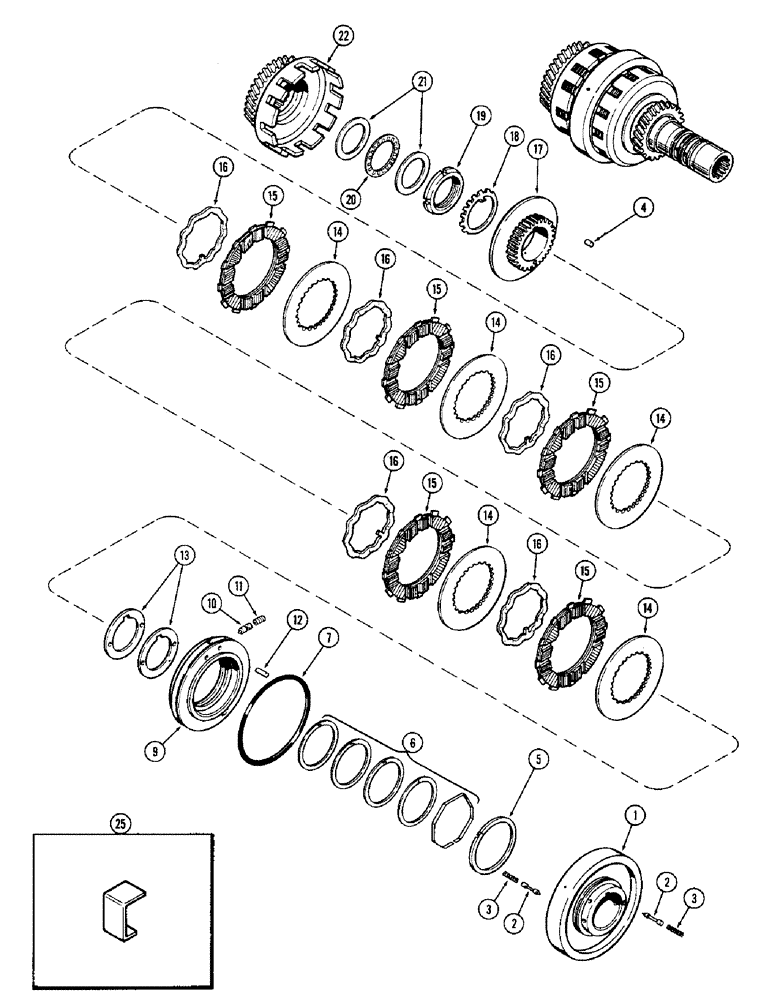

Запчасти Case 580B (172) - A38926 CLUTCH, POWER SHUTTLE, FORWARD, TWIN DISC, (HOLLOW SHAFT USEDW/PTO) PRIOR TRANS SN 2392563 (06) - POWER TRAIN

A38926

CLUTCH

ASSY. - (Twin Disc #X9963A) (Cont'd from Figure 170), Inlcudes: Ref. 1 - 22

1шт.

1

A42858

CARRIER

ASSY. - clutch piston

1шт.

2

A42837

PISTON ASSY.

PISTON - clutch lube

2шт.

3

A42846

VALVE SPRING

SPRING - clutch lube valve

2шт.

4

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, 3/32" x 3/8", Slotted

4шт.

A42871

SEAL

KIT - seals & rings, Inlcudes: Ref. 5 - 7

1шт.

5

A42899

RING

- piston, intermediate, Serial Range: piston-carrier

2шт.

6

A42848

PISTON

RING - piston, clutch carrier to piston seal

2шт.

7

A42843

SEAL

RING - seal, clutch piston to carrier (Rubber)

2шт.

A42872

KIT

- clutch piston w/valve, Inlcudes: Ref. 9 - 12

2шт.

9

A42872

KIT

PISTON - forward & reverse clutch

1шт.

10

A42836

PISTON

- clutch dump valve

1шт.

11

A42847

SPRING

- clutch dump valve piston

1шт.

12

A42850

PIN

- clutch dump valve spring

1шт.

13

A42838

SHIM,.005" Thk

Clutch .005" Thk

1шт.

13

A42839

SHIM,.007" Thk

Clutch .007" Thk

1шт.

13

A42840

SHIM,.010" Thk

Clutch .010" Thk

1шт.

14

A42855

PLATE

- clutch driven steel, forward

5шт.

15

A42854

PLATE

- clutch driving sintered, forward

5шт.

16

A42831

SPRING

- clutch plate wave, forward

5шт.

17

A42857

PLATE ASSY.

BACKPLATE - clutch hub, forward

1шт.

18

192-311

BEARING WASHER,Bearing, W-11

PLATE - lock, bearing

1шт.

19

A42832

LOCK NUT

NUT - lock, Serial Range: clutch-shaft

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - forward clutch needle (Order A42870)

1шт.

21

A42844

WASHER,50.85mm ID x 69.6mm OD x 3.2mm Thk

RACE - bearing, forward clutch needle (See A42870)

2шт.

22

A43508

GEAR WHEEL

GEAR - spider, forward clutch

1шт.

A42870

BEARING ASSY

KIT - bearings (Incl. items 1 thru 3 & 6 Figure 170 and items 20 & 21 this page)

1шт.

25

A43071

CLIP

- clutch pack clamp

4шт.
