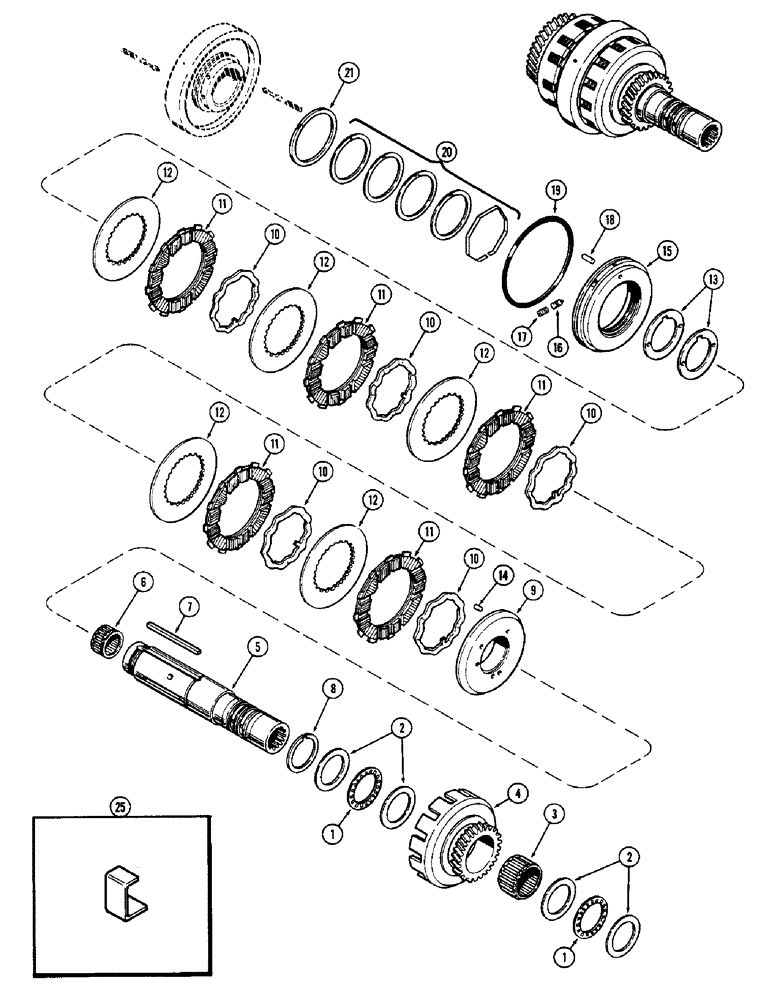

Запчасти Case 580B (170) - A38926 CLUTCH, POWER SHUTTLE, REVERSE, TWIN DISC, (HOLLOW SHAFT USED W/PTO) PRIOR TRANS SN 2392563 (06) - POWER TRAIN

A38926

CLUTCH

ASSY - (Twin Disc #X9963A), Inlcudes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING - needle, clutch reverse gear (Order A42870)

2шт.

2

A41021

THRUST WASHER

RACE - bearing, reverse clutch needle (See A42870)

4шт.

3

A41020

ROLLER CAGE BEARING,53.98mm ID x 63.5mm OD x 38.1mm W

BEARING - roller, clutch reverse gear (See A42870)

1шт.

4

A43510

GEAR

- spider, reverse clutch

1шт.

5

A42869

SHAFT

ASSY. - clutch quill (Hollow)

1шт.

6

A24521

BEARING - needle, clutch sliding gear shaft (See A42870)

1шт.

7

A43298

KEY

- clutch hubs to quill shaft

1шт.

8

A42849

RING, SNAP

RING - snap, quill shaft stop

1шт.

9

A42856

PLATE

BACKPLATE - clutch hub, reverse

1шт.

10

A42831

SPRING

- clutch plate wave, reverse

5шт.

11

A42854

PLATE

- clutch driving sintered, reverse

5шт.

12

A42855

PLATE

- clutch driven steel, reverse

5шт.

13

A42838

SHIM,.005" Thk

Clutch .005" Thk

1шт.

13

A42839

SHIM,.007" Thk

Clutch .007" Thk

1шт.

13

A42840

SHIM,.010" Thk

Clutch .010" Thk

1шт.

14

138-35

LOCK PIN,3/32" x 3/8", Slotted

PIN, 3/32" x 3/8", Slotted

4шт.

A42872

KIT

- clutch piston w/valve, Inlcudes: Ref. 15 - 18

2шт.

15

A42860

PISTON

- forward & reverse clutch

1шт.

16

A42836

PISTON

- clutch dump valve

1шт.

17

A42847

SPRING

- clutch dump valve piston

1шт.

18

A42850

PIN

- clutch dump valve spring

1шт.

A42871

SEAL

KIT - seals & rings, Inlcudes: Ref. 19 - 21

1шт.

19

A42843

SEAL

RING - seal, clutch piston to carrier (Rubber)

2шт.

20

A42848

PISTON

RING - piston, clutch carrier to piston seal

2шт.

21

A42899

RING

- piston, intermediate, Serial Range: piston-carrier

2шт.

A42870

BEARING ASSY

KIT - bearings (Incl. item 1 thru 3 & 6 this page and items 20 & 21 Figure 172)

1шт.

25

A43071

CLIP

- clutch pack clamp

4шт.
