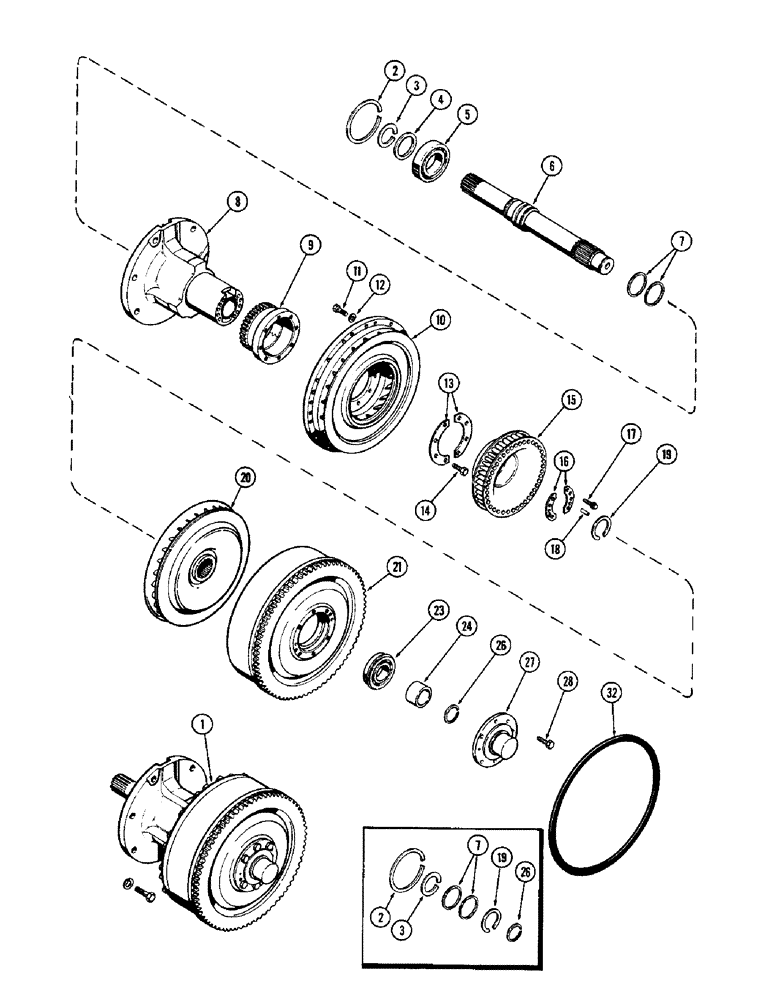

Запчасти Case 580B (169A) - A51165 TORQUE CONVERTER, PWR SHUTTLE, TWIN DISC, (SOLID SHAFT USED W/O PTO) 1ST USED TRAN SN 2392563 (06) - POWER TRAIN

1

A51165

TORQUE CONVERTER - (Order A39521 - see Figure 168), Inlcudes: Ref. 2 - 28

1шт.

2

A36373

RING, SNAP

RING - snap, internal, carrier bearing

1шт.

3

A27085

RING

- snap, external, carrier bearing

1шт.

4

A40880

SPACER

- carrier bearing

1шт.

5

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - carrier

1шт.

6

A44154

SHAFT

- output (Solid)

1шт.

7

A20229

RING

- seal, shaft

2шт.

8

A43448

CARRIER

- converter guide

1шт.

9

A41400

GEAR

- pump drive

1шт.

A41400 gear - This gear has a bushing (part nbr A36272) inside of it.

1шт.

10

A40872

WHEEL

- impeller

1шт.

11

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

18шт.

12

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- plain

18шт.

13

D37017

PLATE

- clamp

2шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

15

D36835

WHEEL

- guide

1шт.

16

A36278

PLATE

- clamp

2шт.

17

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - (5/16 x 3/4" N.C. 12 pt. hd.)

6шт.

18

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, 5/16" x 3/4", Slotted

4шт.

19

A27085

RING

- snap, turbine

1шт.

20

D36829

TURBINE

1шт.

21

A40873

HOUSING

- rotating

1шт.

23

A37733

BALL BEARING

BEARING - housing

1шт.

24

A44153

SPACER

- ball bearing, pilot end

1шт.

26

A36385

RING

- snap, external

1шт.

27

A44155

HUB CAP

PILOT - flywheel

1шт.

28

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

31

A41084

KIT

- repair (Includes items 2, 3, 7, 19, 25 & 26)

1шт.

32

G46817

GASKET,293.62mm ID x 314.58mm OD x 4.95mm Thk

-, Serial Range: converter-flywheel

1шт.
