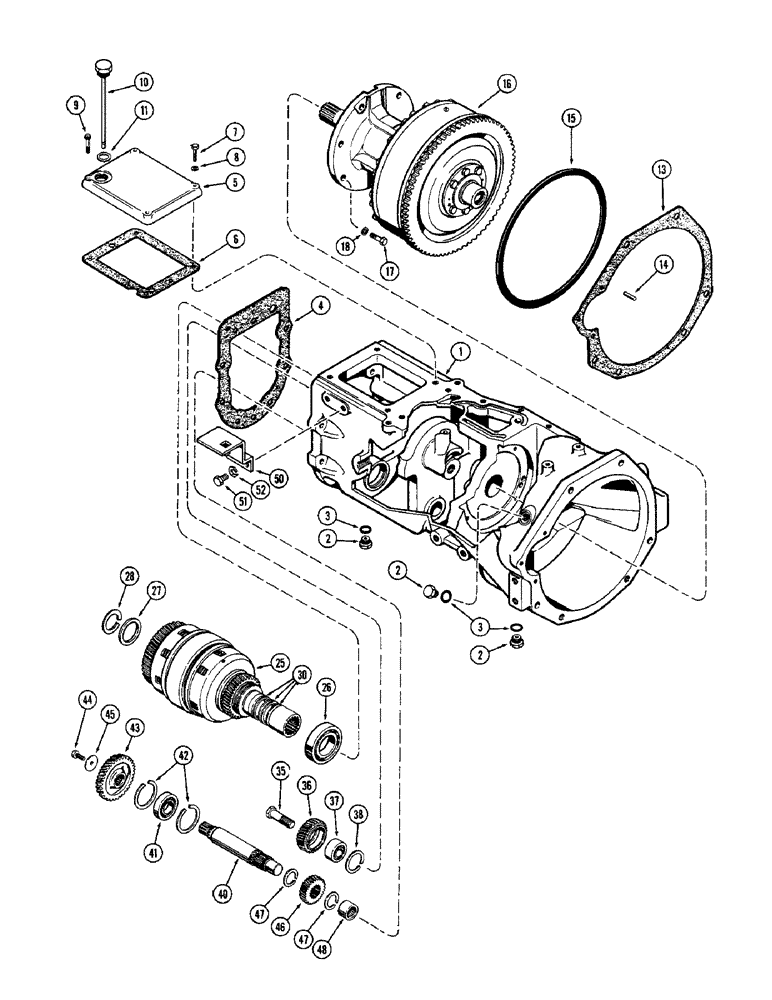

Запчасти Case 580B (166) - TORQUE TUBE, POWER SHUTTLE (06) - POWER TRAIN

1

A51791

HOUSING

TORQUE TUBE (1st used trac. ser. no. 8731267)

1шт.

A51791 torque tube - Uses qty 2 of A38710 bolts to attach to engine block.

1шт.

A51791 torque tube - Diameter of hole which torque converter shaft fits into is 2.000 - 2.008.

1шт.

1

A38359

SPARE PART

TORQUE TUBE - (Used prior to trac. ser. no. 8731267)

1шт.

2

A140222

PLUG

- drain & timing hole (Replaces A41280)

3шт.

3

A58608

GASKET

- plug

3шт.

4

A39029

GASKET

- torque tube to trans. case

1шт.

5

A37222

COVER - top rear

1шт.

6

G46842

GASKET

- cover

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

9

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - 3/8 x 1" N.C. Ferry cap

1шт.

10

A38313

DIPSTICK

- oil level

1шт.

10

A39858

DIPSTICK - oil level (Forklift only)

1шт.

11

A38660

GASKET

- dipstick

1шт.

13

G46876

GASKET

- torque, Serial Range: tube-engine

1шт.

14

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, , Timing pointer 1/8" x 1 1/4", Slotted

1шт.

16

REF

INSTRUCTION

TORQUE CONVERTER - (See Figures 168 & 169A)

1шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

5шт.

18

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

5шт.

25

REF

INSTRUCTION

CLUTCH ASSY. - power shuttle (See Figures 170 thru 176)

1шт.

26

G10418

BEARING, BALL

BEARING - clutch front

1шт.

27

A37783

SHIM,.0149" Thk

Clutch to main shaft .0149" Thk

1шт.

28

A26946

RING

- snap, clutch to main shaft

1шт.

30

A43258

SEAL KIT

KIT - seal, main shaft (Set of 3)

1шт.

35

A37628

STUD

- clutch idler gear

1шт.

36

NLS

NO LONGER SERVICED

GEAR - clutch idler gear (28 teeth)

1шт.

37

G13608

BALL BEARING

BEARING - idle gear

1шт.

38

A27150

RING

- snap, idler gear

1шт.

40

A37623

SHAFT

COUNTERSHAFT - clutch drive

1шт.

41

40040

BALL BEARING,1.1811" ID x 2.4409" OD x 0.6299"

- countershaft rear

1шт.

42

A30091

RING, SNAP

RING - snap, rear bearing

2шт.

43

A37625

GEAR WHEEL

GEAR - countershaft rear (39 teeth)

1шт.

44

114-215

BOLT,Locking, 3/8" - 24 x 1", Gr 5

1шт.

45

A37627

WASHER

- gear retaining

1шт.

46

A37624

GEAR

- countershaft front (23 teeth)

1шт.

47

A37626

SNAP RING,#137, 1.291", Ext

RING - snap, front gear

2шт.

48

F60368

NEEDLE BEARING

BEARING - front

1шт.

50

D52992

BRACKET

SUPPORT - floor plate, R.H.

1шт.

50

D52991

SUPPORT

- floor plate, L.H.

1шт.

51

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

R.H. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

51

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

L.H. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

52

92-6

LOCK WASHER,3/8"

WASHER - lock, , RH 3/8"

2шт.

53

193-72

LOCK WASHER

- Shakeproof, 3/8" int./ext., L.H.

2шт.
