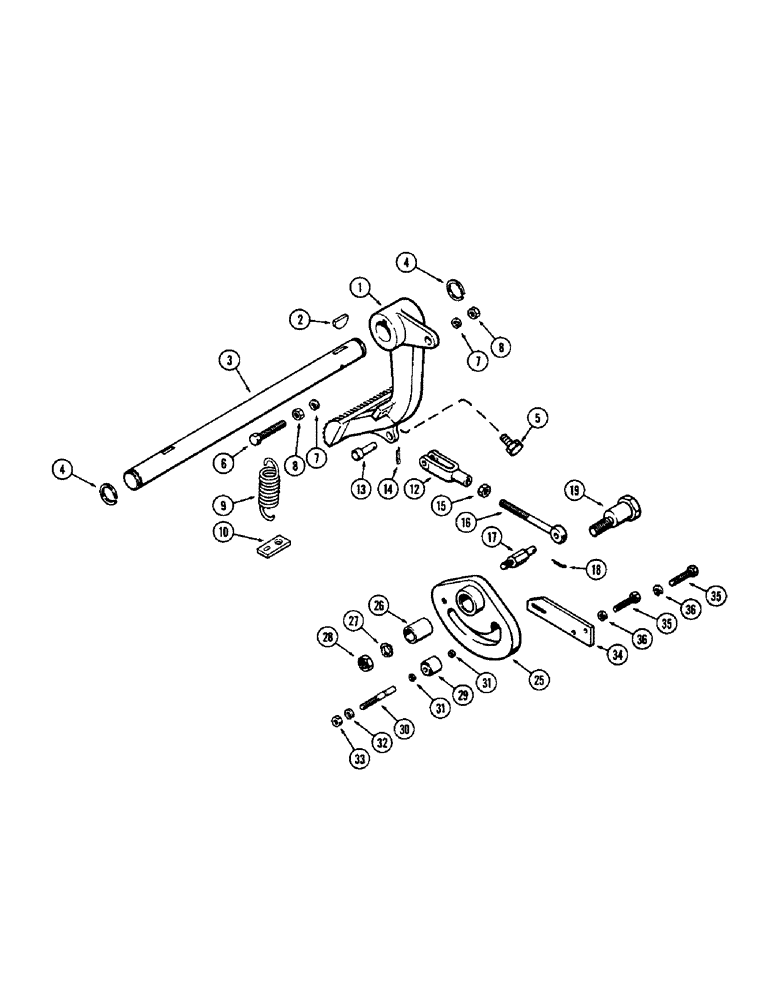

Запчасти Case 580B (164) - CLUTCH LINKAGE, POWER SHUTTLE (06) - POWER TRAIN

1

A39808

PEDAL

- clutch brake

1шт.

2

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

3

A37701

SHAFT

- cross, brake & clutch

1шт.

4

A37235

SNAP RING,#100, .941", Ext

RING - snap, cross shaft

2шт.

5

A51222

SCREW - adjusting, clutch pedal

1шт.

6

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

9

A37724

SPRING

- pedal return

1шт.

10

A38142

BRACKET

- spring anchor

1шт.

12

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - pedal to link

1шт.

13

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke to pedal 5/16" x .940"

1шт.

14

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

15

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

16

A37717

DRAG LINK

LINK - pedal to cam stud

1шт.

17

A37716

STUD

- cam

1шт.

18

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

19

A37718

STEP BOLT

SHAFT - pivot, clutch cam

1шт.

25

A38274

CAM

ASSY. - clutch operating, Inlcudes: Ref. 26

1шт.

26

A37715

BUSHING

- cam

1шт.

27

193-48

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - Shakeproof, 1/2" ext.

1шт.

28

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

29

A37720

BEARING

- cam follower

1шт.

30

A37786

SHAFT

- cam follower

1шт.

31

A31196

CIRCLIP,#25, .207" Dia, E-Type

Ring, Retaining, , bearing to shaft #25, .207" Dia, E-Type

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

25-104

NUT,1/4"-20, G5

2шт.

34

A37722

BRACKET

SUPPORT - cam follower shaft

1шт.

35

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
