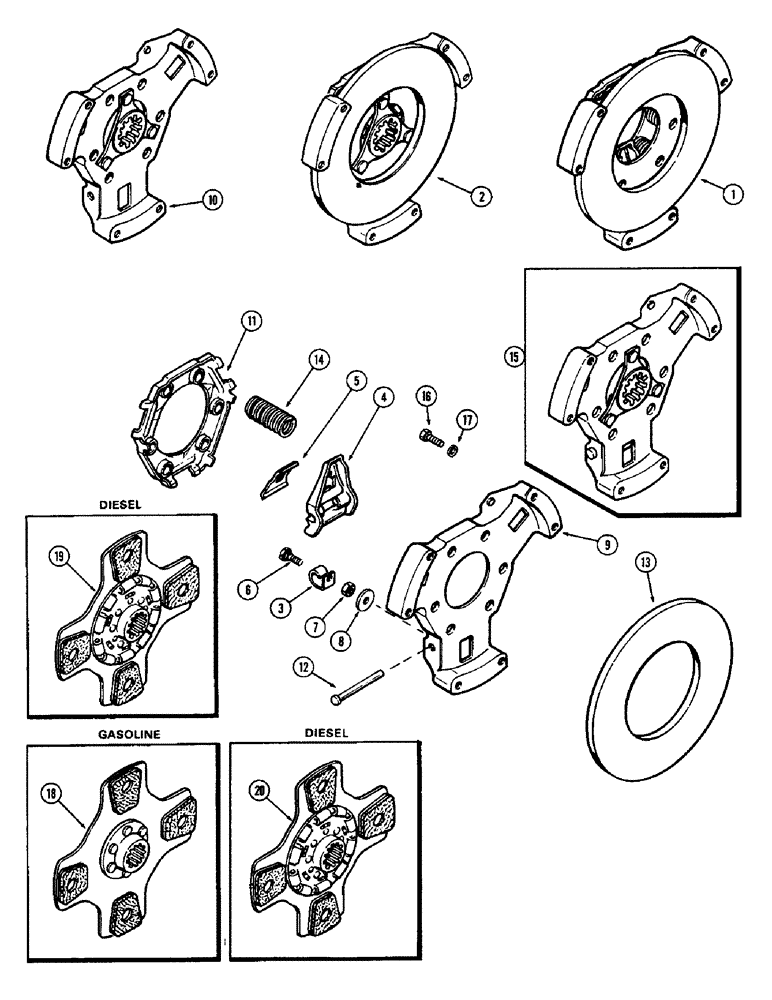

Запчасти Case 580B (162) - CLUTCH, MECHANICAL SHUTTLE (06) - POWER TRAIN

1

A39213

PLATE

PLATE ASSY. - pressure (w/o hub) (Order A39212), Inlcudes: Ref. 3 - 15

1шт.

2

A39212

CLUTCH

PLATE ASSY. - pressure (w/hub), Inlcudes: Ref. 3 - 15

1шт.

2

A39212R

REMAN-CLUTCH PLATE

580B, Case Construction King Tractor w/Shuttle Trans.

1шт.

2

A39212C

CORE-CLUTCH PLATE

Return Part Number

1шт.

2

5092792R

REMAN-CLUTCH PLATE

Reman for New PN A39212

1шт.

2

5092792C

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

A43607

CLIP

CLIP - clutch return

3шт.

4

NSS

NOT SOLD SEPARAT

LEVER - pressure spring (Order A43660)

3шт.

5

A43605

LINK

LINK - pressure plate

3шт.

6

NLS

NO LONGER SERVICED

ADJUSTOR - lever screw

3шт.

7

25-155

JAM NUT,Jam, 5/16"-24, G5

LOCKNUT - adjustor (Replaced G49005)

3шт.

8

G49048

WASHER

WASHER - flat, adjustor

3шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - pressure plate (w/o hub) (Order A43660)

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - pressure plate (w/hub) (Order A43660)

1шт.

11

A43613

RING

RING - pressure plate spring

1шт.

12

A43606

SPARE PART PIN - pivot, lever (See A43660)

3шт.

13

A43609

PLATE

PLATE - pressure

1шт.

14

A43612

SPRING

KIT - pressure spring (Set of 6, yellow code)

1шт.

15

A43660

BRACKET

BRACKET ASSY. - clutch pressure plate w/lever (Includes items 4, 10 & 12)

1шт.

16

G11207

BOLT

BOLT -, Serial Range: plate-flywheel

6шт.

17

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

18

A39087

PLATE ASSY.

PLATE - driving (Gasoline)

1шт.

19

A51840

CLUTCH DISC

CLUTCH DISK PLATE - driving (Diesel) (1st used trac. ser. no. 8738840)

1шт.

19

1997844C1R

REMAN-CLUTCH DISC,276.35mm OD

Remanufactured Clutch Disc, 11 in., 21Tooth hub, 4 paddle

1шт.

19

1997844C1C

CORE-CLUTCH DISC

Return Part Number

1шт.

20

A38389

PLATE

PLATE - driven; driving (Diesel) (Used prior to trac. ser. no. 8738840)

1шт.
