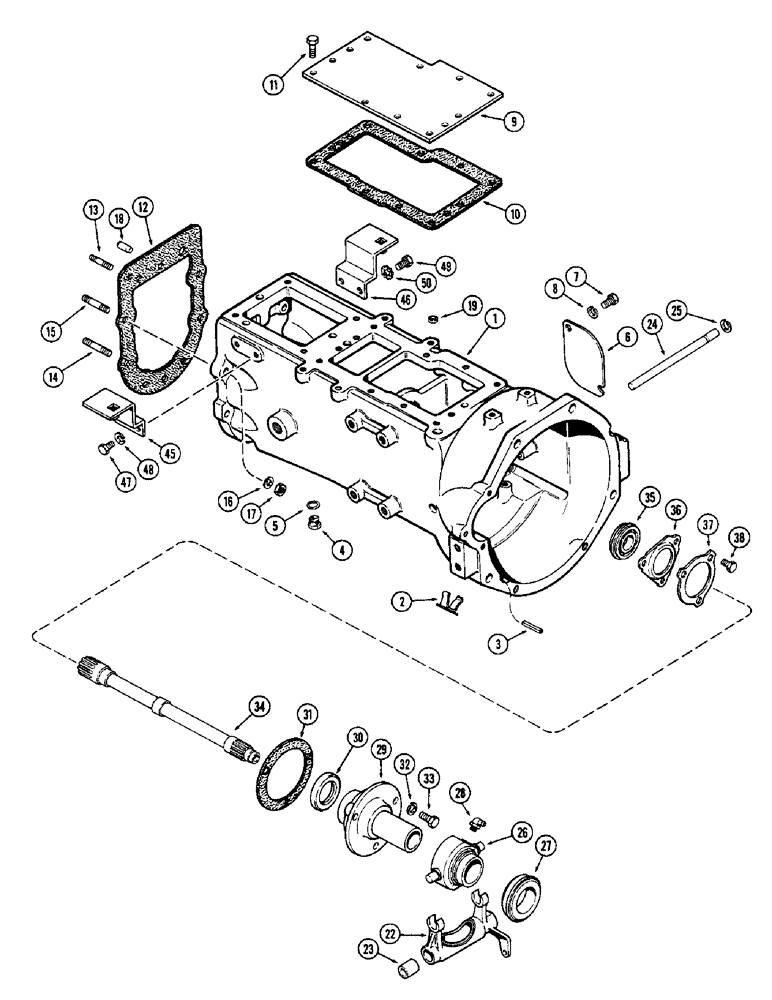

Запчасти Case 580B (160) - TORQUE TUBE, MECHANICAL SHUTTLE (06) - POWER TRAIN

1

A51800

TUBE

- torque (1st used trac. ser. no. 8731267)

1шт.

1

A39214

TUBE

- torque (Used prior to trac. ser. no. 8731267) (Order 1-A51800 tube & 1-A51792 support) (Figures 38 & 76)

1шт.

2

A35216

COVER

- timing hole

1шт.

3

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pointer 1/8" x 1 1/2", Slotted

1шт.

4

A140222

PLUG

- drain (Replaces A14280)

1шт.

5

A58608

GASKET

- plug

1шт.

6

A7082

COVER

- hand hole

1шт.

7

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" N.C. hex.

1шт.

8

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

9

A39574

COVER - front (w/o hydraulics)

1шт.

10

G10876

GASKET

- cover

1шт.

11

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

11шт.

12

A39029

GASKET

- torque tube to trans. case

1шт.

13

A38708

STUD

- 1/2" N.C./N.F. x 2-3/8"

1шт.

14

A38707

STUD

- 1/2" N.C./N.F. x 2-1/2" (Replaces A29336)

4шт.

A38707 stud - This stud is 2.560" long. One size is used to service both sizes called out.

1шт.

15

A38707

STUD

- 1/2" N.C./N.F. x 2-9/16"

3шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

18

A29540

PIN

DOWEL - torque tube locating

1шт.

19

41-1010

PLUG,Cup, 5/8"

- 3/8" cup type

1шт.

22

G14469

YOKE

ASSY. - clutch throwout, Inlcudes: Ref. 23

1шт.

23

G49661

BUSHING

- yoke

2шт.

24

A35029

SHAFT

- pivot, throwout yoke

1шт.

25

A35030

RING

- snap, pivot shaft

1шт.

26

A45388

CARRIER

ASSY. - throwout bearing (Replaces A37774), Inlcudes: Ref. 27

1шт.

27

A144152

BEARING,57.13mm ID x 86.13mm OD x 19.18mm W

- throwout (Replaces A7538 & A139378)

1шт.

28

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" P.T., 45 degrees

1шт.

29

A38634

CARRIER

SLEEVE ASSY. - throwout, Inlcudes: Ref. 30

1шт.

30

A37611

OIL SEAL

- oil, clutch shaft

1шт.

31

G10407

GASKET

- sleeve

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

33

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

34

A37618

SHAFT

- clutch

1шт.

35

A37733

BALL BEARING

BEARING - clutch shaft

1шт.

36

G10383

BEARING CAP

CAP - bearing

1шт.

37

G10382

LOCK

- bearing cap

1шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

45

D52992

BRACKET

SUPPORT - floor plate, R.H.

1шт.

46

D52991

SUPPORT

- floor plate, L.H.

1шт.

47

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

R.H. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

48

92-6

LOCK WASHER,3/8"

WASHER - lock, , RH 3/8"

2шт.

49

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

L.H. Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

50

193-72

LOCK WASHER

- Shakeproof, 3/8" int./ext., L.H.

2шт.
