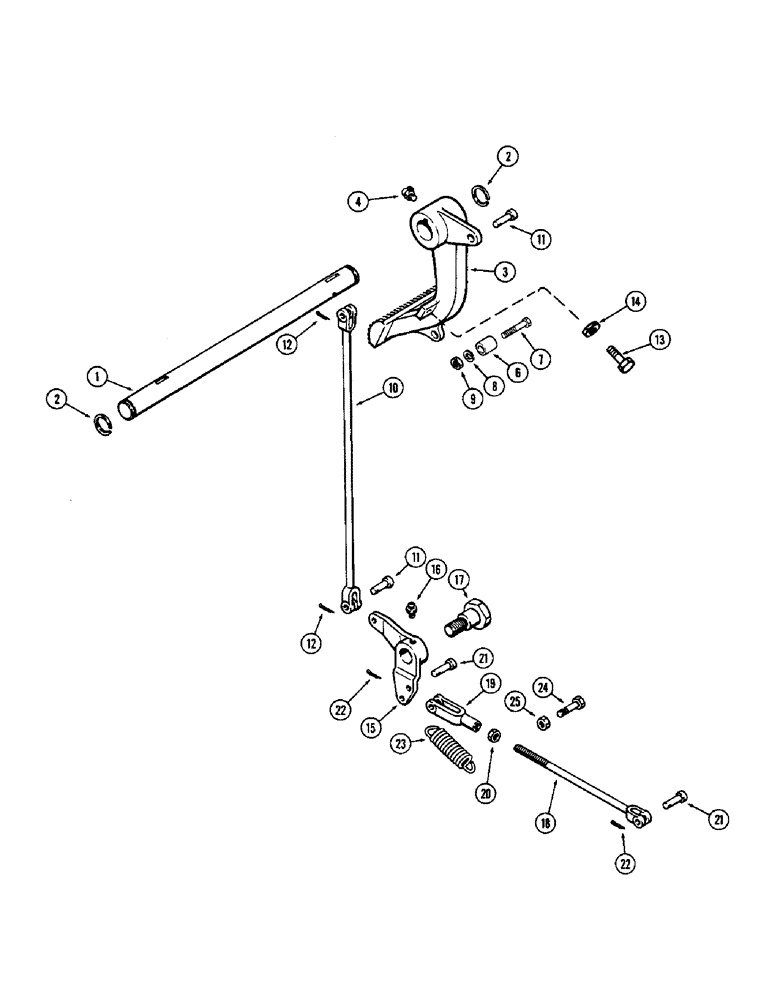

Запчасти Case 580B (158) - CLUTCH LINKAGE, MECHANICAL SHUTTLE (06) - POWER TRAIN

1

A37701

SHAFT

- cross, brake & clutch pedals

1шт.

2

A37235

SNAP RING,#100, .941", Ext

RING - snap, pedal to shaft

1шт.

3

A39808

PEDAL

- clutch

1шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" P.T., 45 degrees

1шт.

6

A37459

SPACER

STOP - 9/16 x 27/32 x 11/16"

1шт.

7

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

8

92-8

LOCK WASHER,1/2"

1шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

10

A37254

ROD -, Serial Range: pedal-lever

1шт.

11

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

12

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

13

113-169

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5, Full Thd

Clutch pedal adj. Hex, 1/4"-20 x 1 1/4", G5, Full Thd

1шт.

14

25-144

JAM NUT,Jam, 1/4"-20, G5

- (1/4" hex. jam)

1шт.

15

A37257

PIVOT

LEVER - pivot, clutch rod

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. st.

1шт.

17

A37256

BOLT

- pivot lever shoulder

1шт.

18

A37480

ROD

-, Serial Range: lever-throwout

1шт.

19

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod to lever

1шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- 5/16" N.F. hex., jam

1шт.

21

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

22

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

23

A35789

SPRING

- return

1шт.

24

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

1шт.

25

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.
