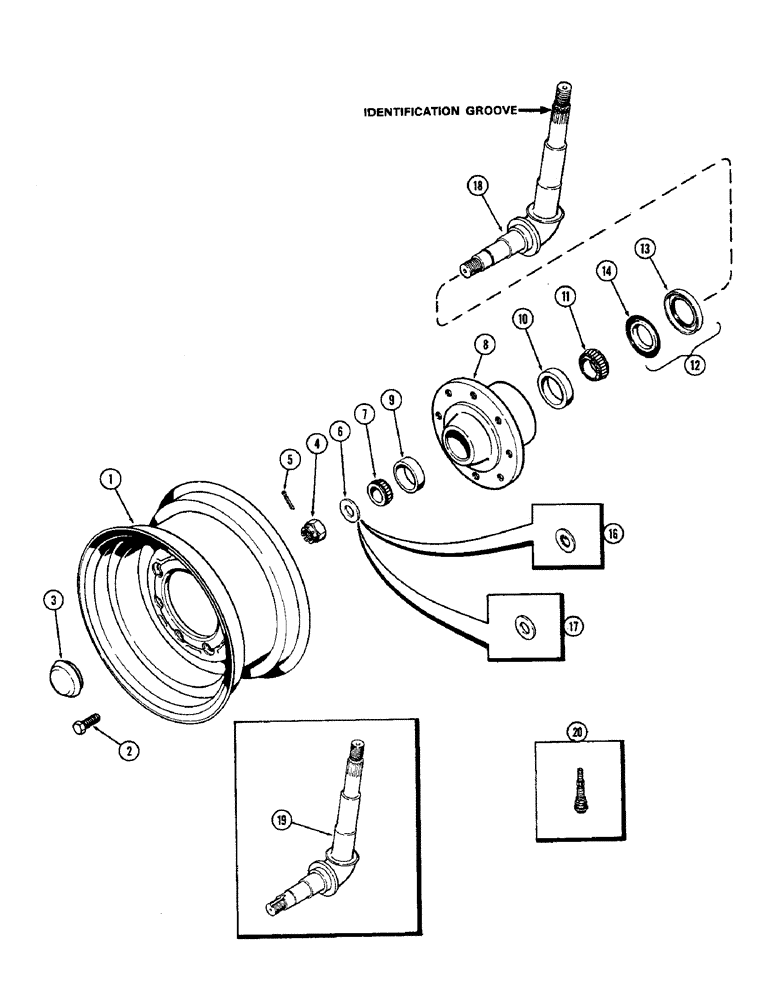

Запчасти Case 580B (156) - FRONT WHEELS, HUBS & SPINDLES (05) - STEERING

1

A39117

WHEEL

- takes 7.50 X 16 tire (Replaces A39528)

2шт.

1

A39118

RIM

WHEEL - takes 11 x 16 tire

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - lug, front wheel (Replaces A62567)

16шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex., sltd.

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing

2шт.

8

A51157

HUB

- front wheel (Replaces A39144)

2шт.

9

A27631

CUP

- outer bearing

2шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

2шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing

2шт.

12

A57250

OIL SEAL

KIT - seal, front wheel, Inlcudes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - inner half (Order ref. 12)

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - outer half (Order ref. 12)

1шт.

16

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- hub nut (1-9/64 x 2 x 3/16") (Used w/A135648 spindle)

2шт.

17

A26789

BEARING WASHER

WASHER - hub nut (1-9/64 x 2 x 3/16") (Used w/A57248 spindle w/keyway)

1шт.

18

A135648

SPINDLE

- front wheel (w/o keyway & w/identification groove) (Replaces A39821)

2шт.

19

A57248

SPINDLE

- front wheel, R.H. & L.H. (w/keyway) (Order A135648 spindle & A62918 washer)

1шт.

20

A38261

VALVE

- tubeless tire

1шт.
