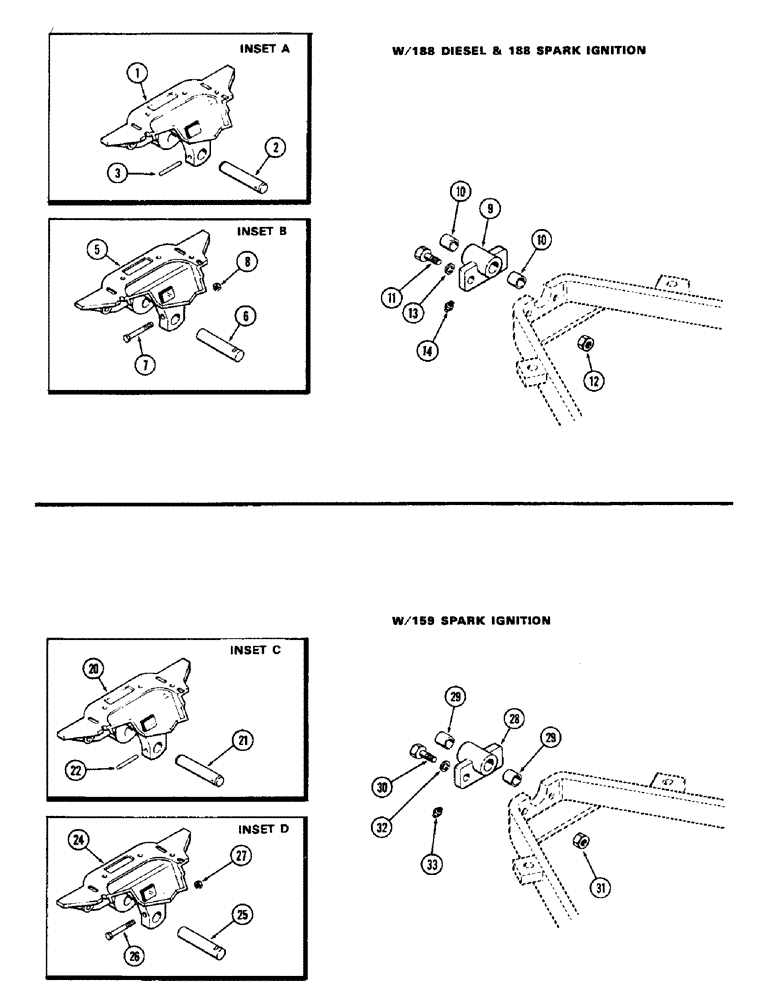

Запчасти Case 580B (155A) - FRONT AXLE REAR PIVOT, WITH 188 DIESEL & 188 SPARK IGNITION ENG (05) - STEERING

1

A38425

PAN

oil (Used with A51356 pivot pin and 135-361 groove pin) (See inset A) (Order A51539 oil pan, A51537 pivot pin, 26-544 bolt & 131-351 nut)

1шт.

2

A51356

PIN

rear pivot

1шт.

3

135-361

GROOVED PIN,1/4" x 2", Type F

1/4" x 2", Type F

1шт.

5

A51539

PAN

oil (Used with A51537 pivot pin, 26-544 bolt & 131-531 nut) (See inset B)

1шт.

6

A51537

PIN

rear pivot

1шт.

7

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- 5/16 x 2-3/4" N.C. hex.

1шт.

8

131-351

LOCK NUT,5/16"-18, GA

lock, 5/16" N.C. hex.

1шт.

9

A38199

PIVOT

ASSY. - rear, radius rod, Inlcudes: Ref. 10

1шт.

10

A29944

BUSHING

rear pivot

2шт.

11

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

12

25-1010

NUT,5/8"-11, G5

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. 45 degrees

1шт.

20

A38426

PAN

oil (Used with A51356 pivot pin and 135-361 groove pin) (Order inset C) (Order A51538 oil pan, A51356 pivot pin, 26-544 bolt & 131-351 nut), w/ 159 spark ignition eng.

1шт.

21

A51356

PIN

rear pivot, w/ 159 spark ignition eng.

1шт.

22

135-361

GROOVED PIN,1/4" x 2", Type F

w/ 159 spark ignition eng. 1/4" x 2", Type F

1шт.

24

A51538

PAN

oil (Used with A51537 pivot pin, 26-5 44 bolot, & 131-351 nut) (See inset D), w/ 159 spark ignition eng.

1шт.

25

A51537

PIN

rear pivot, w/ 159 spark ignition eng.

1шт.

26

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- 5/16 x 2-3/4" N.C. hex., w/ 159 spark ignition eng.

1шт.

27

131-351

LOCK NUT,5/16"-18, GA

lock, 5/16" N.C., w/ 159 spark ignition eng.

1шт.

28

A38199

PIVOT

ASSY. - rear, radius rod, w/ 159 spark ignition eng., Inlcudes: Ref. 29

1шт.

29

A29944

BUSHING

rear pivot, w/ 159 spark ignition eng.

2шт.

30

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

w/ 159 spark ignition eng. Hex, 5/8"-11 x 2 1/4", G5

2шт.

31

25-1010

NUT,5/8"-11, G5

w/ 159 spark ignition eng. 5/8"-11, G5

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , w/ 159 spark ignition eng. 5/8"

2шт.

33

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. 45 degrees, w/ 159 spark ignition eng.

1шт.
