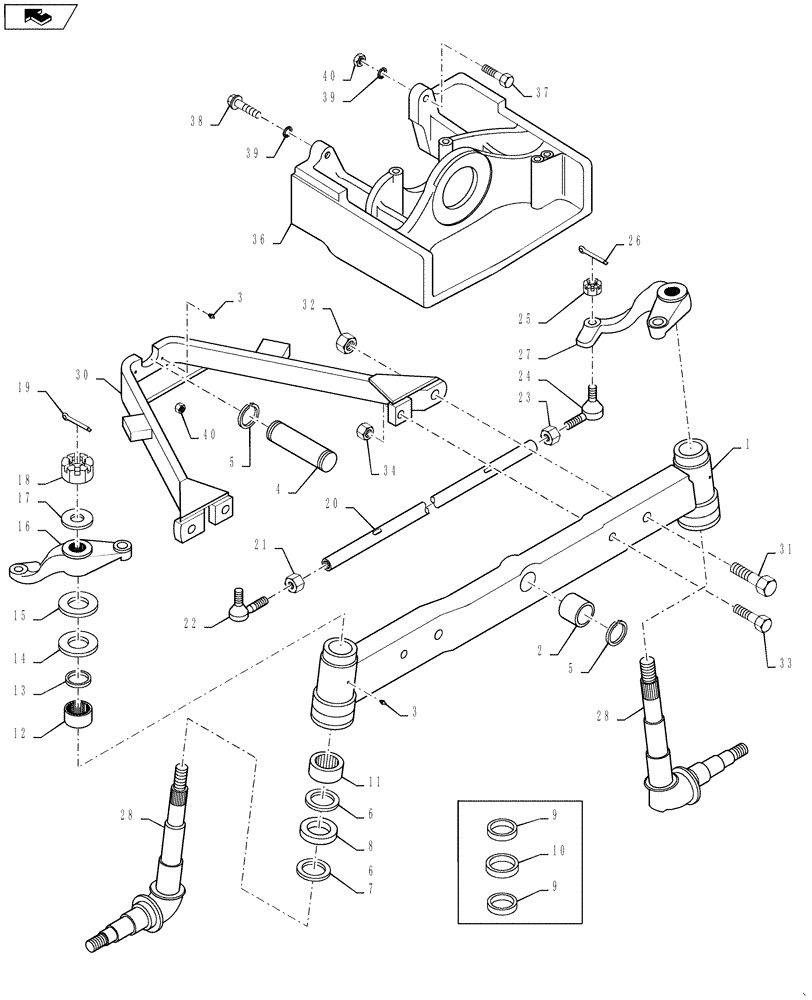

Запчасти Case 580B (154) - FRONT AXLE ASSEMBLY (05) - STEERING

1

A38382

AXLE, FRONT

ASSY. - front, Includes: Ref. 2

1шт.

A38382 axle assy - The castings at each end of this axle (which spindles go through) are NSS.

1шт.

2

A36282

BUSHING,44.3mm ID x 56.21mm OD x 50.8mm L

Pivot

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

P.T. str.

3шт.

4

A38384

PIN,44.09mm OD x 168.4mm L

Pivot (w/grease fitting hole)

1шт.

5

A27085

RING

Snap, pivot pin

2шт.

6

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

Thrust (1/4" thick, see inset) (See ref. 7)

4шт.

7

A44603

BEARING WASHER,50.93mm ID x 66.55mm OD x 9.53mm Thk

Thrust (3/8" thick, see inset) (Used thrust bearing trac. S/N's 8711518 thru 8716638)

2шт.

8

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

(2 x 2-15/16 x 5/8") (See ref. 9 & 10)

2шт.

9

NSS

NOT SOLD SEPARAT

WASHER - thrust (Prod. only) (Order A27602)

4шт.

10

NSS

NOT SOLD SEPARAT

WASHER - thrust (Prod. only) (Order A27602)

2шт.

11

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

Lower, 2 x 2-3/8 x 1"

2шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

Upper, 1-3/4 x 2-1/8 x 1"

2шт.

13

A27754

OIL SEAL

Oil, upper, 1-3/4 x 2-1/8 x 3/16"

2шт.

14

A51533

GUARD

SHIELD - dust (Replaces A35344)

2шт.

15

A35345

SHIM,.0359" Thk

Spindle (#20 gauge)

1шт.

15

A35346

SHIM,.0598" Thk

Spindle (16 gauge)

1шт.

15

A35861

SHIM,.0149" Thk

Spindle (28 gauge)

1шт.

16

A137742

ARM

Steering, RH (Replaces A37926)

1шт.

17

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

Spindle nut

2шт.

18

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

2шт.

19

132-97

COTTER PIN,3/16" x 1 3/4"

2шт.

20

A39120

TIE-ROD

TIE ROD TUBE

1шт.

21

G49084

JAM NUT

11/16"-23 hex. lock (RH thread)

1шт.

22

G45368

END ASSY.

Tie rod, RH

1шт.

23

G49085

JAM NUT

11/16"-23 hex., lock (LH thread)

1шт.

24

G45369

END ASSY.

Tie rod, LH

1шт.

25

25-139

SLOTTED NUT,9/16"-18, G5

2шт.

26

132-50

COTTER PIN,1/8" x 1 1/4"

2шт.

27

A137741

ARM

Steering, LH (Replaces A37927)

1шт.

28

REF

INSTRUCTION

SPINDLE - wheel (See Figure 156)

2шт.

30

A36283

ROD

RADIUS

1шт.

31

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

32

25-1616

NUT,1"-8, G5, Hvy

2шт.

33

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

34

25-1012

NUT,3/4"-10, G5

2шт.

36

A39319

SPARE PART SUPPORT - front axle & radiator

1шт.

37

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

38

A38303

BOLT

5/8 x 3-13/64" N.C. hex.

1шт.

38

A135977

STEP BOLT

5/8 x 3-1/4" N.C. hex, shoulder

1шт.

39

193-34

LOCK WASHER,Int Tooth, 5/8"

Shakeproof, 5/8" ext.

4шт.

40

25-1610

NUT,5/8"-11, G5, Hvy

2шт.
