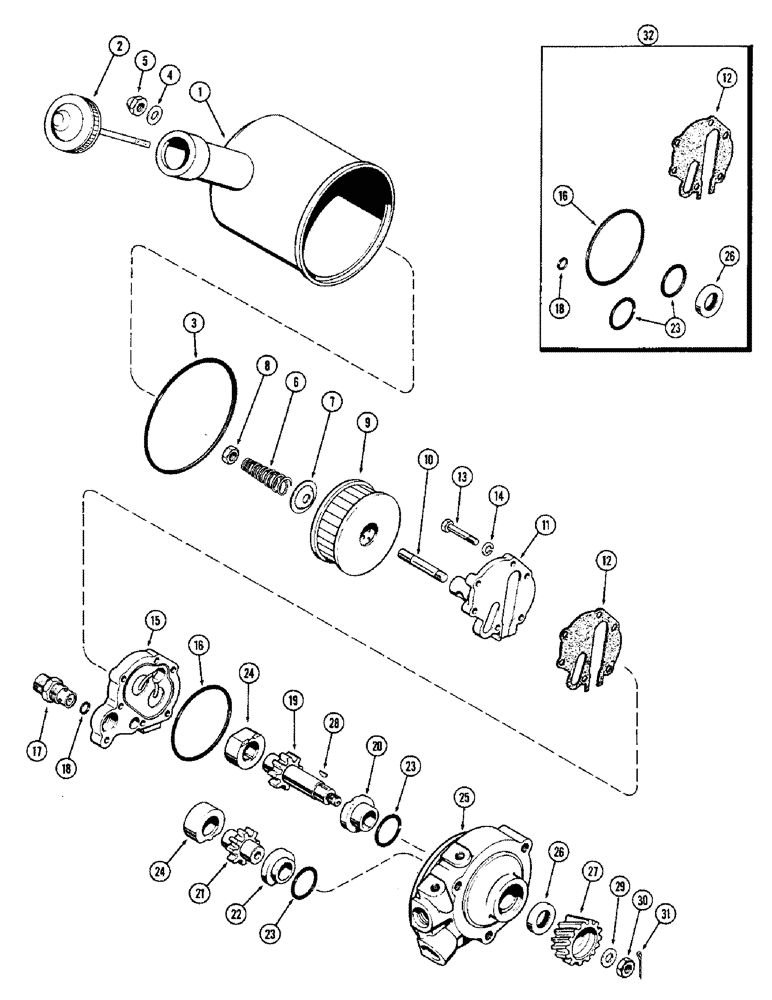

Запчасти Case 580B (150) - A36559 POWER STEERING PUMP (05) - STEERING

A137187

PUMP

ASSY. - power steering (Replaces A36559), Inlcudes: Ref. 1 - 31

1шт.

1

A35951

RESERVOIR

- oil

1шт.

2

A35967

GAUGE

CAP - reservoir (Includes dipstick)

1шт.

2

A35967AM

DIPSTICK

CAP - reservoir (Includes dipstick)

1шт.

3

A35965

O-RING,2.87mm Thk x 120.27mm ID

GASKET - reservoir

1шт.

4

A42164

WASHER,9.93mm ID x 25.4mm OD x 2.31mm Thk

- reservoir nut (Replaces A35961)

1шт.

5

129-525

CROWN NUT,Crown, 3/8"-16

- 3/8" N.C. acorn

1шт.

6

A35963

SPRING

- element tension

1шт.

7

A35962

CAP

SEAT - element spring

1шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.C. hex., jam

1шт.

9

A42242

FILTER, ELEMENT

ELEMENT - filter (Metal)

1шт.

10

A35952

STUD

- 3/8" N.C. x 2-3/8"

1шт.

11

A35950

COVER

- pump, rear

1шт.

12

A35966

GASKET

- rear cover

1шт.

Part of seal kit P/N A35970

1шт.

13

26-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 8

- 1/4 x 1-5/8" N.C. hex.

6шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

15

A35949

COVER

- pump, intermediate

1шт.

16

A35959

O-RING,2.55" ID x 2.756" OD x 0.103"

"O" RING - 2-9/16 x 2-3/4 x 3/32"

1шт.

Part of seal kit P/N A35970

1шт.

17

A137188

LOCK VALVE

VALVE ASSY. - relief (Replaces A35968)

1шт.

18

A42187

O-RING,0.426" ID x 0.566" OD x 0.07"

"O" RING - 5/16 x 7/16 x 1/16"

1шт.

Part of seal kit P/N A35970

1шт.

19

A25593

GEAR

- driven

1шт.

20

A35957

BEARING

- gear, front

1шт.

21

A35954

GEAR

- pump

1шт.

This is part nbr A35954 gear (now replaced by A185086 gear). Not listed on Figure 151 in error.

1шт.

22

A35955

BEARING

- idler gear front

1шт.

23

A35958

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING - 1-1/6 x 1-1/4 x 3/32"

12шт.

Part of seal kit P/N A35970

1шт.

24

A35956

BEARING

- rear

2шт.

25

A35948

BODY

- front

1шт.

26

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, 3/4 x -1/4 x 1/4" (Replaces G13827)

1шт.

Part of seal kit P/N A35970

1шт.

27

A25594

GEAR

- pump drive

1шт.

A25594 pump drive gear - This gear has 14 helical teeth.

1шт.

28

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

29

195-25

WASHER,3/8"

- 13/32 x 13/16 x 5/64"

1шт.

30

F18390

NUT

- 3/8" N.F. hex. sltd.

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

A35970

KIT

- seal, Includes Refs. 12, 16, 18, 23 and 26

1шт.
