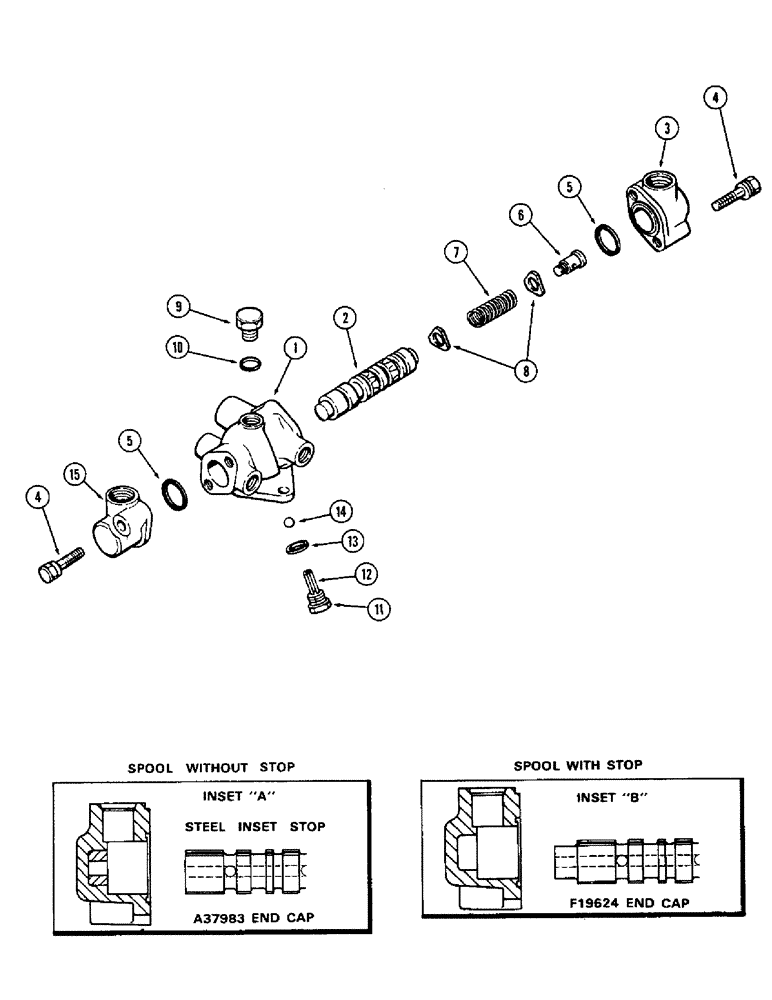

Запчасти Case 580B (148) - A37980 CONTROL VALVE (05) - STEERING

A37980

VALVE

ASSY. - control, Inlcudes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - (Order A37980)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - (Order A37980)

1шт.

3

F19624

CAP

- end (See ref. 15)

1шт.

4

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap, Sems

4шт.

5

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap

2шт.

6

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

7

F19622

VALVE SPRING

SPRING - centering

1шт.

8

F19619

WASHER

- spring retaining

2шт.

9

129998

PLUG,1/2" - 20 ORB

Assy, Top, Valve body (Replaces F83122) Hex Hd, 1/2"-20 ORB

1шт.

10

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, plug (Replaces F19628)

2шт.

11

F82943

VALVE

PLUG ASSY. - relief valve, Inlcudes: Ref. 12 - 14

1шт.

12

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

13

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, relief plug, Replaces F19630

1шт.

14

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

1шт.

15

F19624

CAP

- end, w/o stop (See note)

1шт.

15

A37983

CAP

- end, w/stop (See note)

1шт.
