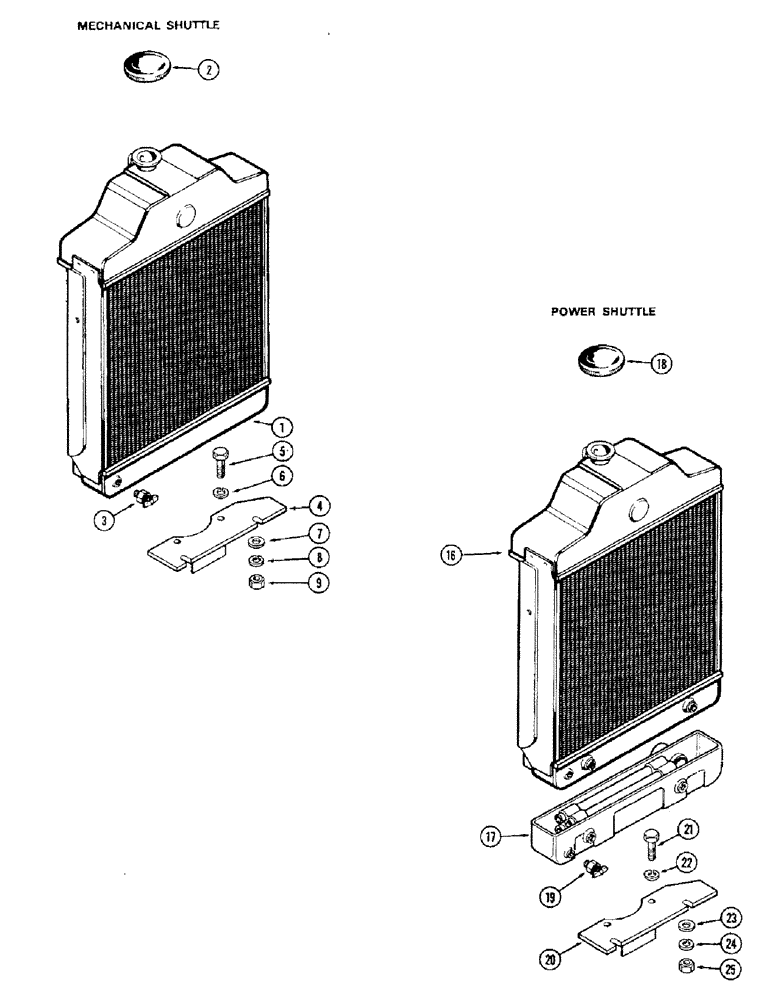

Запчасти Case 580B (010) - RADIATOR, (188) DIESEL ENGINE, MECHANICAL SHUTTLE, POWER SHUTTLE (02) - ENGINE

1

A39344

RADIATOR

RADIATOR - mechanical shuttle

1шт.

2

A39359

CAP

CAP - radiator, mechanical shuttle

1шт.

3

217-103

COCK, DRAIN

VALVE - radiator, mechanical shuttle

1шт.

4

A35574

BRACKET

BRACKET - radiator support, mechanical shuttle

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Mechanical shuttle

2шт.

6

92-8

LOCK WASHER,1/2"

Mechanical shuttle

2шт.

7

195-25

WASHER,3/8"

Mechanical shuttle

2шт.

8

92-6

LOCK WASHER,3/8"

mechanical shuttle

2шт.

9

25-106

NUT,3/8"-16, G5

WASHER - lock, 3/8" N.C. hex., mechanical shuttle

2шт.

16

A39345

RADIATOR

RADIATOR ASSY., power shuttle, Includes: Ref. 17

1шт.

17

G45484

RESERVOIR

TANK - lower, w/cooler tubes, power shuttle

1шт.

18

A39359

CAP

CAP - radiator, power shuttle

1шт.

19

217-103

COCK, DRAIN

VALVE - radiator drain, power shuttle

1шт.

20

A35574

BRACKET

BRACKET - radiator support, power shuttle

1шт.

21

13-813

BOLT - 1/2 x 1" N.C. hex., power shuttle

2шт.

22

92-8

LOCK WASHER,1/2"

Power shuttle

2шт.

23

195-25

WASHER,3/8"

Power shuttle

2шт.

24

92-6

LOCK WASHER,3/8"

power shuttle

2шт.

25

25-106

NUT,3/8"-16, G5

WASHER - 3/8" N.C. hex., power shuttle

2шт.
