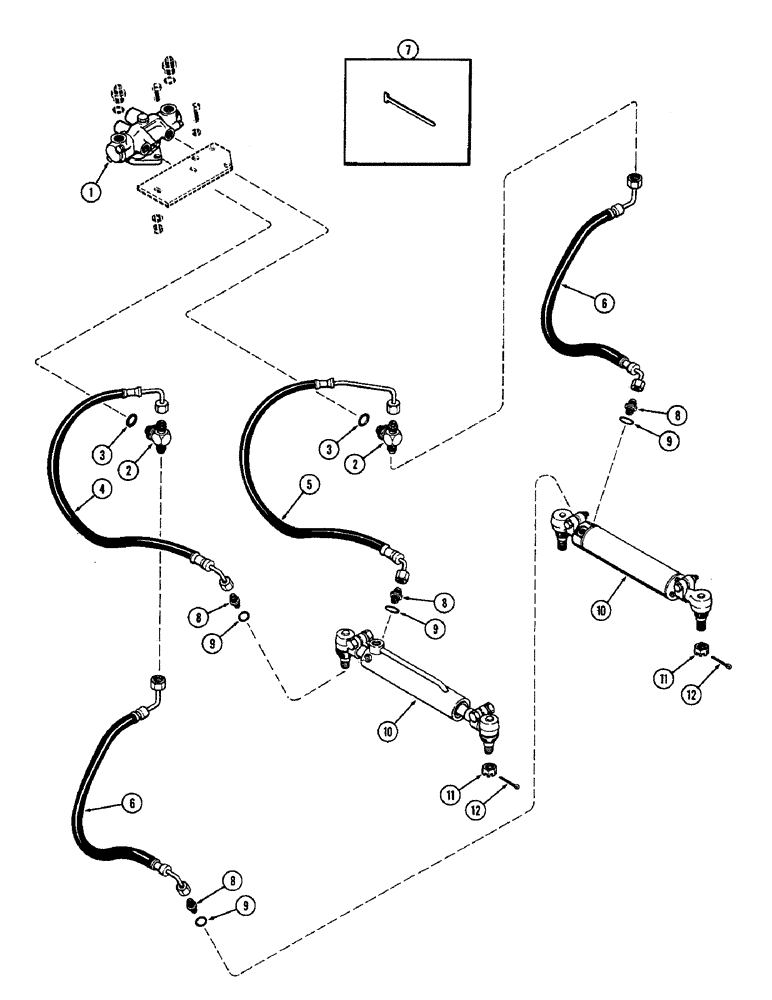

Запчасти Case 580B (144) - STEERING SYSTEM CIRCUITRY, HOSES AND CYLINDERS (05) - STEERING

1

A37980

VALVE

ASSY. - control (See Figure 148)

1шт.

2

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - hose to valve, Inlcudes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

A35616

HOSE

- valve to R.H. cylinder outer port (36-1/4" long)

1шт.

5

A35614

HOSE

- valve to R.H. cylinder inner port (39-5/8" long)

1шт.

6

A35615

HOSE

- valve to L.H. cylinder (32-1/2" long)

2шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - hose

2шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY. - hose to cylinder, Incl. Ref. 9

4шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

REF

INSTRUCTION

CYLINDER ASSY. - steering (See Figures 152 & 153A)

2шт.

11

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex., sltd.

4шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" str. (Steering cylinder)

2шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - lube, 1/8", 67-1/2" (Steering cylinder)

2шт.
