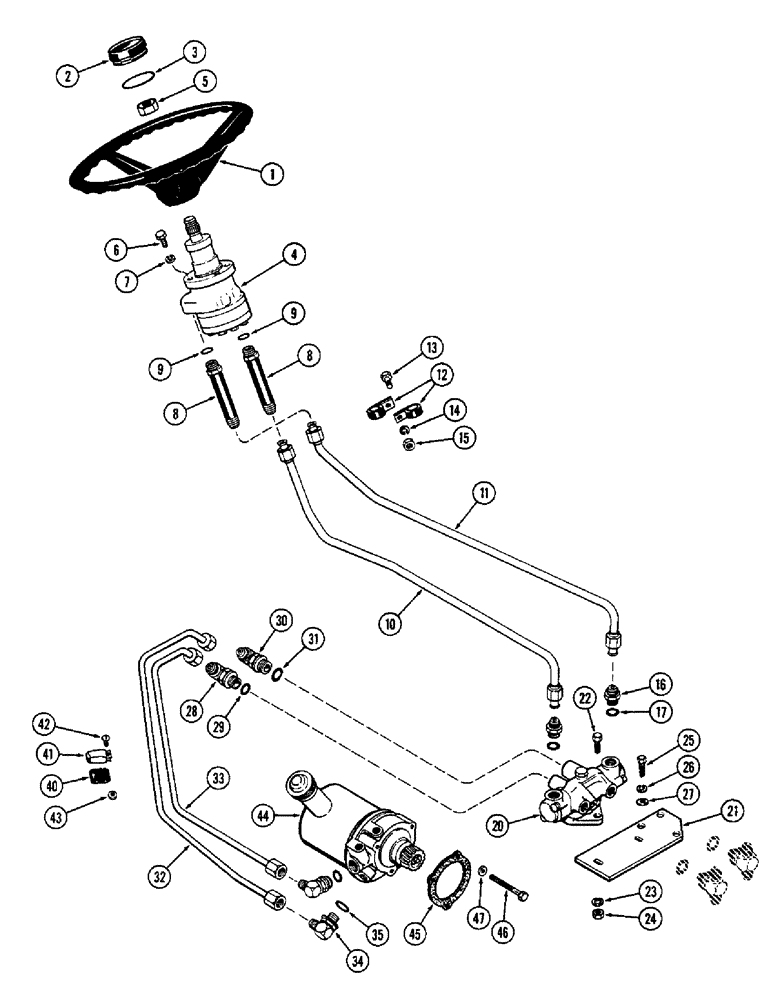

Запчасти Case 580B (142) - STEERING SYSTEM CIRCUITRY, TUBES, PUMPS, AND VALVE (05) - STEERING

1

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

2

A62210

PLUG

MEDALLION - steering wheel

1шт.

3

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - 2-1/8 x 2-3/8 x 1/8"

1шт.

D26115 O-ring - If medallion is sloppy in steering wheel use A29884 O-ring (subs to 238-5229).

1шт.

4

REF

INSTRUCTION

PUMP ASSY. - steering hand (See Figure 146)

1шт.

5

A14567

JAM NUT

- steering wheel retaining

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

A39108

HOSE

ASSY. - pump tubes, 9-1/2" long, Inlcudes: Ref. 9

2шт.

10

A39492

TUBE

- pump to valve, R.H.

1шт.

11

A39493

TUBE

- pump to valve, L.H.

1шт.

12

49838

CLAMP

- pump tubes

2шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

1шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Assy, Tube to valve, Incl. Ref 17 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

20

A37980

VALVE

ASSY. - control (See Figure 148)

1шт.

21

A35581

SPLIT PIN/SAFETY PIN

PLATE - valve mounting

1шт.

22

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

- 3/8 x 1-1/4" N.C. hex.

3шт.

23

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

24

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

2шт.

28

A51764

ELBOW

ASSY. - press, tube to valve (Replaces A35613), Inlcudes: Ref. 29

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy - return tube to valve (Replaces A37080), Includes: Ref. 31 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

32

A35733

TUBE

- return, pump to valve (Used w/diesel mech. & power shuttle & gas power shuttle)

1шт.

32

A35731

TUBE - return, pump to valve (Used w/gas mech. shuttle)

1шт.

33

A35732

TUBE

- pressure, pump to valve (Used w/diesel mech. & power shuttle & gas power shuttle)

1шт.

33

A35730

TUBE ASSY.

TUBE - pressure, pump to valve (Used w/gas mech. shuttle)

1шт.

34

A37080

ELBOW

ASSY. - tube to pump, Inlcudes: Ref. 35

2шт.

40

G46835

GROMMET

- rubber, tube clamp

1шт.

41

G46194

CLAMP

- tube

1шт.

42

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #10-32 x 3/4" Phillips hd.

1шт.

43

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex., Keps

1шт.

44

REF

INSTRUCTION

PUMP ASSY. - power (See Figure 150)

1шт.

45

A30042

GASKET

- pump

1шт.

46

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

47

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/16 x 5/64"

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/16 x 5/64"

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/16 x 5/64"

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/16 x 5/64"

1шт.
