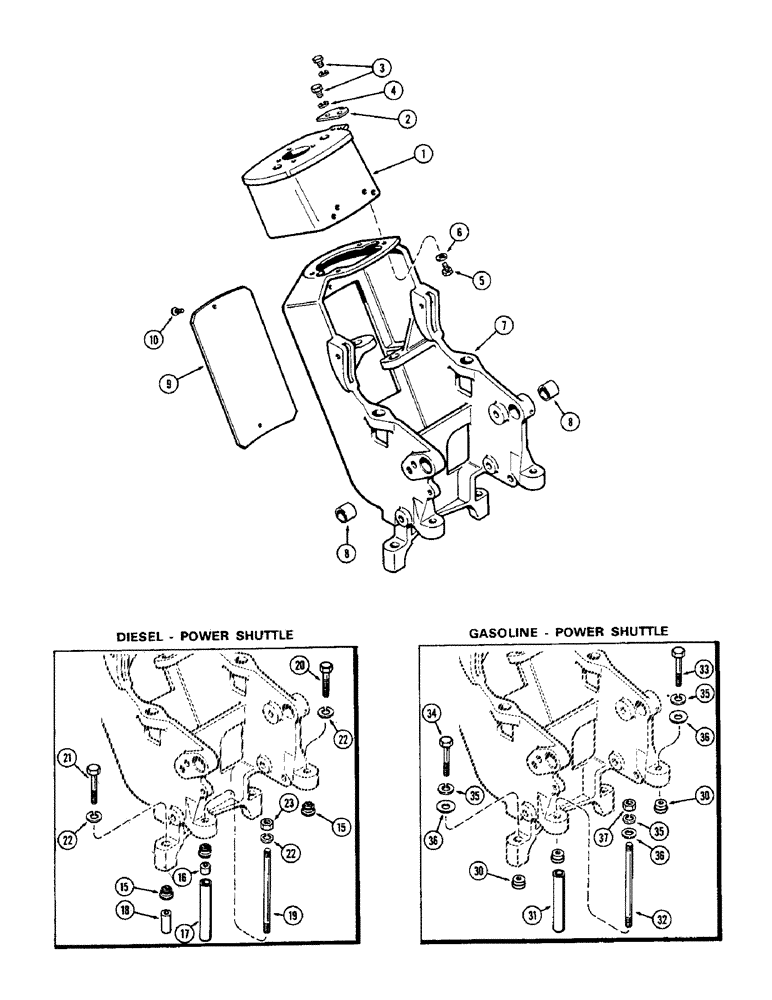

Запчасти Case 580B (140) - STEERING COLUMN AND SUPPORT, POWER SHUTTLE, SUPPORT MOUNTING DSL, GASOLINE (05) - STEERING

1

A39310

STEERING COLUMN

COLUMN - steering

1шт.

2

A135382

PLATE ASSY.

PLATE - shuttle lock (Replaces A38298)

1шт.

3

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

7

A39380

SUPPORT

ASSY. - steering column, Inlcudes: Ref. 8

1шт.

8

A37530

BUSHING

- cross shaft, brake pedal

2шт.

9

A39384

COVER - steering support

1шт.

10

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" N.C. truss hd.

2шт.

15

G45343

COMPOSITE RING

BUSHING - mounting (w/rubber insert)

4шт.

16

A37418

SPACER

- support, front (1/2" high)

2шт.

17

A38488

SPACER

- support, R.H. front (3-7/8" high)

1шт.

18

G49622

SPACER,5/8" Tube x 1 7/16"

- support, rear

2шт.

19

A29437

STUD

- 3/8" N.C. x 6-3/8", R.H. front

1шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

L.H. front Hex, 3/8"-16 x 1 3/4", G5

1шт.

21

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex., rear

2шт.

22

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

30

A35627

BUSHING

- mounting (Flanged, steel)

4шт.

31

A38488

SPACER

- support, R.H. front (3-7/8" high)

1шт.

32

A29437

STUD

- 3/8" N.C. x 6-3/8", R.H. front

1шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

L.H. front Hex, 3/8"-16 x 1 3/4", G5

1шт.

34

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex., rear

2шт.

35

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

36

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

37

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.
