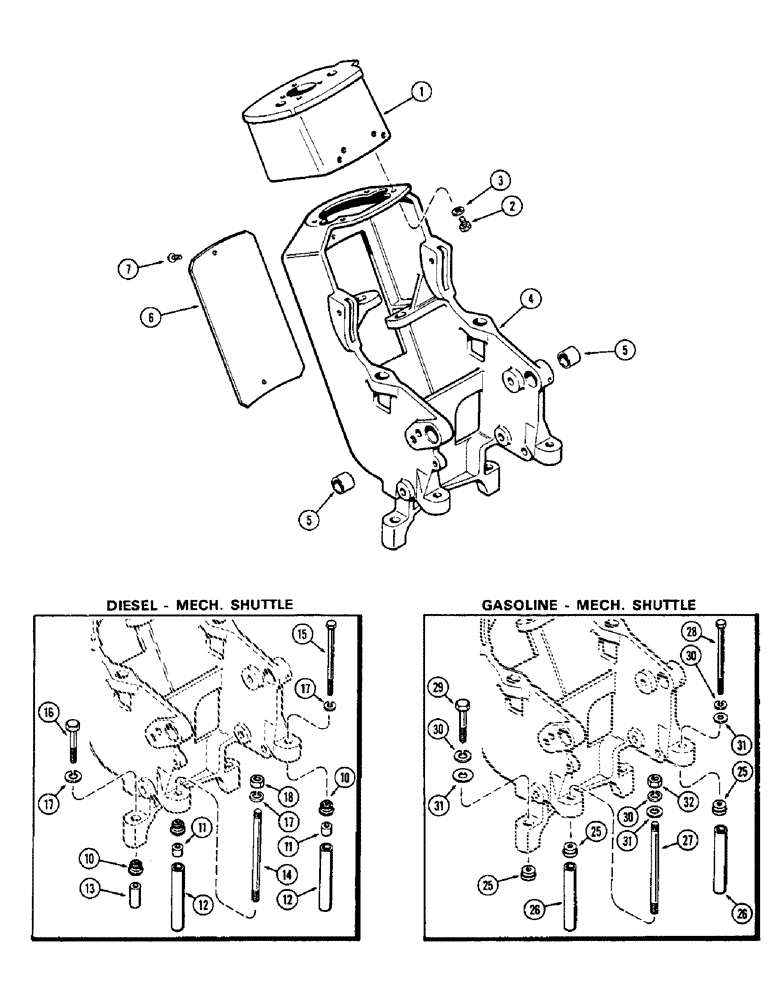

Запчасти Case 580B (138) - STEERING COLUMN AND SUPPORT, MECHANICAL SHUTTLE (05) - STEERING

1

A39310

STEERING COLUMN

steering

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

4шт.

4

A39380

SUPPORT

ASSY. - steering column, Inlcudes: Ref. 5

1шт.

5

A37530

BUSHING

cross shaft, brake pedal

2шт.

6

A39384

steering suppport

1шт.

7

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

1/4 x 1/2" N.C. truss hd.

2шт.

10

G45343

COMPOSITE RING

(w/rubber insert), support mounting diesel

4шт.

11

A37418

SPACER

- support, front (1/2" high), support mounting diesel

2шт.

12

G49624

SPACER

support, front (4-7/8" high), support mounting diesel

2шт.

13

G49622

SPACER,5/8" Tube x 1 7/16"

support, rear (1-7/16" high), support mounting diesel

2шт.

14

A38169

STUD

3/8" N.C. x 7-3/16", R.H. front, support mounting diesel

1шт.

15

15-6108

3/8 x 6-3/4" N.C. hex., L.H. front, support mounting diesel

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex., rear, support mounting diesel

2шт.

17

92-6

LOCK WASHER,3/8"

WASHER - lock, , support mounting diesel 3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

3/8" N.C. hex., support mounting diesel

1шт.

25

A35627

BUSHING

mounting (Flanged, steel), gasoline

4шт.

26

G49624

SPACER

front (4-7/8" high), gasoline

2шт.

27

A38169

STUD

3/8" N.C. x 7-3/16", R.H. front, gasoline

1шт.

28

15-6108

3/8 x 6-3/4" N.C. hex., L.H. front, gasoline

1шт.

29

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex., rear, gasoline

2шт.

30

92-6

LOCK WASHER,3/8"

WASHER - lock, , gasoline 3/8"

4шт.

31

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", gasoline

4шт.

32

25-106

NUT,3/8"-16, G5

3/8" N.C. hex., gasoline

1шт.
