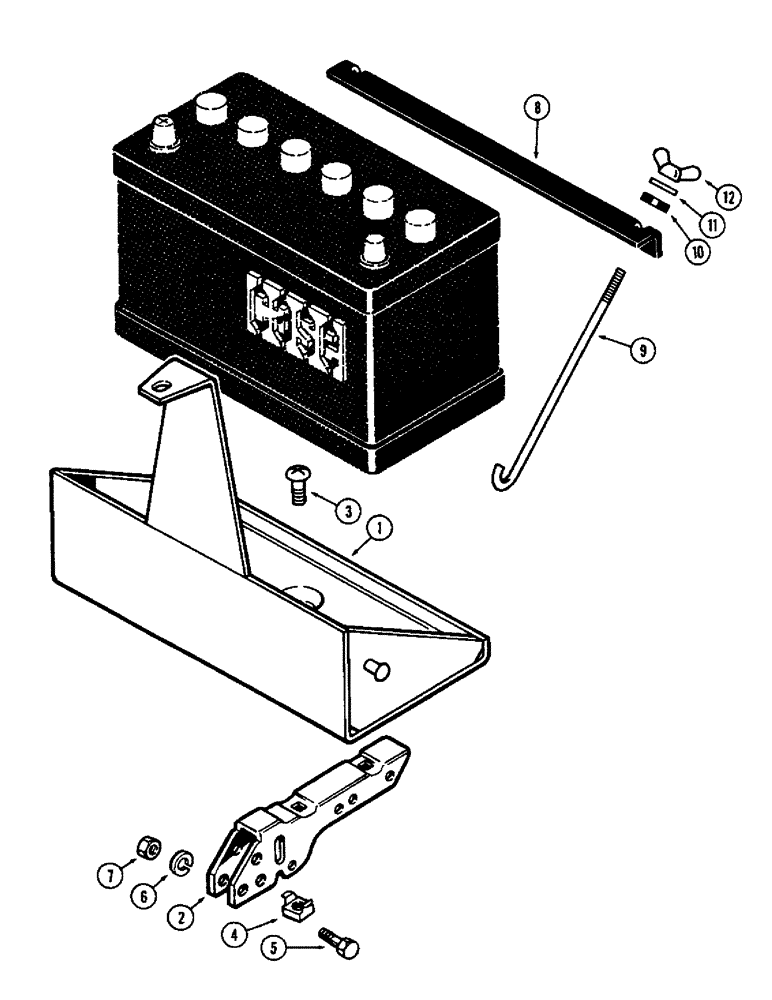

Запчасти Case 580B (136) - BATTERY SUPPORTS (04) - ELECTRICAL SYSTEMS

1

D49731

CASE

WRAPPER ASSY. - battery

1шт.

2

A37365

SUPPORT

- battery box

1шт.

3

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" truss hd., mach.

2шт.

4

1502286C2

NUT,Floating Cage, 5/16"-18

- 5/16" N.C. retaining

2шт.

5

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- 3/8 x 1-1/4" N.C. hex.

3шт.

6

92-6

LOCK WASHER,3/8"

WASHER - lock, 3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

8

D49724

ANGLE

- battery hold down

1шт.

9

D49723

BOLT

- battery hold down

2шт.

10

G46867

GROMMET

- hold down bolt

2шт.

11

G49400

WASHER

- 13/32 x 1-5/32 x 10 ga.

2шт.

12

129-410

WING NUT,3/8"-16

NUT - 3/8" wing

2шт.
