Запчасти Case 580B (134) - A18461 DISTRIBUTOR (04) - ELECTRICAL SYSTEMS

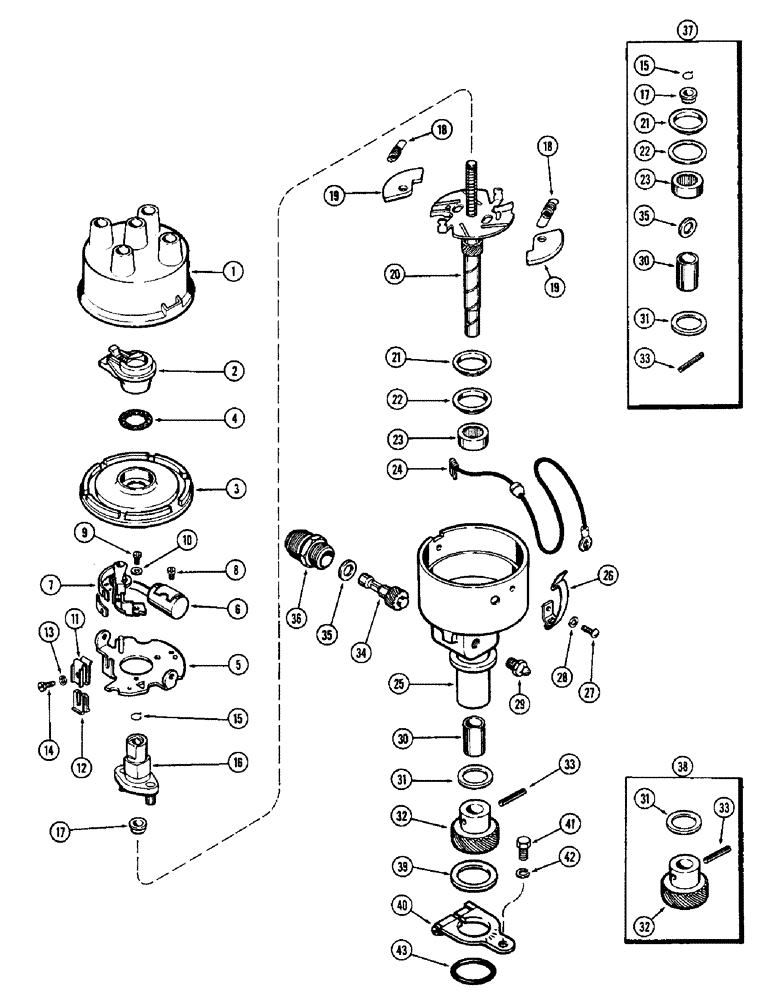

Схема запчастей Case 580B - (134) - A18461 DISTRIBUTOR (04) - ELECTRICAL SYSTEMS
23
31
43
17
16
27
15
19
5
31
9
30
7
39
34
6
35
42
21
22
13
19
26
1
29
14
17
28
32
4
12
3
2
20
33
38
15
41
31
24
35
8
10
37
18
33
22
36
30
32
11
23
40
21
18
25
33

Артикул

Название

Примечание

Количество

A18461

DISTRIBUTOR

ASSY. - (Auto-Lite #IBT-4403-A), Inlcudes: Ref. 1 - 43

1шт.

1

A24564

CAP

ASSY. - distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

COVER ASSY. - breaker plate, Inlcudes: Ref. 4

1шт.

4

A24764

WASHER

SEAL - felt, cover

1шт.

5

A40330

PLATE

ASSY. - breaker, Inlcudes: Ref. 6 and 7

1шт.

A40930

KIT

CONTACT KIT, Inlcudes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

7

NSS

NOT SOLD SEPARAT

POINTS - contact breaker (Order A40930)

1шт.

8

A24776

SCREW,Locking, #8 - 32 x 3/16"

- #6-32 x 5/32" fillister hd.

1шт.

9

A24779

SCREW - #8-32 x 3/16" fillister hd.

2шт.

10

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

11

A24774

CLIP

- primary wire

1шт.

12

A44287

KIT

INSULATOR - primary wire (Replaces A24773)

1шт.

13

195-506

WASHER,#6

- 5/32 x 5/16 x 1/32"

1шт.

14

A24775

SCREW,0.138"-32 x 1/32"

- #6-32 x 5/8" hex.

1шт.

15

A24756

RING - snap, cam retaining (See ref. 37)

1шт.

16

A42429

PLATE - cam & stop

1шт.

17

A24757

SPACER - cam (See ref. 37)

1шт.

18

A24778

SPRING KIT

- governor (Set of 2)

1шт.

19

A41388

WEIGHT - governor

2шт.

20

A25979

SHAFT

- drive, distributor

1шт.

21

A24758

WASHER - thrust, inner (see ref. 37)

1шт.

22

A24759

WASHER - thrust, outer (See ref. 37)

1шт.

23

A24767

BEARING

- needle (See ref. 37)

1шт.

24

A25965

HARNESS

WIRE - primary lead

1шт.

25

NSS

NOT SOLD SEPARAT

BASE - distributor

1шт.

26

A40329

SPRING

LOCK KIT - cap retainer

1шт.

27

A24775

SCREW,0.138"-32 x 1/32"

- #8-32 x 5/16" rd. hd. cap lock

2шт.

28

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

29

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - lube, 1/4"-20, 90 degrees

1шт.

30

A24766

BUSHING

BEARING - drive shaft, bronze (See ref. 37)

1шт.

31

A25200

WASHER

- thrust, lower (See ref. 37 & 38)

1шт.

32

NSS

NOT SOLD SEPARAT

GEAR - drive (Order ref. 38)

1шт.

33

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, , Drive gear (See ref. 37 & 38) (Replaces A25201) 1/8" x 11/16", Slotted

1шт.

34

A24761

SHAFT

& GEAR - tachometer drive

1шт.

35

A24755

WASHER - thrust, tach. drive (See ref. 37), Inlcudes: Ref. 36

1шт.

36

A24781

HOUSING - tach. drive gear

1шт.

37

A40326

PACKAGE, REPAIR

KIT - drive shaft repair (Incl. items 15, 17, 21 thru 23, 30, 33 & 35)

1шт.

38

A40323

GEAR

KIT - drive gear repair repair (Incl. items 31 thru 33)

1шт.

39

A30080

THRUST WASHER

- thrust

1шт.

40

A29989

ARM

- advance

1шт.

41

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

43

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - 1-1/16 x 1-5/16 x 1/8"

1шт.

Выбрано товаров: 45
