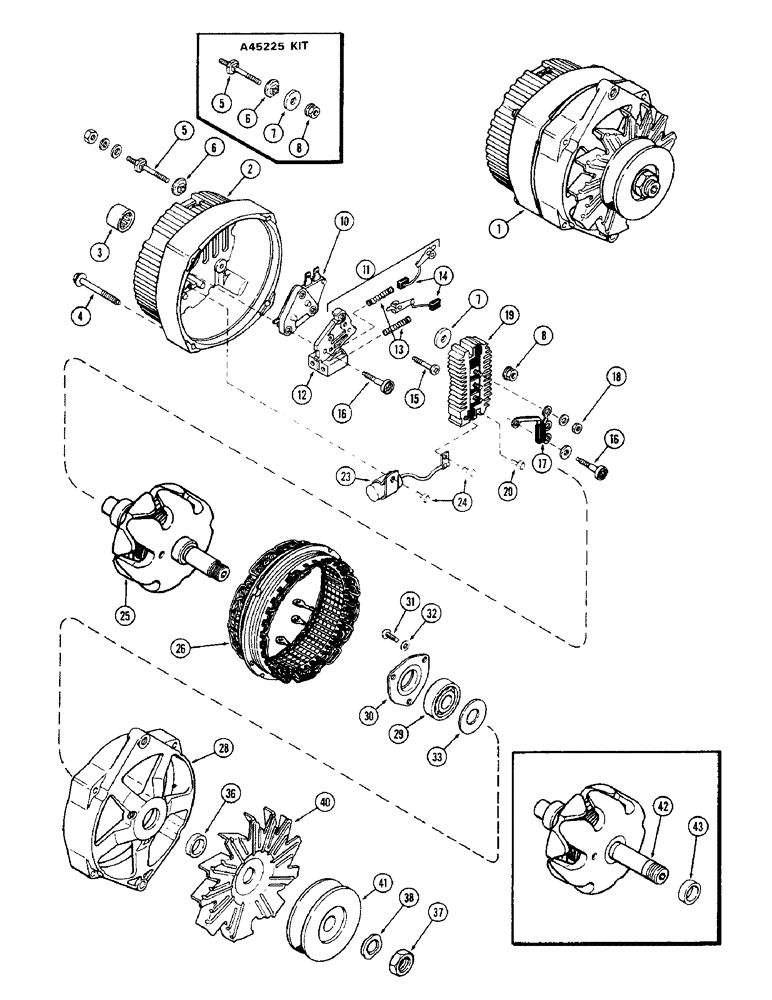

Запчасти Case 580B (133A) - ALTERNATOR, DELCO-REMY (04) - ELECTRICAL SYSTEMS

1

A139389

ALTERNATOR

ALTERNATOR - 37 amp (Delco #1102898) (Prod. only) (Order A45210, A43384 fan & A51561 pulley) (Replaces A135714), Inlcudes: Ref. 2 - 38

1шт.

A45201

ALTERNATOR

ALTERNATOR - 42 amp (Delco #1100583) (Repairs only) (Less pulley & fan), Inlcudes: Ref. 2 - 38

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Part Number

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT 63 AMP Alternator

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Part Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 61 AMP Alternator

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR - 12 Volt 35 AMP

1шт.

87746858

REMAN-ALTERNATOR

580B w/Shuttle Trans.

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 35 AMP Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297306

REMAN-GENERATOR

Remanufactured 12 VOLT, 20 AMP Generator

1шт.

87297307

CORE-GENERATOR

Return Part Number, 12 VOLT, 20 AMP Generator

1шт.

104450A1R

REMAN-GENERATOR

Remanufactured 12 VOLT 20 AMP Generator

1шт.

104450A1C

CORE-GENERATOR

Return Part Number, 12 VOLT, 20 AMP Generator

1шт.

2

A45217

FRAME

FRAME ASSY. - slip ring end, Inlcudes: Ref. 3

1шт.

3

A45218

BEARING ASSY

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru, #10-24 x 1-3/4" hex. washer hd.

4шт.

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Inlcudes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

6

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSY.

2шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH BRUSH HOLDER ASSY. - (Includes brushes)

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A43678

SPRING

SPRING - brush

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH - generator

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

SCREW - brush holder, grounded (#8-32 x 1-1/16")

1шт.

16

A44223

GEAR

SCREW - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER BRIDGE - (Replaces A45220)

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge (#8-32 x 1")

1шт.

23

A45226

CAPACITOR

CAPACITOR ASSY. - (Includes bracket)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor (#8-32 x 3/8")

2шт.

25

A45391

ROTOR

ROTOR ASSY. - (Includes slip rings (See ref. 42)

1шт.

26

A45233

STATOR

STATOR ASSY.

1шт.

28

A45229

FRAME

FRAME - drive end

1шт.

29

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE ASSY. - bearing retainer, w/felt seal

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - bearing plate, #10-24 x 3/8" rd. hd.

3шт.

32

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16"

4шт.

33

A45232

WASHER

WASHER - grease slinger, bearing

1шт.

36

A72047

COLLAR

COLLAR - outer, rotor shaft (43/64 I.D. x 7/8" O.D. x 13/64")

1шт.

37

A25546

NUT

NUT - pulley &, Serial Range: fan-shaft

1шт.

38

R16171

SPRING WASHER

WASHER - lock

1шт.

40

A43384

FAN

FAN - alternator

1шт.

41

A51561

PULLEY

PULLEY - drive, alternator

1шт.

42

A45214

ROTOR

ROTOR ASSY. - (w/o slip rings) (Order A45391)

1шт.

43

A44522

COLLAR

COLLAR - rotor shaft inner, 43/64 x 29/32 x 23/64" (Used w/A45214 rotor) (See ref. 42)

1шт.
