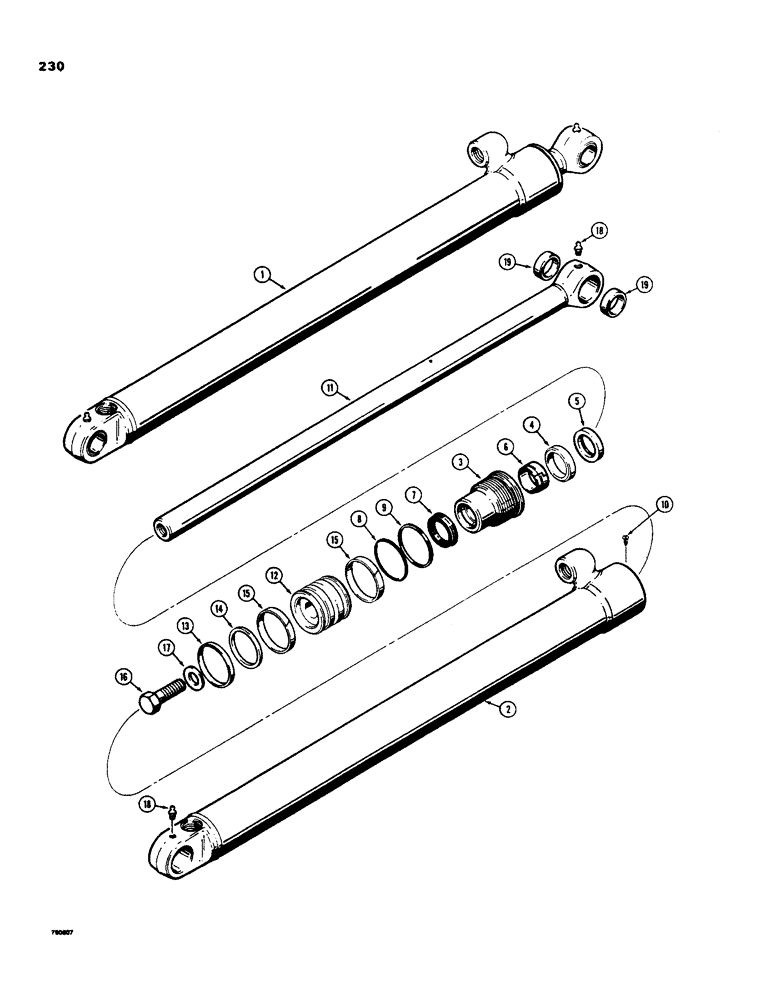

Запчасти Case 35 (230) - G101544 AND G101545 LOADER LIFT CYLINDERS, WITH ONE PIECE PISTON

1

G101544

CYLINDER

ASSEMBLY - lift, RH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke see footnote, Includes: Ref. 2 - 17

1шт.

1

G101545

CYLINDER BLOCK

CYLINDER ASSEMBLY - lift, LH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, see footnote, Includes: Ref. 2 - 17

1шт.

2

D48616

TUBE

- RH cylinder

1шт.

2

D48617

BODY

TUBE - LH cylinder

1шт.

G34328

GLAND

ASSEMBLY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

6

G34302

BEARING

- center

1шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

7

D36969

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G100776

1шт.

8

30095

O-RING - gland

1шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

9

32122

RING - backup

1шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self- tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G35006

ROD

- piston, 1-1/2" (38 mm) diameter, Includes: Ref. 11A

1шт.

11a

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

12

G100442

PISTON

- cylinder

1шт.

13

102288

SEAL piston

1шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

14

100444

RING - backup

1шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of seal kit P/N G102404

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

HHCS - 3/4" - 16 NF 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT

2шт.

G102404

SEAL

KIT - seal, Includes Refs. 5, 6, 7, 8, 9, 13, 14 and 15

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.
