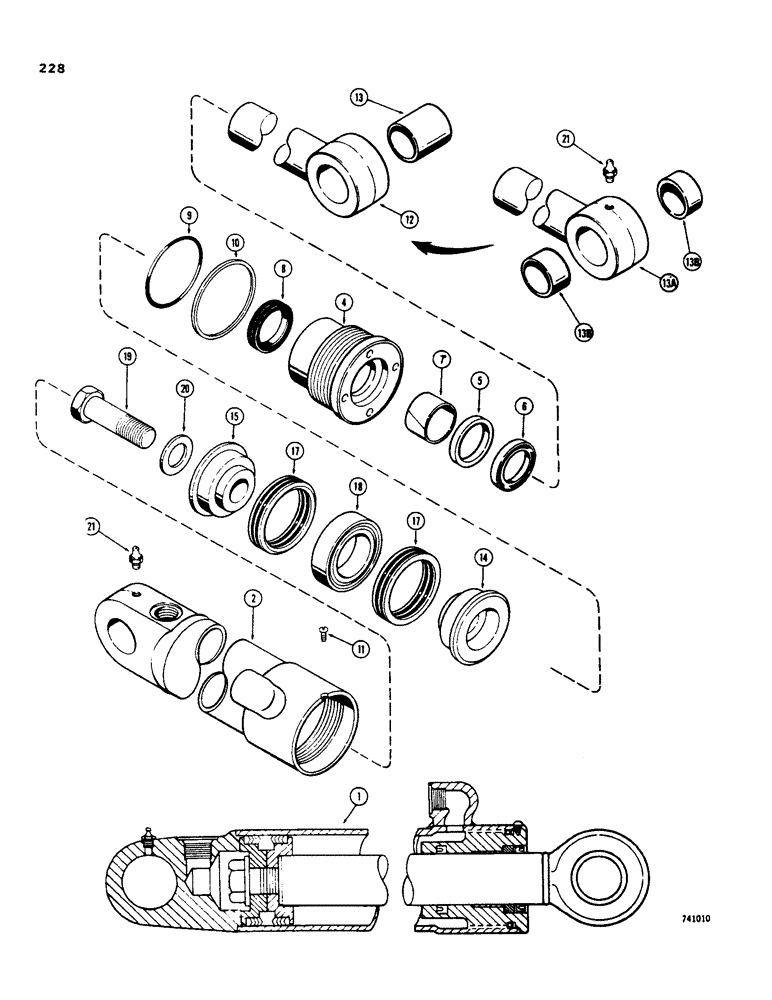

Запчасти Case 35 (228) - G33443, G33444, G35004 AND G35005, LOADER LIFT CYLINDERS

1

G33443

CYLINDER

ASSEMBLY - lift, RH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, cylinder does not have grease fitting in rod eye, order G101544, Includes: Ref. 2 - 21

1шт.

1

G33444

CYLINDER

ASSEMBLY - lift, LH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, cylinder does not have grease fitting in rod eye, order G101545, Includes: Ref. 2 - 21

1шт.

1

G35004

CYLINDER

ASSEMBLY - lift, RH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, cylinder does not have grease fitting in rod eye, order G101544, Includes: Ref. 2 - 21

1шт.

1

G35005

CYLINDER

ASSEMBLY - lift, LH 3" (76 mm) ID x 31-1/2" (800 mm) stroke, cylinder does have grease fitting in rod eye, order G101545, Includes: Ref. 2 - 21

1шт.

2

D48616

TUBE

- cylinder body RH

1шт.

2

D48617

BODY

TUBE - cylinder body, LH

1шт.

3

RESERVED

1шт.

G34328

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER -piston rod, outer

1шт.

Part of seal kit P/N G34332

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

7

G34302

BEARING

- center

1шт.

Part of seal kit P/N G34332

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

8

36969

HOSE

SEAL - piston rod

1шт.

Part of seal kit P/N G34332

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G100776

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34332

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland

1шт.

Part of seal kit P/N G34332

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no.8-32 NC x 1/4"

1шт.

12

G33445

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, rod does not have grease fitting in rod eye, order G35006, Includes: Ref. 13

1шт.

13

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod

1шт.

13a

G35006

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter rod does have grease fitting in rod eye, order G35006, Includes: Ref. 13B

1шт.

13b

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod eye

2шт.

14

G33150

PISTON

- split, rod end

1шт.

15

D28366

PISTON

- split, bolt end

1шт.

16

RESERVED

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 17 and 18

1шт.

Part of seal kit P/N G34332

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex 3/4" - 16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- haardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1-2шт.

G34332

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10 and G33151

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.
