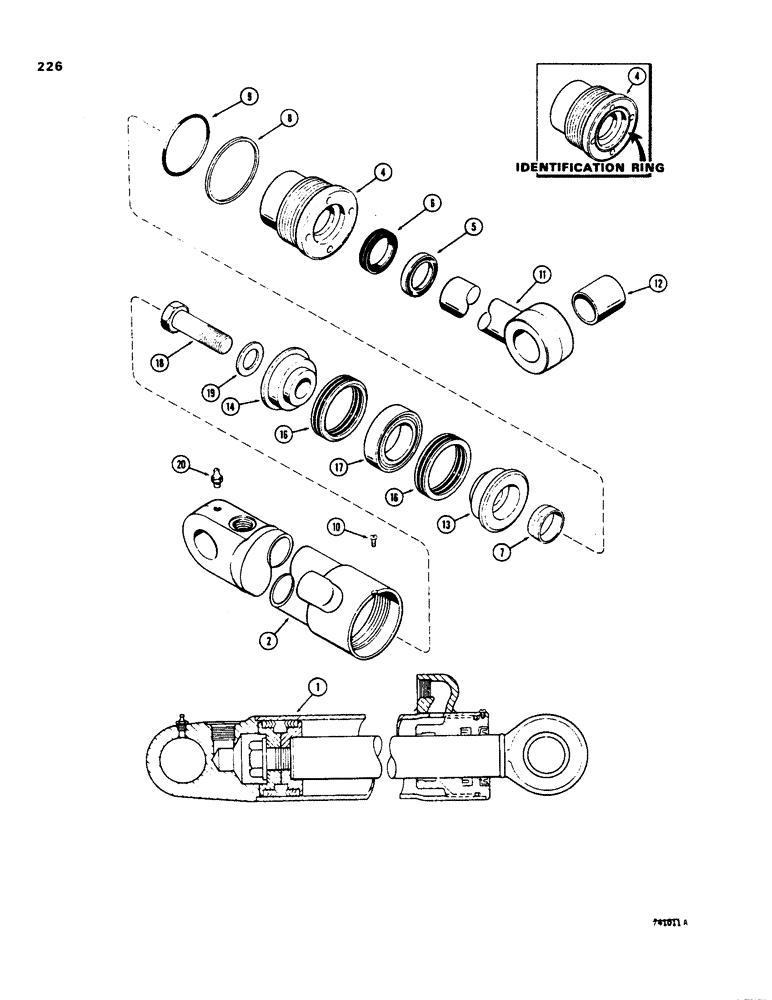

Запчасти Case 35 (226) - G33443 AND G33444 LOADER LIFT CYLINDERS

1

G33443

CYLINDER

ASSEMBLY - lift, RH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke order G101544, Includes: Ref. 2 - 20

1шт.

1

G33444

CYLINDER

ASSEMBLY - lift, LH, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, order G101545, Includes: Ref. 2 - 20

1шт.

2

D48617

BODY

TUBE - cylinder body, LH

1шт.

2

D48616

TUBE

- cylinder body, RH

1шт.

3

G33485

GLAND

ASSEMBLY - order G34328, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

6

D36969

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G34332

1шт.

Part of seal kit P/N G100776

1шт.

Gland has identification ring.

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33445

ROD

ASSSEMBLY - piston, 1-1/2" (38 mm) diameter, order G35006, Includes: Ref. 12

1шт.

12

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- piston rod

1шт.

13

G33150

PISTON

- spilt, rod end, with identification ring

1шт.

14

D28366

PISTON

- split, bolt end

1шт.

15

33151

PACKING ASSEMBLY - piston, not shown, Includes: Ref. 16 and 17

1шт.

Part of seal kit P/N G34332

1шт.

Gland has identification ring.

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8"NPT

1шт.

G34332

SEAL

KIT - seal, Includes Refs. 5, 6, 7, 8, 9 and 15 replaces G32292

1шт.

Gland has identification ring.

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.

Gland has identification ring.

1шт.
