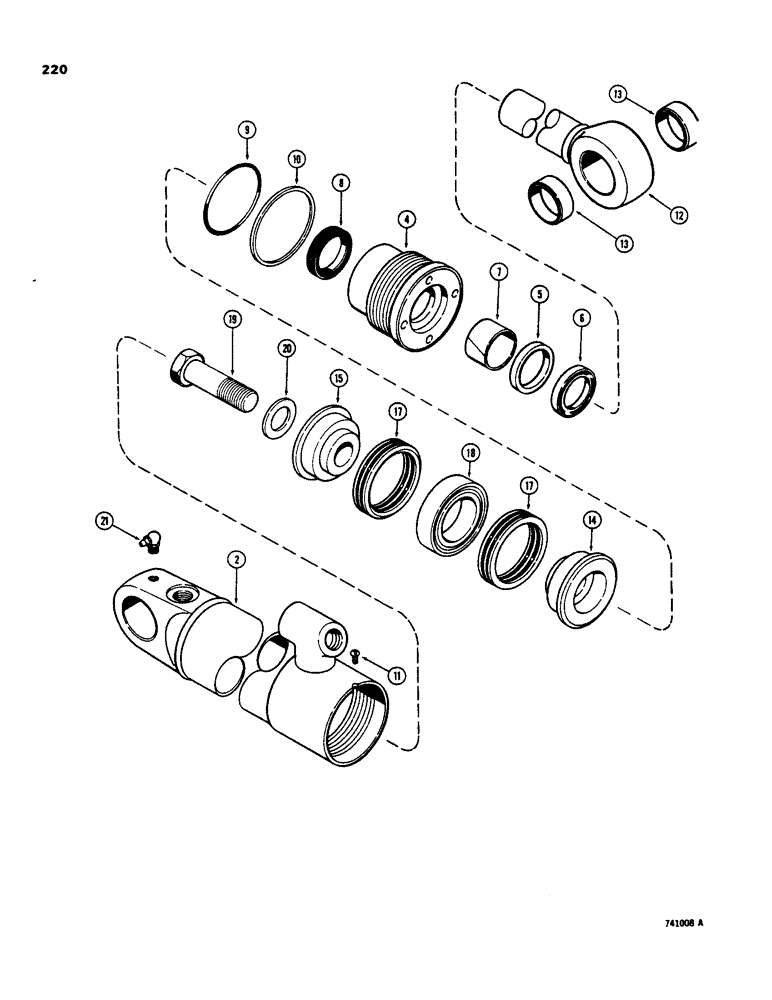

Запчасти Case 35 (220) - G33558 LOADER HYDRA-LEVELING CYLINDER, WITH TWO PIECE PISTON

1

G33558

CYLINDER

ASSEMBLY - hydra-leveling, 3" (76 mm) ID x 10" (254 mm) stroke not shown assembled, order G101541

1шт.

2

D48612

BODY

TUBE - cylinder body, Includes: Ref. 3 - 21

1шт.

3

G34633

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34642

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

BEARING - center

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34642

1шт.

8

36970

PRESSURE PIPE

SEAL - piston rod

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G100777

1шт.

Part of seal kit P/N G34642

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34642

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34642

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

G33559

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 13

1шт.

13

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

14

D33331

PISTON - spilt, rod end

1шт.

15

D28896

PISTON

- split, bolt end

1шт.

16

G33151

PACKING

ASSEMBLY - piston, not shown, Includes: Ref. 17 and 18

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

Part of seal kit P/N G34642

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34642

SEAL

KIT - seal, Includes Refs. 6, 7, 8, 9, 10 and 16

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.

Look for cylinder assembly part number to stamped on cylinder gland or tube.

1шт.
