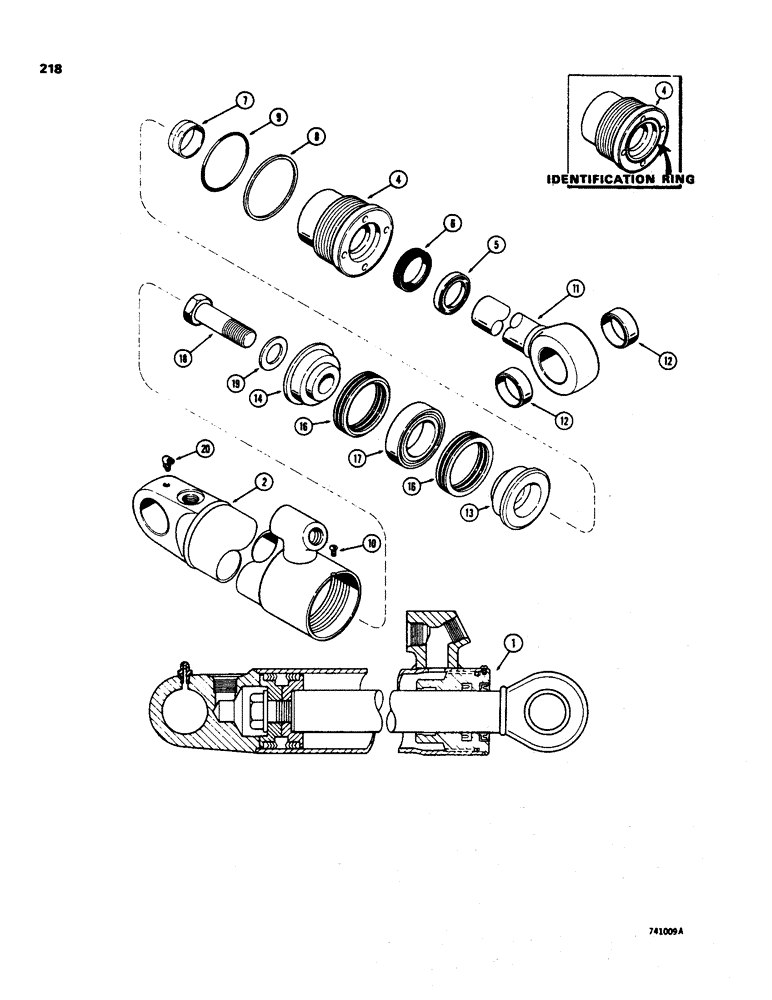

Запчасти Case 35 (218) - G33558 LOADER HYDRA-LEVELING CYLINDER, WITH TWO PIECE PISTON

1

G33558

CYLINDER

ASSEMBLY - hydra-leveling, 3" (76 mm) ID x 10" (254 mm) stroke, order G101541, Includes: Ref. 2 - 20

1шт.

2

D48612

BODY

TUBE - cylinder body

1шт.

3

G33579

COVER

GLAND ASSEMBLY - cylinder, order G34633, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - see inset A

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G34642

1шт.

Gland has identification ring.

1шт.

6

D36970

CUP

SEAL - piston rod

1шт.

Part of seal kit P/N G100777

1шт.

Part of seal kit P/N G34642

1шт.

Gland has identification ring.

1шт.

7

D27432

SHIM

- piston rod, inner

1шт.

Part of seal kit P/N G34642

1шт.

Gland has identification ring.

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

Part of seal kit P/N G34642

1шт.

Gland has identification ring.

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G34642

1шт.

Gland has identification ring.

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

11

G33559

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 12

1шт.

12

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

13

G33331

PISTON

- split, rod end with identification ring

1шт.

14

D28896

PISTON

- split, bolt end

1шт.

15

G33151

PACKING

ASSEMBLY - piston, not shown, Includes: Ref. 16 and 17

1шт.

Part of seal kit P/N G34642

1шт.

Gland has identification ring.

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34642

SEAL

KIT - seal, Includes Refs. 5, 6, 7, 8, 9 and 15 replaces G32289

1шт.

Gland has identification ring.

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.

Gland has identification ring.

1шт.
