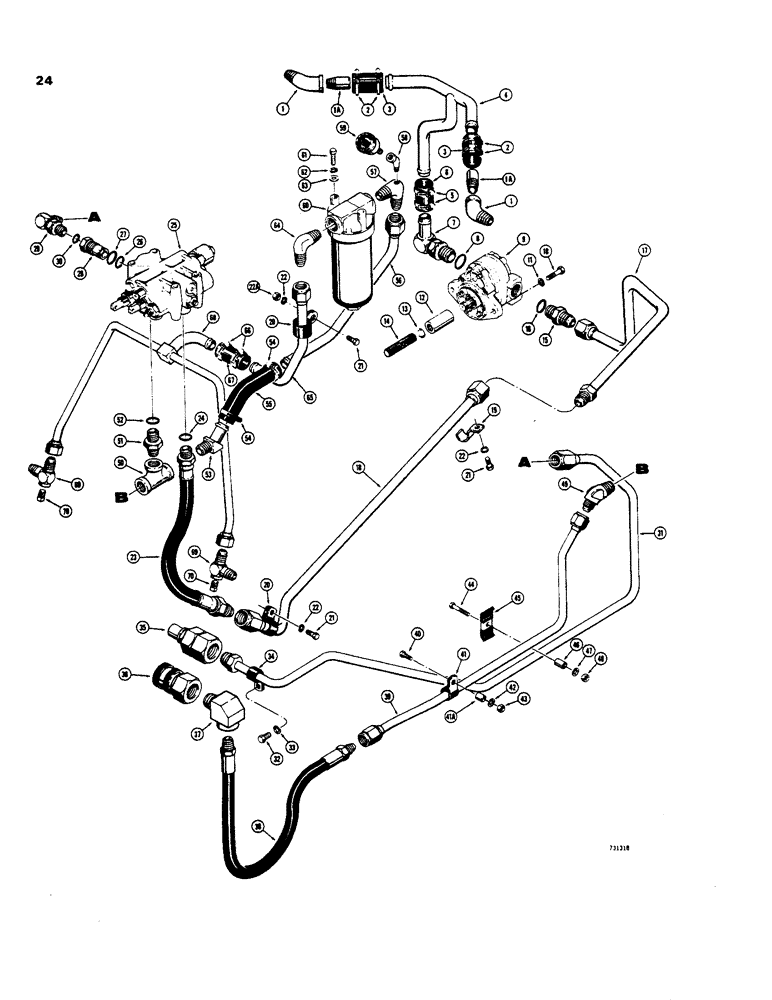

Запчасти Case 35 (024) - PRIMARY HYDS, USED ON MDLS W/ HYDROSTATIC DRIVE LOADER SN 5228454 & AFT

1

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

ELBOW - street, 45 degree

2шт.

1a

D33363

FITTING

STEM - hose, straight

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

18361

HOSE,1.25" ID x 5.00", SAE 100R3

- low pressure

2шт.

4

D54970

TUBE - reservoir to pump, tee type

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

18361

HOSE,1.25" ID x 5.00", SAE 100R3

- low pressure

1шт.

7

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, At pump, Includes Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

PUMP - hydraulic, see Figure 168

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, pump to pump drive shaft, Includes: Ref. 13

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D64311

SHAFT

- pump drive, see Figure 154 for units with pump alignment kit

1шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 16 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

D56593

TUBE - pump to valve, front

1шт.

18

D56591

TUBE

- pump to valve, rear

1шт.

19

D55880

CLAMP

- tube front

1шт.

20

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

2шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

22

92-6

LOCK WASHER,3/8"

3шт.

22a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

23

D54118

HOSE

- pump to valve, at valve, 26" (660 mm) long, Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

REF

INSTRUCTION

VALVE - loader control, see Figure 172 for proper valve, Includes: Ref. 26 - 28

1шт.

D61251

FITTING

CONNECTOR ASSEMBLY - power beyond

1шт.

26

L32680

RING

O-RING - small

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

28

NSS

NOT SOLD SEPARAT

CONNNECTOR - power beyond

1шт.

29

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 30 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

D548195

TUBE - valve to crossover hose

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

1шт.

35

D52694

QUICK MALE COUPLING

COULPING - quick disconnect, male half, parts list Figure 162

1шт.

36

D52800

COUPLING, QUICK, FEM

COUPLING - quick diconnect, female half, parts list Figure 162

1шт.

37

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

38

D49118

HOSE

- crossover, 33" (838 mm) long

1шт.

39

D60654

TUBE

- crossover, Serial Range: hose-valve

1шт.

40

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

41

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

1шт.

41a

L42723

SPACER

- tube clamp

1шт.

42

92-6

LOCK WASHER,3/8"

1шт.

43

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

44

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

1шт.

45

D41160

CLAMP

- tube

1шт.

46

L42723

SPACER

- clamp

1шт.

47

92-6

LOCK WASHER,3/8"

1шт.

48

25-106

NUT,3/8"-16, G5

- hex, 3/8" - NC

1шт.

49

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- male, straight

1шт.

50

221-425

FITTING,3/4" NPT

TEE - female

1шт.

51

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

CONNCETOR - male, straight, Includes: Ref. 52

1шт.

52

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

53

217-188

FITTING,45 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

STEM - hose, 45 degree

1шт.

54

21256

CLAMP - hose

2шт.

55

L43005

HOSE

- low pressure, to oil filter

1шт.

56

D56859

TUBE

-, Serial Range: valve-filter

1шт.

57

D55728

ELBOW UNION

ELBOW - 90 degree, special

1шт.

58

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- street, 45 degree, 1/8" NPT

1шт.

59

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

60

D43567

FILTER ASSY

ASSEMBLY - Hydraulic oil, parts list Figure 162

1шт.

61

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

62

92-8

LOCK WASHER,1/2"

2шт.

63

195-33

WASHER,1/2"

- flat 1/2"

2шт.

64

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- male. 90 degree

1шт.

65

D5537

TUBE - return, filter

1шт.

66

D5537

TUBE - return, filter

1шт.

67

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- low pressure, Serial Range: filter-reservoir

1шт.

68

D38627

TUBE

- crossover, at reservoir

1шт.

69

D28485

ELBOW UNION

TEE - at reservior

2шт.

70

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT, drain

2шт.
