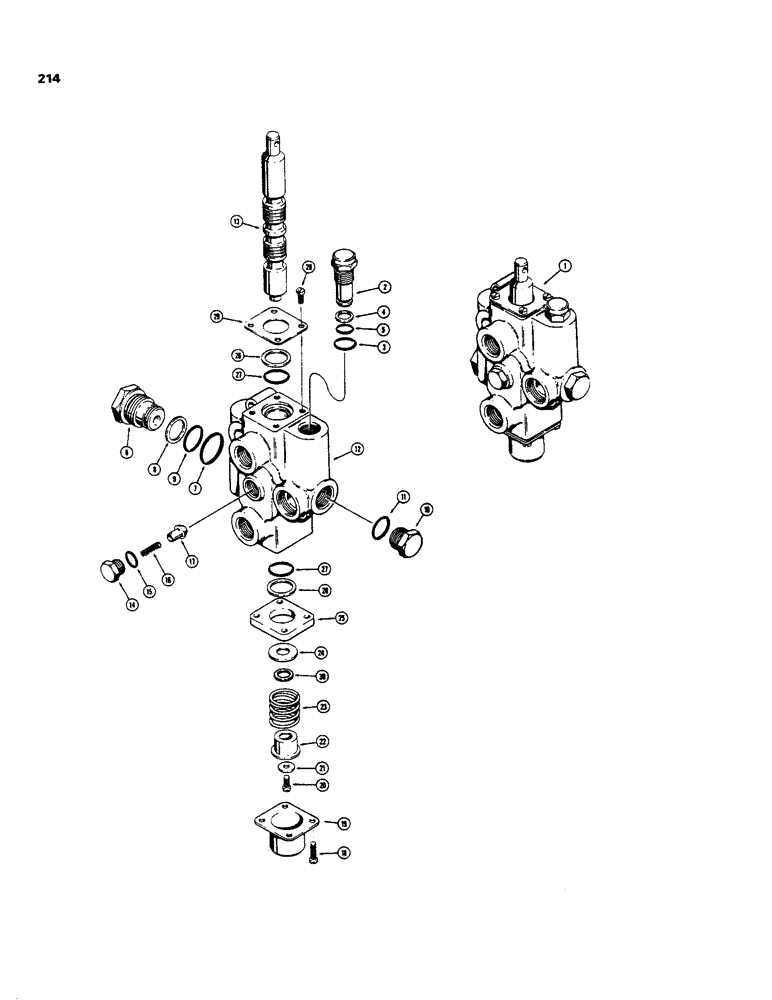

Запчасти Case 35 (214) - D65588 EXTENDAHOE CONTROL VALVE
№
Артикул
Название
Примечание
Количество
1
D65588
VALVE
ASSEMBLY - extendahoe control, Cross no. BA11AD2EF1, Includes: Ref. 2 - 30
1шт.
2
D54593
PLUG
- relief
1шт.
3
218-50007
O-RING - plug, outer
1шт.
4
L30443
BACK-UP RING,0.547" ID x 0.049" Width
- backup, O-ring seal
1шт.
5
A65918
O-RING,0.551" ID x 0.691" OD
- plug, inner
1шт.
6
D54844
PLUG
SLEEVE - beyond
1шт.
7
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- sleeve, outer
1шт.
8
D54800
O-RING
RING - backup, O-ring seal
1шт.
9
C14199
O-RING
- sleeve, inner
1шт.
10
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
Valve body, if used, Includes: Ref. 11 Hex Hd, 1 1/16"-12 ORB
1шт.
11
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
10
218-5159
PLUG,1-3/16" - 12 ORB
- valve body, hex head, 1-3/16" - 12 thread, if used, Includes: Ref. 11
1шт.
11
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
12
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
13
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
14
D54588
PLUG
- load check
1шт.
16
D54587
VALVE SPRING
SPRING - load check
1шт.
17
D54589
VALVE
CHECK - load
1шт.
18
169-156
SCREW,Sl Fil Hd, 1/4" - 20 x 3/4"
- machine, 1/4" -20 NC x 3/4"
4шт.
19
D54582
CYLINDER END CAP
CAP - spool end
1шт.
20
169-15
SCREW - machine, 1/4" - 20 NC x 1/2"
1шт.
21
195-102
WASHER,1/4"
- plain, , zinc plated 1/4"
1шт.
22
D54581
COLLAR CLAMP
COLLAR - spring retaining
1шт.
23
D66249
SPRING
- centering, spool
1шт.
24
195-2200
WASHER
- plain
1шт.
25
D54583
SPACER
- spool cap
1шт.
26
D54585
WASHER
- special, seal retaining
2шт.
28
169-155
SCREW,Sl Fil Hd, 1/4" - 20 x 1/2"
- machine, 1/4" - 20 NC x 1/2"
4шт.
29
D54584
STOP
PLATE - retaining, seal
1шт.
30
D66250
SHIM - centering spring, if used
1шт.
15
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- plug
1шт.
Выбрано товаров: 32
