Запчасти Case 35 (210) - D50420 CROSS STABILIZER CONTROL VALVE

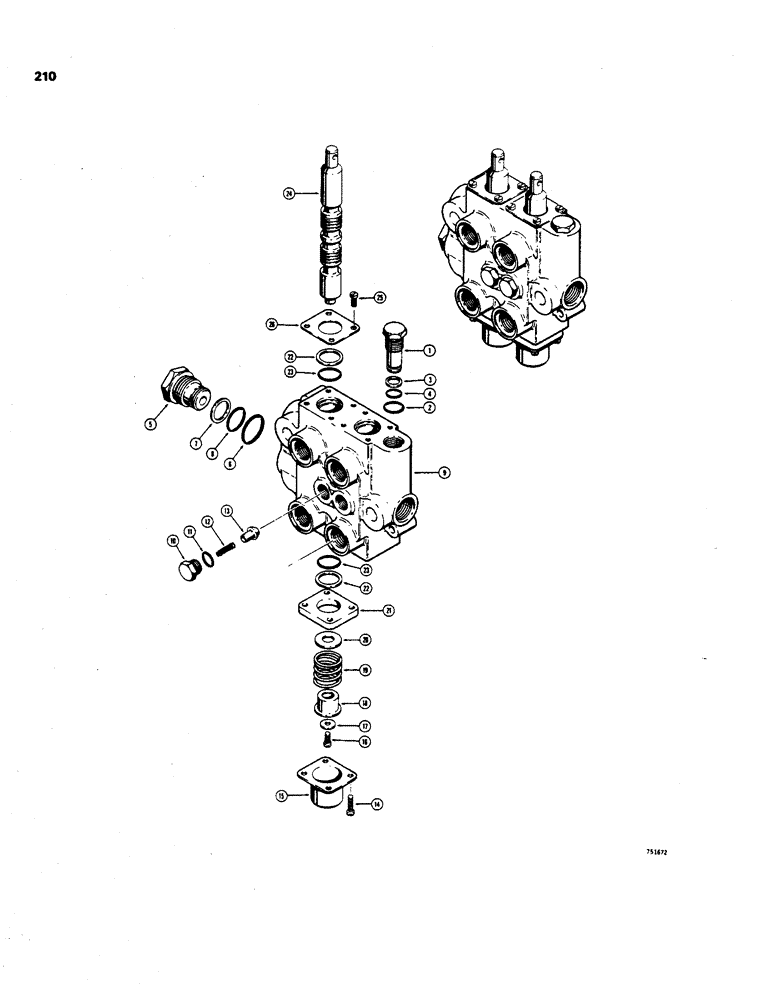

Схема запчастей Case 35 - (210) - D50420 CROSS STABILIZER CONTROL VALVE

Артикул

Название

Примечание

Количество

D50420

VALVE

ASSEMBLY - stabilizer control, Cross no. BA211AAD2EF1, Includes: Ref. 1 - 26

1шт.

1

D54593

PLUG

- relief

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, outer

1шт.

3

D56904

BACK-UP RING

- backup, O-ring seal

1шт.

4

A65918

O-RING,0.551" ID x 0.691" OD

- plug, inner

1шт.

5

D54844

PLUG

SLEEVE - power beyond

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- sleeve, outer

1шт.

7

D54800

O-RING

RING - backup, O-ring seal

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

10

D54588

PLUG

- load check

2шт.

12

D54587

VALVE SPRING

SPRING - load check

2шт.

13

D54589

VALVE

CHECK - load

2шт.

14

169-156

SCREW,Sl Fil Hd, 1/4" - 20 x 3/4"

- machine, 1/4" - 20 NC x 3/4"

8шт.

15

D54582

CYLINDER END CAP

CAP - spool end

2шт.

16

169-155

SCREW,Sl Fil Hd, 1/4" - 20 x 1/2"

- machine, 1/4" - 20 NC x 1/2"

2шт.

17

195-102

WASHER,1/4"

- flat, , zinc plated 1/4"

2шт.

18

D54581

COLLAR CLAMP

COLLAR - spring retaining

2шт.

19

D54583

SPACER

SPRING - centering, spool

2шт.

20

195-2200

WASHER

- plain

2шт.

21

D54583

SPACER

- spool cap

2шт.

22

D54585

WASHER

- special, seal retaining

4шт.

23

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - spool

4шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

25

169-155

SCREW,Sl Fil Hd, 1/4" - 20 x 1/2"

- machine, 1/4" - 20 NC x 1/2"

8шт.

26

D54584

STOP

PLATE - retaining, seal

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

2шт.

Выбрано товаров: 26
