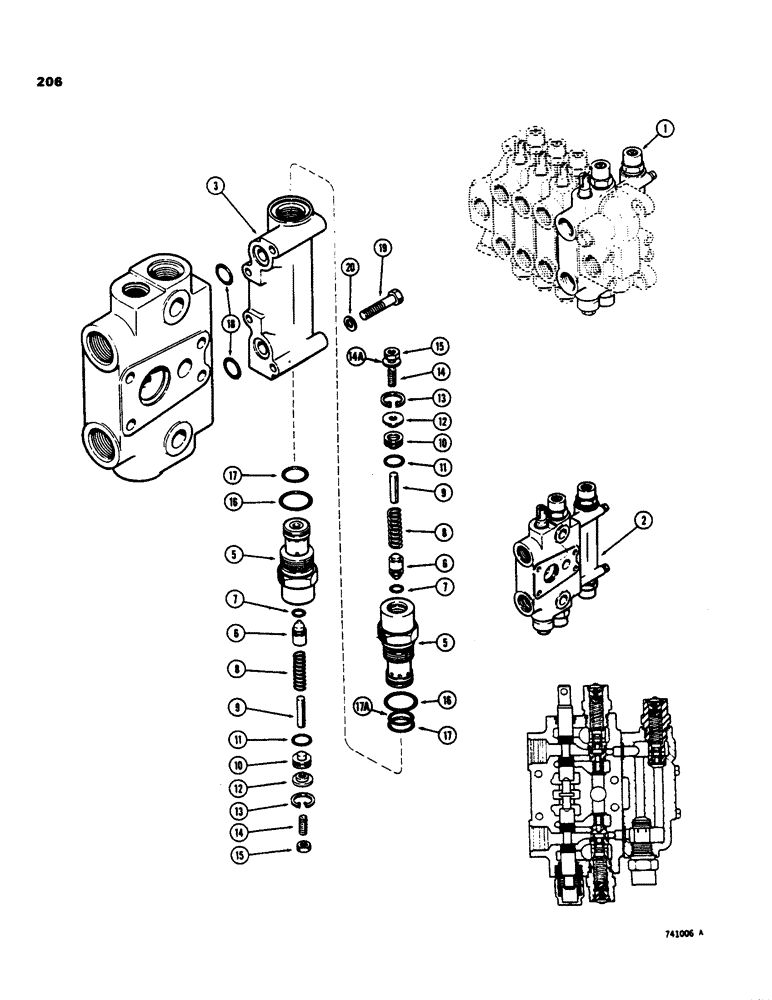

Запчасти Case 35 (206) - G33094 CROSSOVER RELIEF VALVE

1

G33072

LOCK VALVE

VALVE SECTION ASSEMBLY - swing, see Figure 202, Includes: Ref. 2 - 20

1шт.

2

G33094

HOUSING

ASSEMBLY - crossover relief valve, Includes: Ref. 3 - 20

1шт.

3

G33095

MANIFOLD

MAINFOLD - housing body

1шт.

4

G33096

LOCK VALVE

VALVE ASSEMBLY - relief, 1800 psi, not shown, Includes: Ref. 5 - 17A

2шт.

5

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

6

33089

POPPET - relief valve

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

7

G102844

O-RING

- poppet

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

8

G33090

SPRING

- relief valve

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

9

G33241

PIN

- stop, relief valve

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

10

G33091

PISTON

- relief valve

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

11

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

12

G33092

RETAINER

- relief valve

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

14

G102782

SET SCREW,1/4" - 20 x 1"

- set, piston adjusting, 1/4" - 20 NC x 3/4"

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

14a

G102871

WASHER - special, if used

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

15

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex, lock, 1/4" - 20 NC

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

17

G100959

O-RING,0.744" ID x 0.879" OD

- small

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

17a

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used

1шт.

Part of service for G33096 Kit P/N G34862

1шт.

18

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- housing to valve

2шт.

Part of service for G33096 Kit P/N G34862

1шт.

19

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16" - 18 NC x 3-1/4"

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

G34862

VALVE

KIT - service for G33096, Includes: Refs. 5 - 18

1шт.
