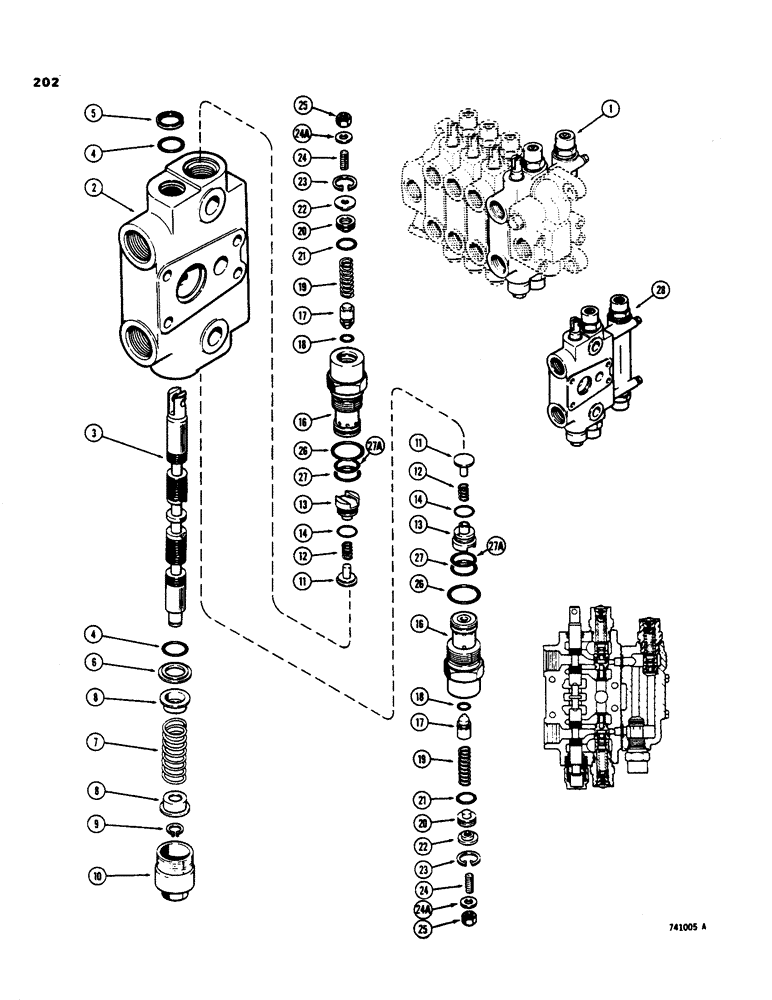

Запчасти Case 35 (202) - G33071 BACKHOE CONTROL VALVE, G33072 SWING SECTION

1

G33072

LOCK VALVE

VALVE SECTION ASSEMBLY - swing section, Includes: Ref. 2 - 27A

1шт.

2

G33073

BODY - swing valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - swing valve

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool

1шт.

6

G33803

RETAINER

- O-ring

1шт.

7

G34663

CYLINDER

SPRING - spool centering

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, #47, Ext

1шт.

10

G33080

CAP

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check

2шт.

12

G33573

SPRING

- load check

2шт.

13

G33084

PLUG

- load check

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

15

G34043

KIT

VALVE ASSEMBLY - relief, Includes: Ref. 16 - 27A

2шт.

16

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

17

G33089

VALVE

POPPET - relief valve

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

18

G102844

O-RING

- poppet

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

19

G33090

SPRING

- relief valve

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

20

G33091

PISTON

- relief valve

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

21

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

22

G33092

RETAINER

- relief valve

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

23

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

24

G102782

SET SCREW,1/4" - 20 x 1"

- set, piston adjusting, 1/4" - 20 NC x 3/4"

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

24a

G102781

WASHER

- special, if used

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

25

25-144

JAM NUT,Jam, 1/4"-20, G5

- hex,lock, 1/4" - 20 NC

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

27

G33093

O-RING

- small

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

27a

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, if used

1шт.

Part of service for G34043 Kit P/N G34862

1шт.

28

G33094

HOUSING

ASSEMBLY - secondary relief valve, see Figure 206

1шт.

Part of service for G34043 P/N G34862

1шт.

G34862

VALVE

KIT - service for G34043, Includes: Refs. 16 - 28

1шт.
