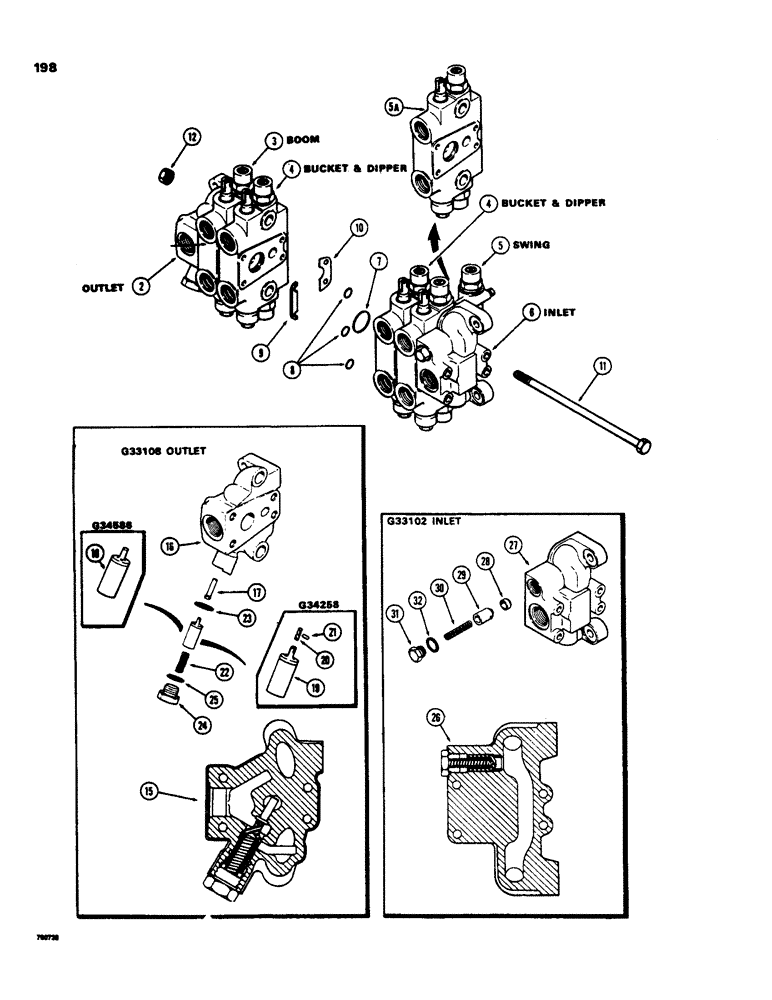

Запчасти Case 35 (198) - CASE BACKHOE CONTROL VALVES

1

G33071

VALVE

ASSEMBLY - control, not shown, assembled, order G100244, Includes: Ref. 2 - 14

1шт.

1

G34897

VALVE

ASSEMBLY - control, not shown, assembled, order G100244, Includes: Ref. 2 - 14

1шт.

1

G10244

VALVE ASSEMBLY - control, not shown assembled, Includes: Ref. 2 - 14

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - see reference no. 16

1шт.

3

REF

INSTRUCTION

BOOM SECTION - see Figure 208

1шт.

4

REF

INSTRUCTION

BUCKET AND DIPPER SECTION - see Figure 200

2шт.

5

G33072

LOCK VALVE

SWING SECTION - G33071 valve only, see Figure 202

1шт.

5a

REF

INSTRUCTION

SWING SECTION - G34897 or G100244 valve only, see Figure 204

1шт.

6

D33102

INLET SECTION - see reference no. 26

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, 1-7/16" x 1-5/8" x 7/64"

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, 15/16" x 1-1/8" x 7/64"

15шт.

9

G33964

SHIM,.002" Thk

Section, Top .002" Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Bottom (.002") 0.051mm Thk

5шт.

11

G33114

BOLT

- tie, valve sections, 3/8" x 13-3/8" NC hex

4шт.

12

25-106

NUT,3/8"-16, G5

- tie rod, 3/8" NC hex

4шт.

13

RESERVED

1шт.

14

RESERVED

1шт.

15

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, Includes: Ref. 16 - 25

1шт.

16

NSS

NOT SOLD SEPARAT

MANIFOLD - outlet body

1шт.

17

G33110

PISTON

- regeneration sensing

1шт.

18

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration, 1st used valve serial no. 1215, replaces spools G34258 and G33111

1шт.

G34258

SPOOL

ASSEMBLY - regeneration, order G34586, used prior to valve serial no. 1215, Includes: Ref. 19 - 21

1шт.

19

G33111

SPOOL

- regeneration, order G34586

1шт.

20

G34259

PIN - orifice

1шт.

21

138-6

LOCK PIN,1/16" x 1/2", Slotted

Pin, , orifice pin retaining 1/16" x 1/2", Slotted

1шт.

22

G33112

SPRING

- spool, 2-11/64" free length

1шт.

23

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- mainfold, 7/8" x 1-1/16" x 3/32"

1шт.

24

G33113

PLUG

- spool retaining, order 218-5213 plug

1шт.

25

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug, 1-3/64" x 1-19/64" x 1/8"

1шт.

26

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, Includes: Ref. 27 - 32

1шт.

27

NSS

NOT SOLD SEPARAT

MANIFOLD - body, G33102 inlet section

1шт.

28

G33104

SEAT

- check valve poppet, G33102 inlet section

1шт.

29

G33105

VALVE POPPET

POPPET - check valve, G33102 inlet section

1шт.

30

G33106

SPRING

- check valve, 2-3/64" free length, G33102 inlet section

1шт.

31

A39586

PLUG

- check valve, G33102 inlet section

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 3/4" x 15/16" x 3/32", G33102 inlet section

1шт.
