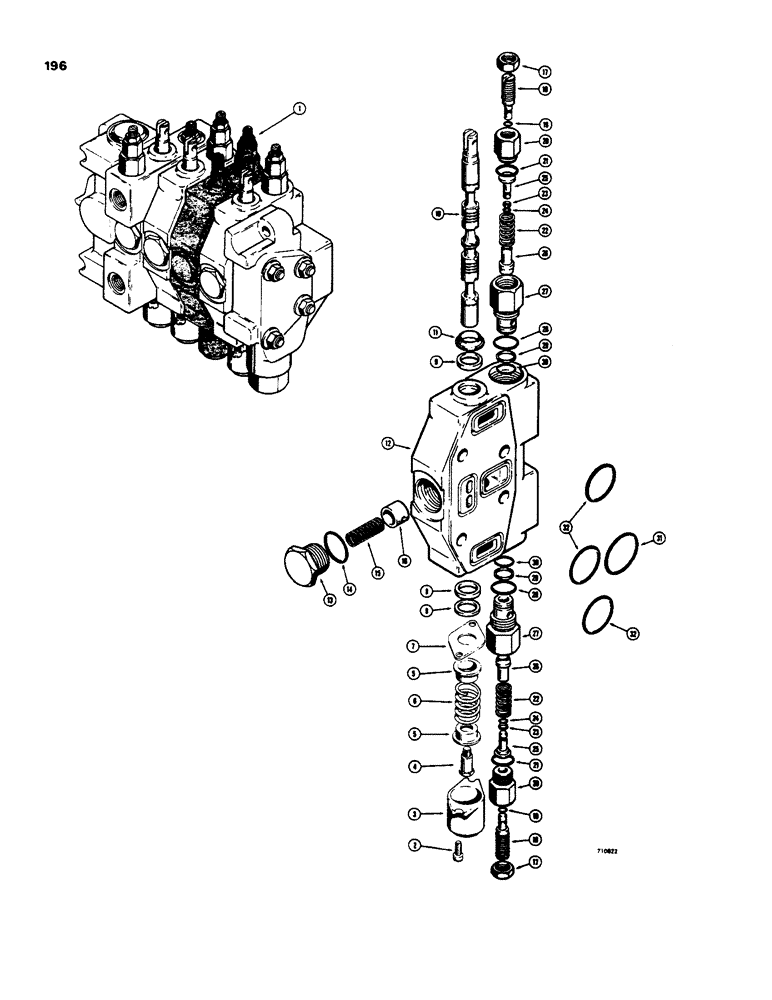

Запчасти Case 35 (196) - COMMERCIAL BACKHOE VALVE, D54599 BACKHOE DIPPER SECTION

1

D54599

KNIFE SECTION

CROWD SECTION - backhoe control valve, Includes: Ref. 2 - 32

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

- machine, 5/16" - NC x 3/4"

2шт.

3

D32221

COVER

CAP - spool, section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper, special

1шт.

5

D32130

GUIDE

- spring

2шт.

6

D54846

VALVE SPRING

SPRING - centering

1шт.

7

D54805

PLATE ASSY.

PLATE - retaining

1шт.

8

D26829

RING

- backup, quad ring seal

1шт.

9

D36830

RING

SEAL - quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - crowd section

1шт.

11

D54804

WIPER SEAL

WIPER - valve spool

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - crowd section

1шт.

13

39007

CAP

- check valve

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- cap

1шт.

15

R15308

VALVE SPRING

SPRING - check valve

1шт.

16

D45694

SPOOL

POPPET - check valve

1шт.

D54842

FILTER

CARTRIDGE - relief, secondary, Includes: Ref. 17 - 30

2шт.

17

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2" - 20 NF

1шт.

18

D54856

SCREW

- adjusting, special

1шт.

19

A52174

SHIM,1.7mm Thk

O-RING - adjusting screw

1шт.

20

D54857

CYLINDER END CAP

CAP - cartridge

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- cap

1шт.

22

D54858

VALVE SPRING

SPRING - relief valve

1шт.

23

D54860

RING

- backup, O-ring seal

1шт.

24

A51274

O-RING,0.145" ID x 0.285" OD

1шт.

25

D54855

PLUNGER

- displacement

1шт.

26

D54854

SEAT

- floating

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

28

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- cartridge, outer

1шт.

29

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, O-ring seal

1шт.

30

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

cartridge, inner

1шт.

31

L32985

GASKET

O-RING - section, large

1шт.

32

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- section, small

3шт.
