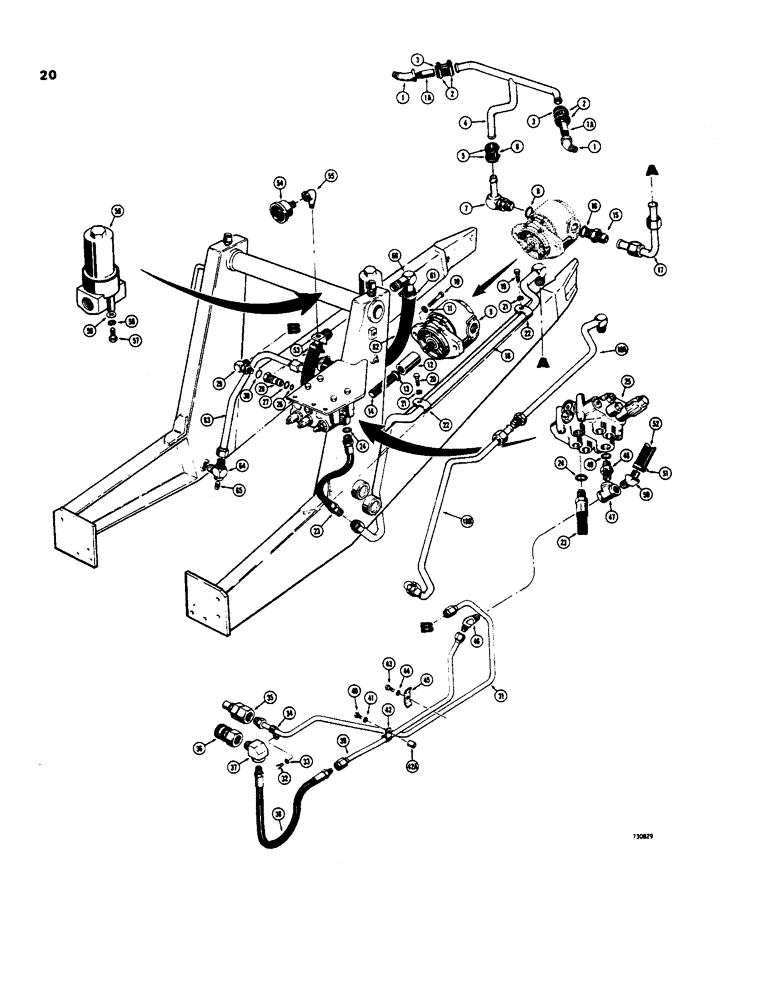

Запчасти Case 35 (020) - PRIMARY HYDS, USED ON MDLS W/ HYDROSTATIC DRIVE BEF LOADER SN 5228454

1

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

ELBOW - street, 45 degree

2шт.

1a

D33363

FITTING

STEM - hose, straight

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

4

D54970

TUBE - reservoir to pump, tee type

1шт.

5

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

6

18361

HOSE,1.25" ID x 5.00", SAE 100R3

- low pressure

1шт.

7

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW, 90°, 1 1/4" Hose x 1 5/8"-12 ORB Beaded, Includes Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

PUMP - hydraulic, see Figure 168

1шт.

10

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

D31108

SPLINED COUPLING

COUPLING - female, pump to pump drive shaft, Includes: Ref. 13

1шт.

13

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , coupling 0.75", Int, #75

1шт.

14

D64311

SHAFT

- pump drive, see Figure 154 for units with pump alignment

1шт.

15

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Straight, Male, Incl. Ref. 16 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

D52705

TUBE - pump to valve, at valve

1шт.

18

D52658

TUBE

- pump to valve, intermediate, service with 1-D55627 and 1-D55629 tube

1шт.

18a

D55627

TUBE

- pump to valve, intermediate, front section

1шт.

18b

D55629

TUBE - pump to valve, intermediate, front section

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

4шт.

23

D54118

HOSE

- pump ot valve, at valve, 26" (660 mm) long, Includes: Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

REF

INSTRUCTION

VALVE - loader control, see Figure 172 for proper valve

1шт.

D61251

FITTING

CONNECTOR ASSEMBLY - power beyond, Includes: Ref. 26 - 28

1шт.

26

L32680

RING

O-RING - small

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

28

NSS

NOT SOLD SEPARAT

CONNECTOR - power beyond

1шт.

29

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes Ref. 30 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

D58495

TUBE

- valve to crossover hose

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

1шт.

35

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male half, parts list Figure 162

1шт.

36

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female half, parts list Figure 162

1шт.

37

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

38

D49118

HOSE

- crossover, 33" (838 mm) long

1шт.

39

D60654

TUBE

- crossover, Serial Range: hose-valve

1шт.

40

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

42

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- tube

1шт.

42a

L42723

SPACER

- tube clamp

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

1шт.

45

D41160

CLAMP

- tube

1шт.

46

218-547

ELBOW,45 Degree, 1 5/16"-12 37 Degree x 3/4"-14, NPTF

- street, 45 degree

1шт.

47

221-425

FITTING,3/4" NPT

TEE - female

1шт.

48

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

CONNECTOR - male, straight, Includes: Ref. 49

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

50

217-188

FITTING,45 Degree Elbow, 1" Hose Barb x 3/4" Male NPTF

STEM - hose, 45 degree

1шт.

51

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

52

D28238

HOSE

- low pressure, to oil filter

1шт.

53

D54212

STEM

- hose, 45 degree

1шт.

54

D29650

ELECTRICAL GAUGE

GAUGE - filter condition indicator

1шт.

55

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

56

D43567

FILTER ASSY

ASSEMBLY - hydraulic oil, parts list Figure 162

1шт.

57

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

58

92-8

LOCK WASHER,1/2"

2шт.

59

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

60

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM - hose, 90 degree

1шт.

61

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

62

D28238

HOSE

- low pressure, Serial Range: filter-reservoir

1шт.

63

D38627

TUBE

- crossover, at reservoir

1шт.

64

D28485

ELBOW UNION

TEE - at reservoir

2шт.

65

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head, 1/2" NPT, drain

2шт.
