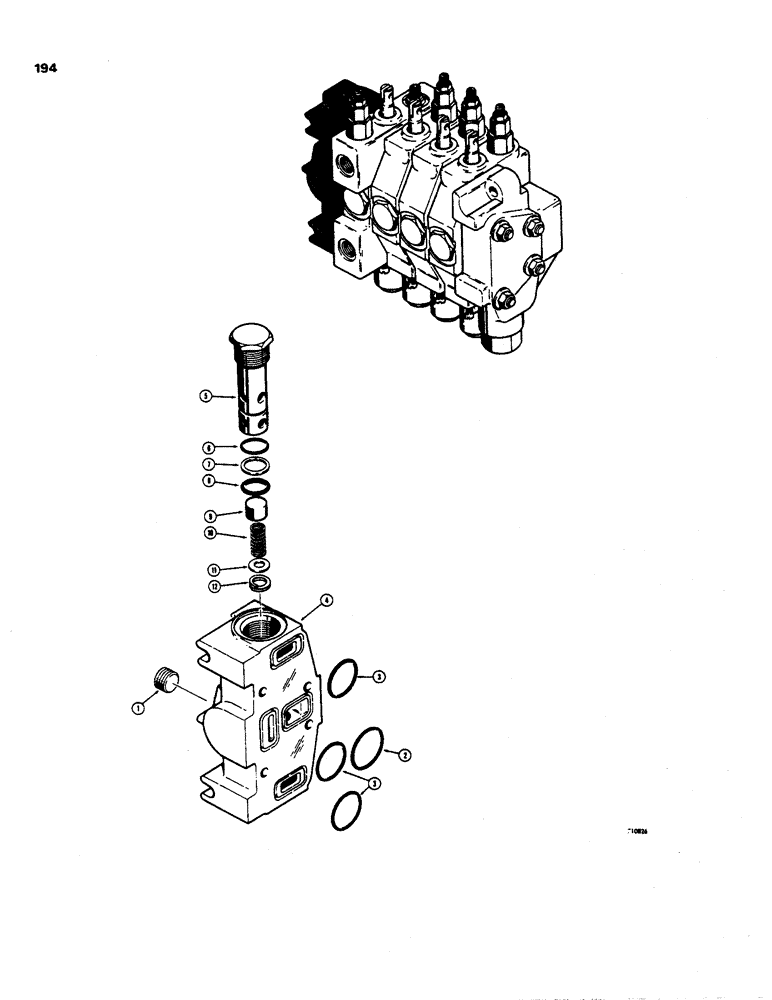

Запчасти Case 35 (194) - COMMERCIAL BACKHOE CNTRL VALVE, D54597 BACKHOE INLET SECTION

D54597

VALVE

INLET SECTION - backhoe control valve, Includes: Ref. 1 - 12

1шт.

1

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, hex socket head, 3/4" NPT

1шт.

2

D32127

O-RING

- 2" OD

1шт.

3

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- 1-3/4" OD

3шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - inlet section

1шт.

D54773

X

VALVE ASSEMBLY - check, Includes: Ref. 5 - 12

1шт.

5

D40891

SPRING

CARTRIDGE - check valve

1шт.

6

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- cartridge, outer

1шт.

7

T38233

BACK-UP RING,0.891" ID x 1.127" OD x 0.05"

- backup, inner O-ring seal

1шт.

8

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- cartridge, inner

1шт.

9

D40820

POPPET - check valve

1шт.

10

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

11

D40821

RETAINER

- spring

1шт.

12

R15512

SNAP RING,#87, .929", Int, Spiral

RING - spirolox

1шт.
