Запчасти Case 35 (190) - D56102 BOOM LOCKOUT VALVE

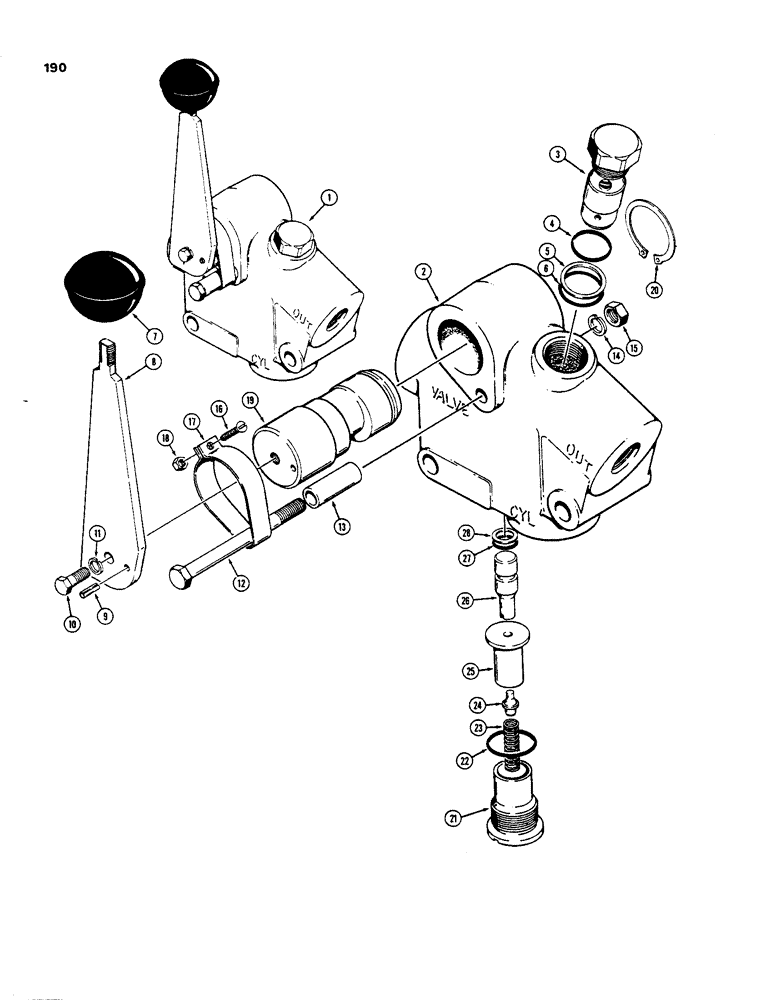

Схема запчастей Case 35 - (190) - D56102 BOOM LOCKOUT VALVE

Артикул

Название

Примечание

Количество

1

D56102

VALVE

- boom lockout, Cessna No. 39013-CAA, Includes: Ref. 2 - 28

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

D56470

VALVE

ASSEMBLY - relief, Includes: Ref. 4

1шт.

4

F9857

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

5

D564969

RING - backup

1шт.

6

A7464

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- valve, outer

1шт.

7

D56472

KNOB

- control, handle

1шт.

8

D56458

HANDLE

- control

1шт.

9

D56881

PIN

- dowel, handle

1шт.

10

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

13-558

BOLT,Hex, 5/16" - 18 x 3-5/8", Gr 5

- hex, 5/16" -18 NC x 3-5/8"

1шт.

13

D56460

BUSHING

- spacer

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex, lock, 5/16" - 18 NC

1шт.

16

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- machine, round head, no. 6-32 NC x 3/4"

1шт.

17

D56467

CLAMP

CLIP - shaft reataining

1шт.

18

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

1шт.

19

D56465

SHAFT

- lock control

1шт.

20

F62020

SNAP RING,#125, Ext

Ring, Snap, , shaft #125, Ext

1шт.

21

D56461

PLUG

- plunger retianer

1шт.

22

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- plug

1шт.

23

D56462

SPRING

- poppet

1шт.

24

D56461

PLUG

POPPET - valve

1шт.

25

D56463

PLUNGER

SEAT - poppet

1шт.

26

D56466

PLUNGER

- valve

1шт.

27

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- plunger

1шт.

28

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- backup, seal

1шт.

Выбрано товаров: 28
