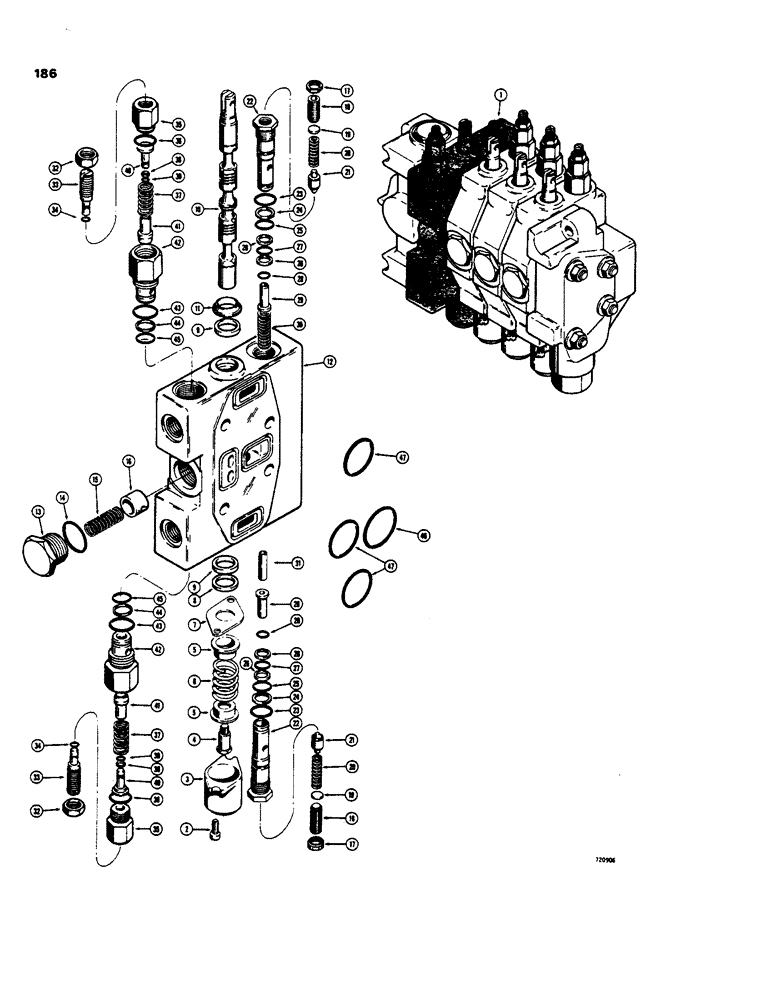

Запчасти Case 35 (186) - COMMERCIAL BACKHOE CONTROL VALVE, D54598 BACKHOE SWING SECTION

1

D54598

VALVE

SWING SECTION - backhoe control valve, Includes: Ref. 2 - 45

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

- machine, 5/16" - 18 NC x 3/4"

2шт.

3

D32221

COVER

CAP - swing section

1шт.

4

D32128

BOLT (SPREADER)

BOLT - stripper, special

1шт.

5

D32130

GUIDE

- spring

2шт.

6

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

7

D54805

PLATE ASSY.

PLATE - retaining

1шт.

8

D26826

COMPRESSION SPRING

RING- backup

1шт.

9

D36830

RING

SEAL - quad ring

2шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - swing section

1шт.

11

D54804

WIPER SEAL

- spool

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - swing section

1шт.

13

39007

CAP

- check valve

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- cap

1шт.

15

R15308

VALVE SPRING

SPRING - check valve

1шт.

16

D46594

POPPET - check valve

1шт.

D56347

CARTRIDGE

ASSEMBLY - relief, crossover, Includes: Ref. 17 - 29

2шт.

17

D54853

LOCK NUT

NUT - hex, lock, 1/2" - 20 NF, special

1шт.

18

83-816

SET SCREW,Hex Soc, 1/2"-13 x 1"

SCREW - adjusting, 1/2" - 20 NF x 1"

1шт.

19

D54852

WASHER

SLUG - steel, spring rest

1шт.

20

D26876

VALVE SPRING

SPRING - cartridge

1шт.

21

D56351

SEAT

- floating

1шт.

22

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief, crossover

1шт.

24

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup, O-ring seal

1шт.

25

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- 5/8" OD x 1/2" ID

1шт.

26

D54861

BACK-UP RING

- backup, O-ring seal

2шт.

27

D31412

O-RING

9/16" OD x 7/16" ID

1шт.

28

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

- 1/2" OD x 3/8" ID

1шт.

29

D53650

TUBE

POPPET - cartridge

1шт.

30

D56348

VALVE SPRING

SPRING - poppet

1шт.

31

D56349

TUBE

SPACER - poppet spring

1шт.

D54842

FILTER

CARTRIDGE ASSEMBLY - relief, secondary, Includes: Ref. 32 - 45

2шт.

32

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex, lock, 1/2" - 20NF

1шт.

33

D54856

SCREW

- adjusting, special

1шт.

34

A51274

O-RING,0.145" ID x 0.285" OD

- adjusting screw

1шт.

35

D5485

CAP- cartridge

1шт.

37

D5858

SPRING - relief valve

1шт.

30

D54860

RING

- backup, O-ring seal

1шт.

39

A51274

O-RING,0.145" ID x 0.285" OD

1шт.

40

D54855

PLUNGER

- displacement

1шт.

41

D54854

SEAT

- floating

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - cartridge

1шт.

43

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- cartridge, outer

1шт.

44

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- backup, O-ring seal

1шт.

45

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- cartridge

1шт.

46

D32985

O-RING - section, large

1шт.

47

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

- section, small

3шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- cap

1шт.
