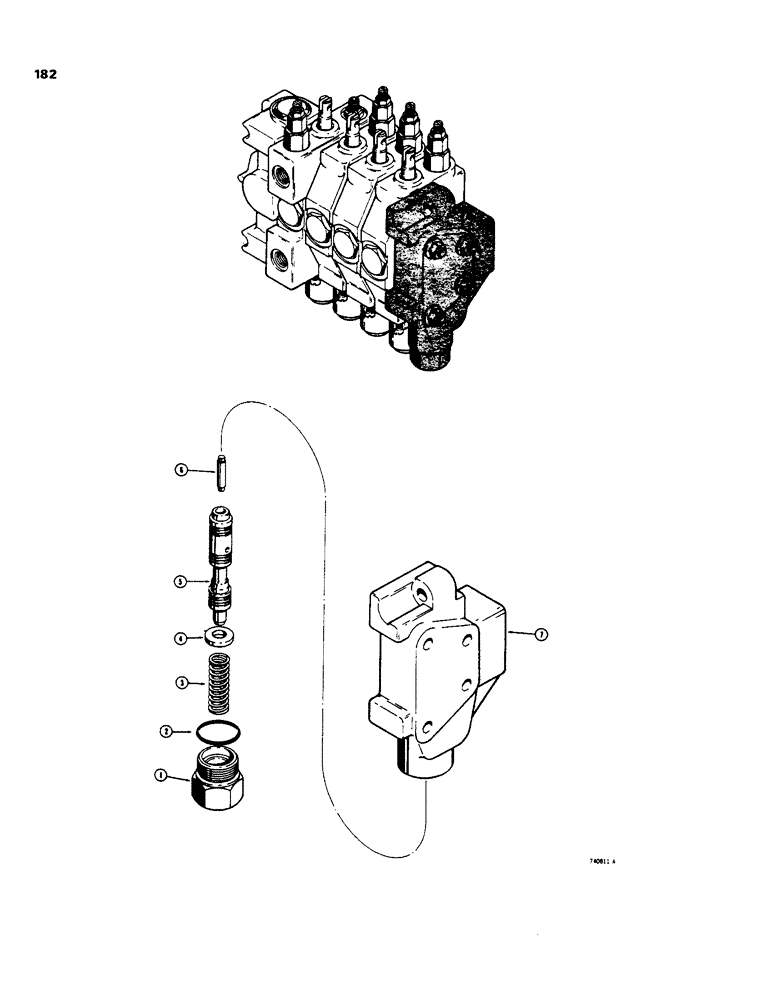

Запчасти Case 35 (182) - COMMERCIAL BACKHOE CNTRL VALVE, D54601 BACKHOE OUTLET SECTION

D54601

VALVE

OUTLET SECTION - backhoe control valve, Includes: Ref. 1 - 7

1шт.

1

D54847

CYLINDER END CAP

CAP - regeneration spool port

1шт.

2

D54848

O-RING,0.864" ID x 1.004" OD

20-1, 70 Duro, 1.475" ID x .139" Thk, cap

1шт.

3

D54802

VALVE SPRING

SPRING - tension, regeneration spool

1шт.

4

D36807

SPACER

- spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - regeneration

1шт.

6

D54803

PLUNGER

- regeneration spool

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - outlet section

1шт.
