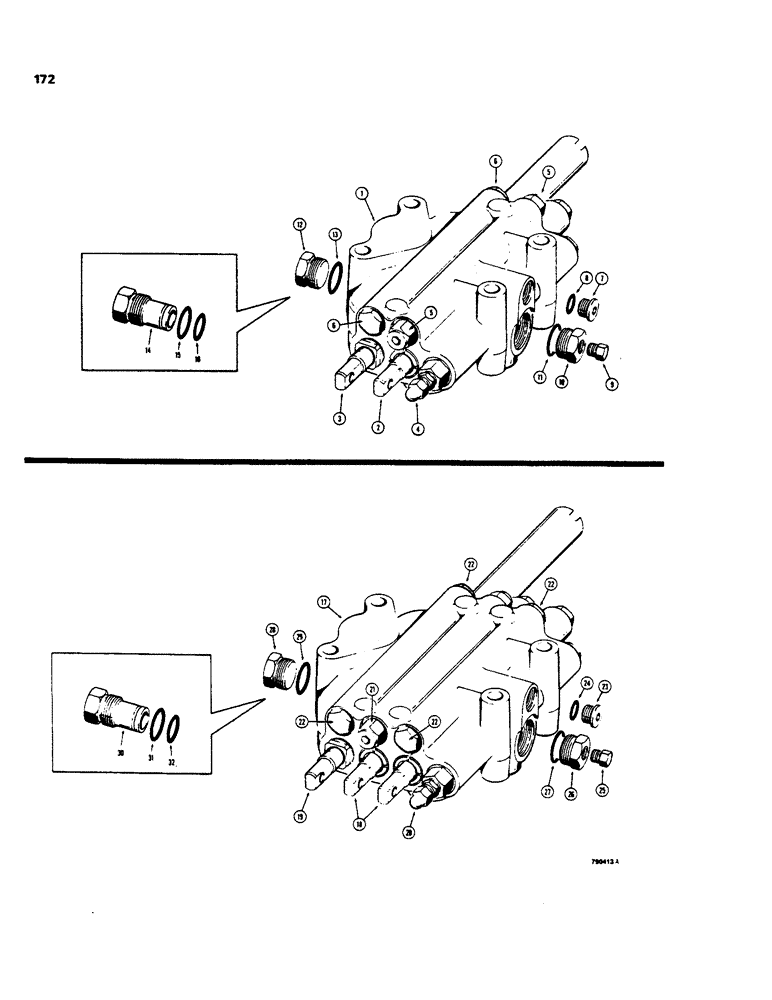

Запчасти Case 35 (172) - LOADER CNTRL VALVE - 2 SPOOL

1

D45040

VALVE

- loader tilt control, 2 spool, parker series VDP-22, Includes: Ref. 2 - 11

1шт.

2

D37050

SPOOL

- loader tilt, parts list Figure 174

1шт.

2

D37051

SPOOL

- loader tilt, parts list Figure 174

1шт.

2

D37052

SPOOL

- loader tilt, parts list Figure 174

1шт.

2

D37053

SPOOL

- loader tilt, parts list Figure 174

1шт.

3

D46024

SPOOL

- loader tift, parts list Figure 176

1шт.

3

D46025

SPOOL

- loader tift, parts list Figure 176

1шт.

3

N6592

VALVE

SPOOL - loader tift, parts list Figure 176

1шт.

3

S46027

SPOOL - loader lift, parts list Figure 176

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 174

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 178

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 178

2шт.

7

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 8 Hex Soc, 3/4"-16 ORB

1шт.

9

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, hex head, 1/4" NPT

1шт.

10

D38825

ADAPTER

- valve port, Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve port (Loader models only), Includes Ref. 13 Hex Hd, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

D89496

FITTING

CONNECTOR - power beyond, loader backhoe models only, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CONNECTOR - power beyond

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

16

L32680

RING

O-RING - small

1шт.

17

D52042

LOCK VALVE

VALVE - loader control, 3 spool, parker series VDP22-DDF, used with 4-in-1 Bucket only, Includes: Ref. 18 - 27

2шт.

18

D37050

SPOOL

- tilt and clam, parts list Figure 174, loader control valve-3

2шт.

18

D37051

SPOOL

- tilt and clam, parts list Figure 174, loader control valve-3

2шт.

18

D37052

SPOOL

- tilt and clam, parts list Figure 174, loader control valve-3

2шт.

18

D37053

SPOOL

- tilt and clam, parts list Figure 174, loader control valve-3

2шт.

19

D46024

SPOOL

- loader lift, parts list Figure 176, control valve-3

1шт.

19

D46025

SPOOL

- loader lift, parts list Figure 176, control valve-3

1шт.

19

D46027

SPOOL

- loader lift, parts list Figure 176, control valve-3

1шт.

19

D46026

PLUG

SPOOL - loader lift, parts list Figure 176, control valve-3

1шт.

20

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list Figure 174, loader control -3 spool

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list Figure 178, loader control -3 spool

2шт.

22

NSS

NOT SOLD SEPARAT

VALVE - check, parts list Figure 178, loader control -3 spool

4шт.

23

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, loader control valve-3 spool, Incl Ref 24 Hex Soc, 3/4"-16 ORB

1шт.

25

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, hed 1/4" NPT, loader control valve-3 spool

1шт.

26

D38825

ADAPTER

- valve port, loader control valve-3 spool, Includes: Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Loader control valve-3 spool

1шт.

28

273916

PLUG,Hex, 1-5/16" - 12 ORB

Valve port (Loader control 3 spool), Includes Ref. 29 Hex Hd, 1 5/16"-12 ORB

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O- RING, loader control valve-3 spool

1шт.

D89496

FITTING

CONNECTOR - power beyond, loader backhoe models only, loader control valve-3 spool, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

CONNECTOR - power beyond, loader control valve-3 spool 02

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large, loader control valve-3 spool

1шт.

32

L32680

RING

O-RING - small, loader control valve-3 spool

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

loader control valve-3 spool

1шт.
