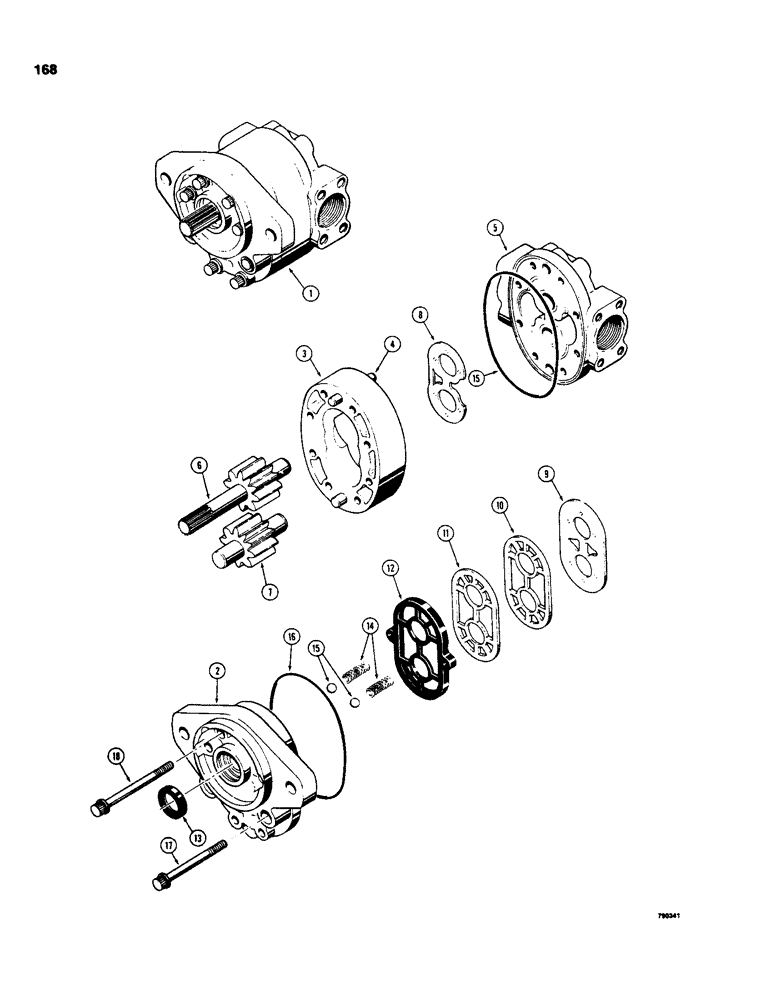

Запчасти Case 35 (168) - CESSNA HYDRAULIC PUMP

1

D48950

PUMP

ASSEMBLY - hydraulic, complete, Cessna no. 24505-LAD for service order D53690, Includes: Ref. 2 - 18

1шт.

D53690R

REMAN-HYD PUMP

35, Reman for New P/N D48950

1шт.

D53690C

CORE-HYDRAULIC PUMP

Return Number

1шт.

For identification see name plate on pump. Check make and model number of pump before ordering parts. D53690 Service Replacement Pump can be either a Cessna or TRW Pump as shown on this Fig. and Fig. 170

1шт.

2

D48879

COVER

- drive shaft end

1шт.

3

D56471

HOUSING

- gear

1шт.

4

D48842

PIN - dowel

1шт.

5

D48883

COVER

- port end

1шт.

D48881

GEAR

SET - drive and driven, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - driven

1шт.

D59656

GASKET KIT

KIT - seal, Includes: Ref. 8 - 16

1шт.

8

A45358

PLATE

- thrust

1шт.

9

H335331

DIAPHRAGM

- PUMP

1шт.

10

H260935

GASKET

- protector

1шт.

11

H260927

GASKET

- backup

1шт.

12

D48888

SEAL

- diaphragm

1шт.

13

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

14

D31403

SPRING

- ball retaining

2шт.

15

221-321

NIPPLE, LUBE

BALL - steel

2шт.

16

H756221

O-RING,4.987" ID x 5.193" OD

- pump covers

2шт.

17

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry head, 3/8" - 16 NC x 3-1/2"

4шт.

18

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3-3/4"

4шт.
